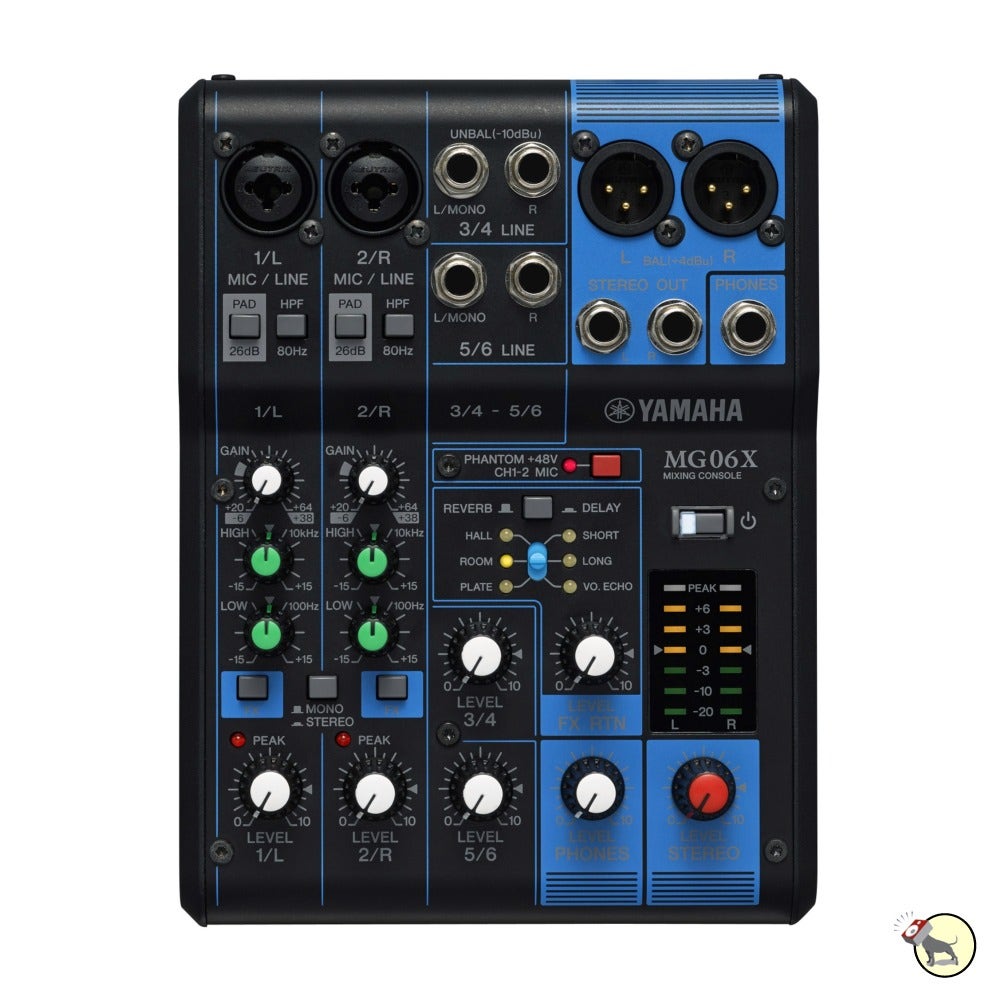

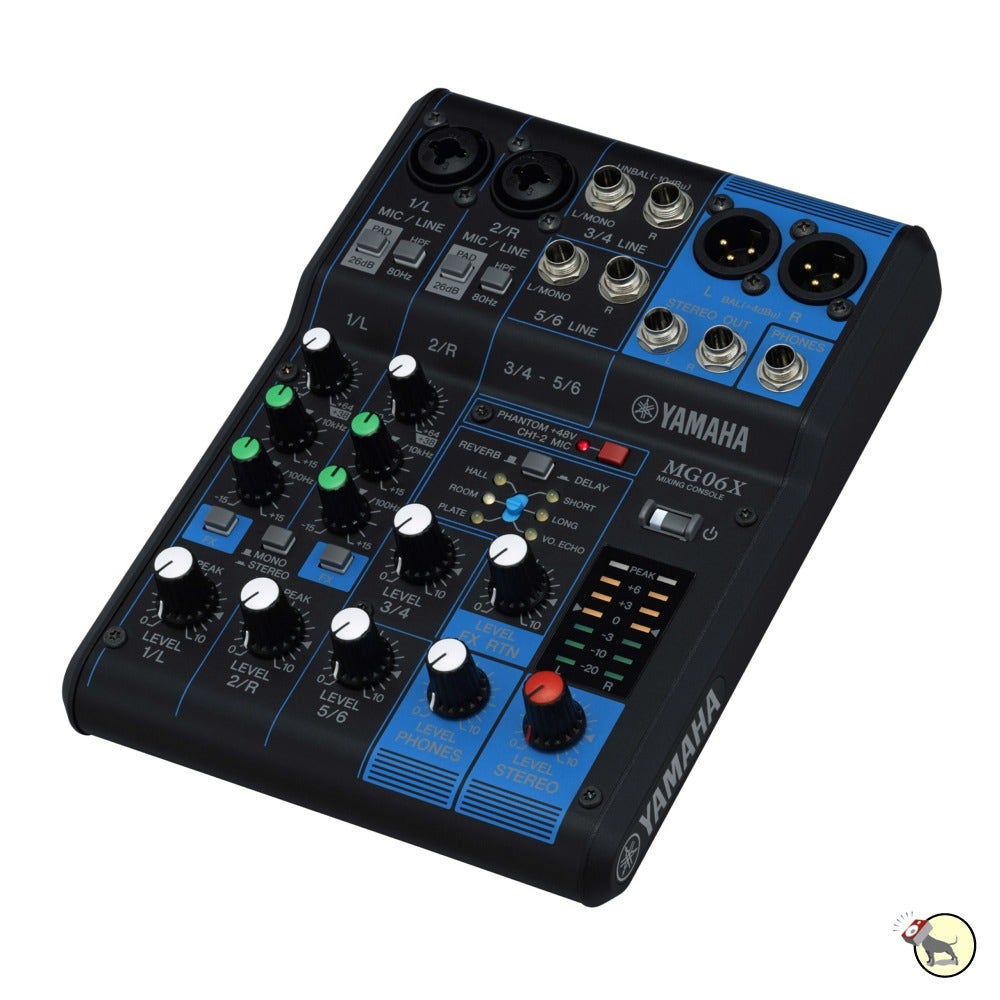

New Yamaha MG06X 6-Channel Mixer (C-STOCK)

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

Overview

• Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
• 1 Stereo Bus
• “D-PRE” mic preamps with an inverted Darlington circuit
• High-grade effects: SPX with 6 programs
• XLR balanced outputs
• PAD switch on mono inputs
• +48V phantom power
• Metal chassis

• Mixing capability
• On-board processors:SPX algorithm: 6 programs
• I/O
• Phantom power:+48 V
• Input Channels
• Mono[MIC/LINE]: 2
• Stereo[LINE]: 2
• Output Channels
• STEREO OUT: 2
• PHONES: 1
• Bus
• Stereo: 1
• Input Channel Function
• PAD:26 dB (Mono)
• HPF:80 Hz, 12 dB/oct (Mono)
• EQ HIGH:(Mono) Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
• EQ LOW:(Mono) Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
• PEAK LED:LED turns on when post EQ signal reaches 3 dB below clipping
• Level Meter:2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]

General

• Total harmonic distortion:0.01 % @ +8dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +18dBu (1kHz), GAIN knob: Min
• Frequency response:+0.5 dB/-0.5 dB (20 Hz to 20 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
• Hum & noise level
• Equivalent input noise:-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
• Residual output noise:-102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
• Crosstalk:-88 dB

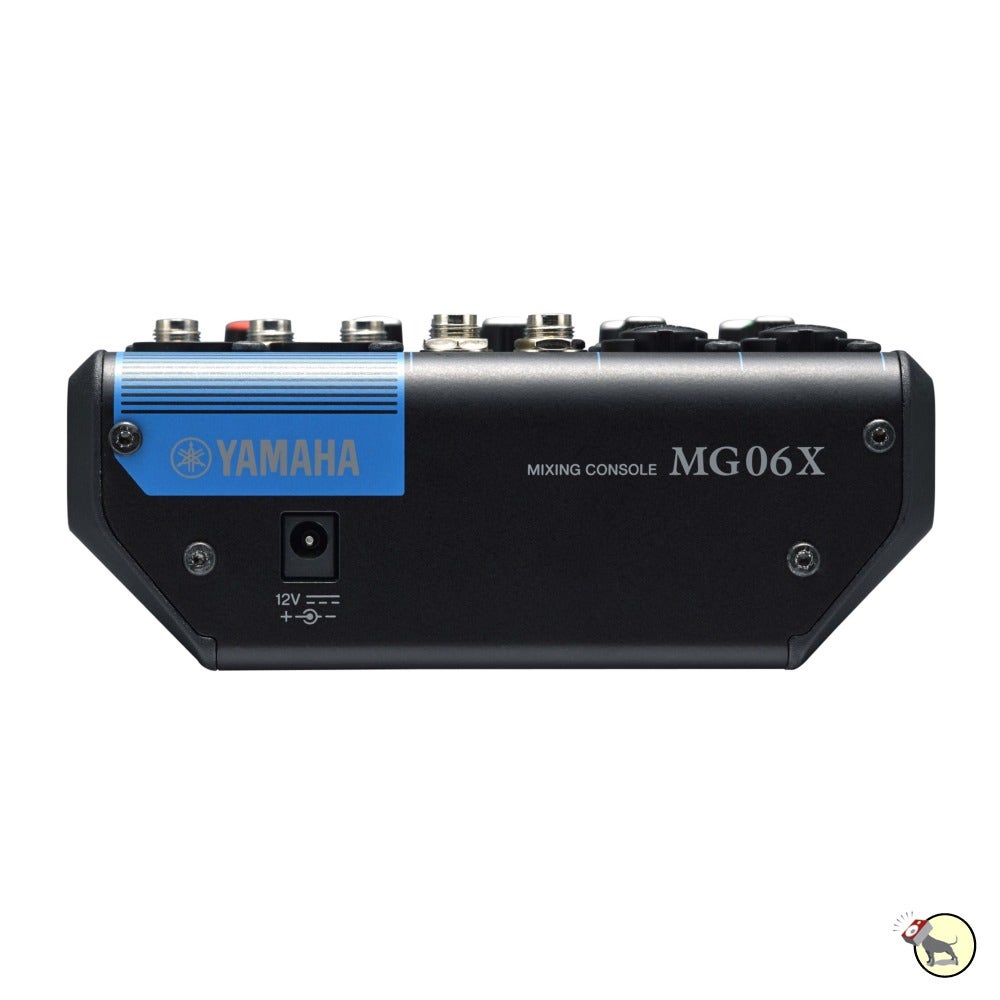

• Power requirements:PA-130 (DC12 V/1.0 A, Cable length = 1.8 m), 120 V, 60 Hz, MU18 (DC12 V/1.5 A, Cable length = 1.5 m), 100 V-240 V, 50 Hz/60 Hz or equivalent recommended by Yamaha
• Power consumption:12 W
• Dimensions
• W:149 mm (5.9")
• H:62 mm (2.4")
• D:202 mm (7.9")
• Net weight:0.9 kg (1.98 lbs.)
• Accessories:Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A
• Others:Operating Temperature: 0 to +40˚C
