Sold By
Pitbull Audio

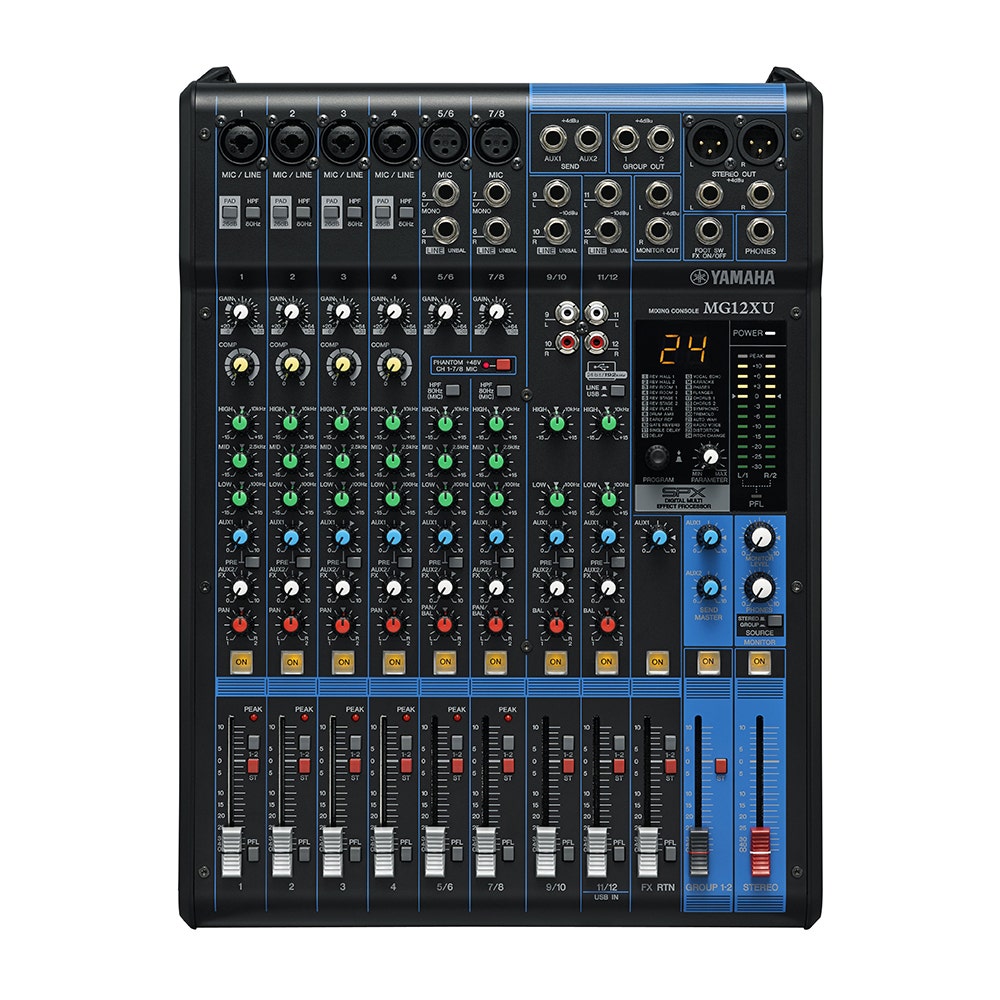

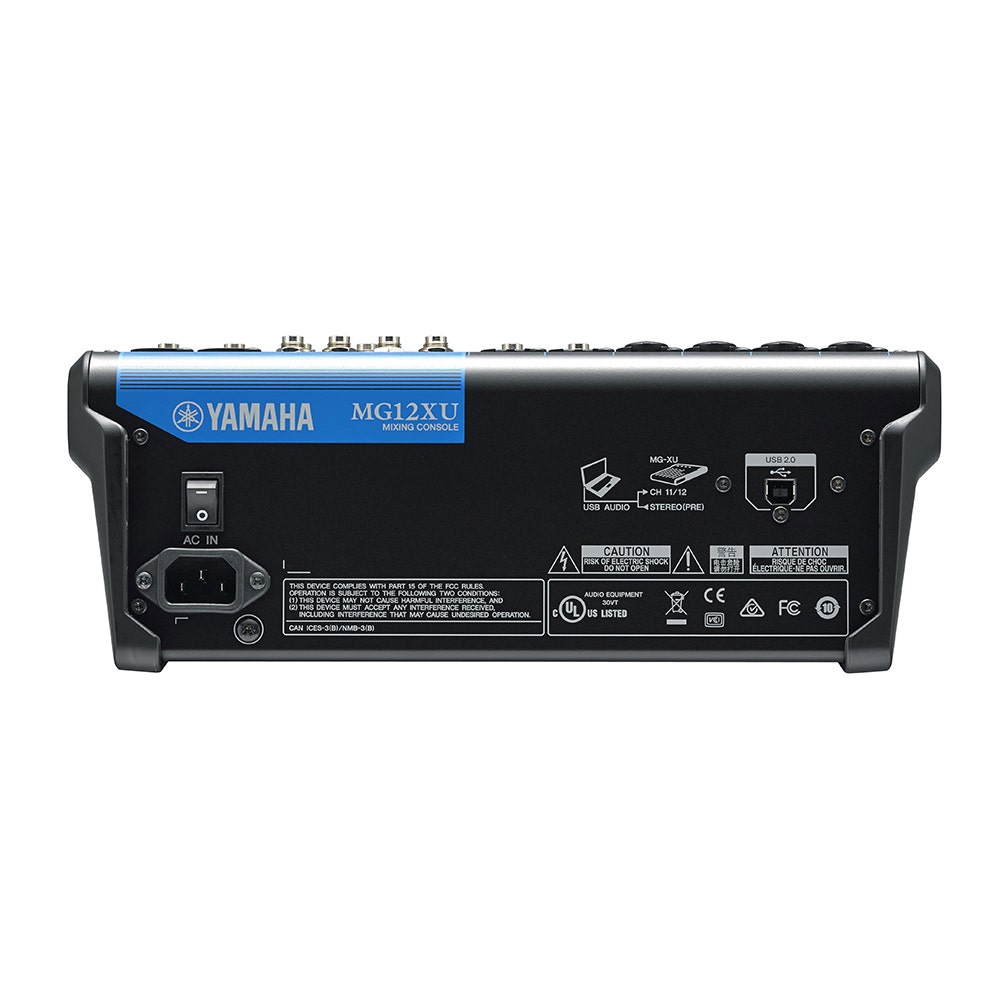

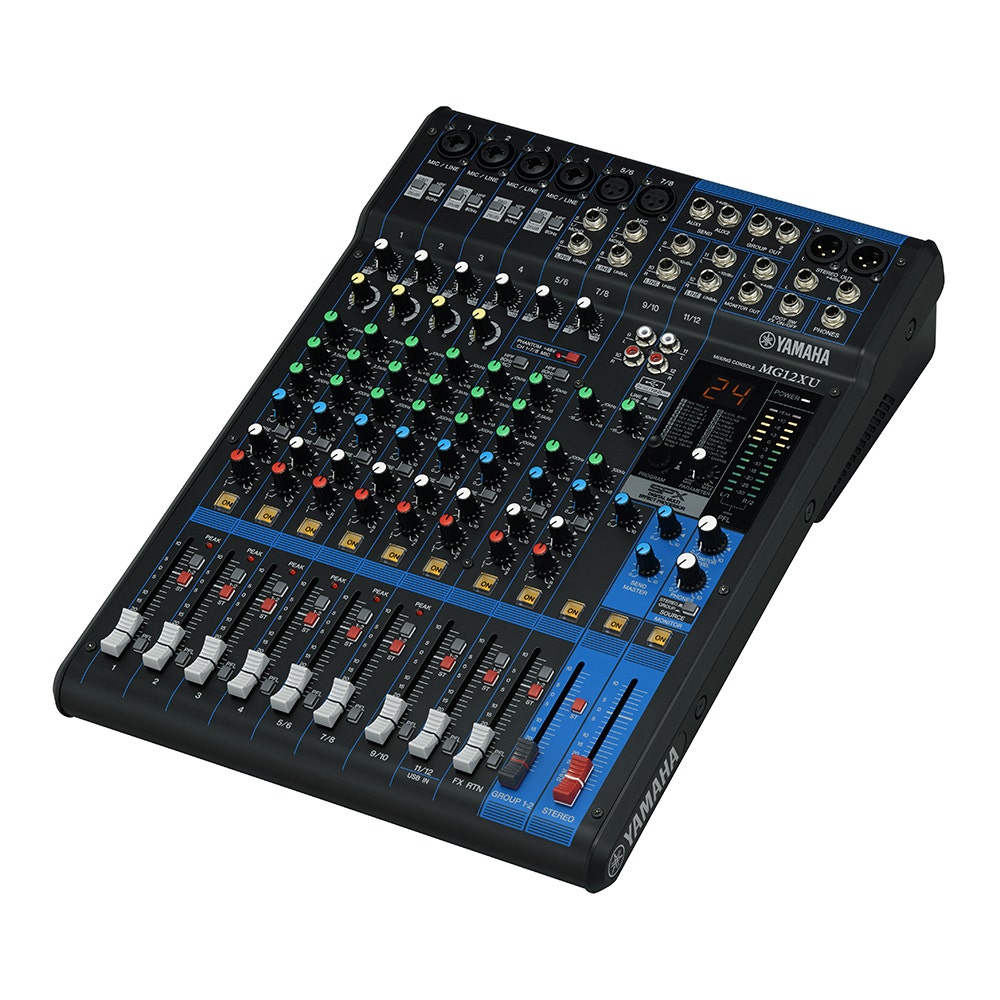

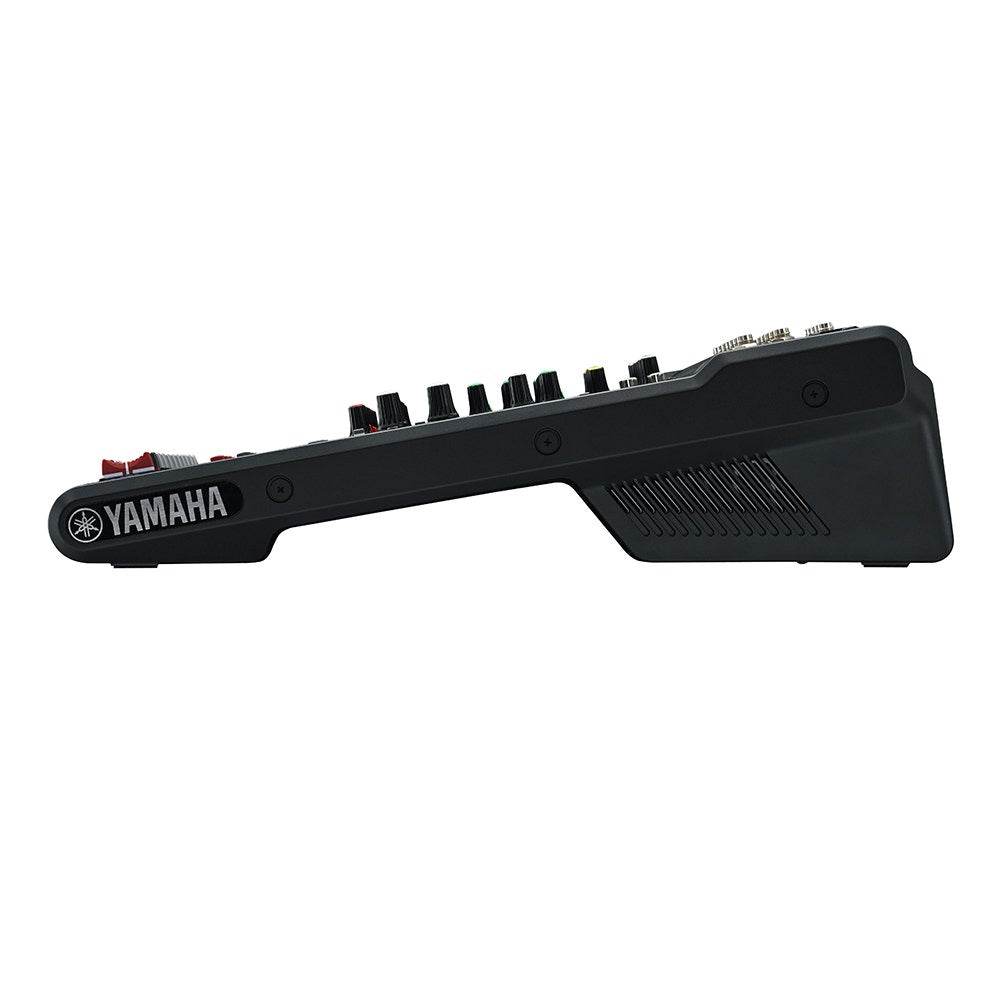

New Yamaha B-Stock MG12XU 12-Input Mixer and USB Interface with Built-In Effects
$329.99 USD
Description
Yamaha MG12XU 12-Input Mixer and USB Interface with Built-In Effects (NAMM 2017 Exhibition Stock)
Features
- 12-Channel Mixing Console
- Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
- 2 GROUP Buses + 1 Stereo Bus
- 2 AUX (incl. FX)
- “D-PRE” mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- High-grade effects: SPX with 24 programs
- 24-bit / 192kHz 2in / 2out USB Audio functions
- Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
- Includes Cubase Al DAW software download version
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Internal universal power supply for world-wide use
- Optional Rack Mount Kit RK-MG12 Available
- Metal chassis
- Dimensions(W×H×D): 308 mm x 118 mm x 422 mm (12.1" x 4.6" x 16.6")
- Net Weight: 4.2 kg (9.3 lbs.)
| Mixing capability | On-board processors | SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
|---|---|---|
| I/O | Phantom power | +48 V |
| Digital I/O | USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit | |
| Input Channels | Mono[MIC/LINE] | 4 |
| Mono/Stereo[MIC/LINE] | 2 | |
| Stereo[LINE] | 2 | |
| Output Channels | STEREO OUT | 2 |
| MONITOR OUT | 1 | |
| PHONES | 1 | |
| AUX SEND | 2 | |
| GROUP OUT | 2 | |
| Bus | Stereo: 1, GROUP: 2, AUX: 2 (incl. FX) | |
| Input Channel Function | PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) | |
| COMP | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec | |
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | |
| EQ MID | Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking | |
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping | |
| Level Meter | 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] | |
General specifications
| Total harmonic distortion | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min | |
|---|---|---|
| Frequency response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | |
| Hum & noise level | Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise | -102 dBu (STEREO OUT, STEREO master fader: Min) | |
| Crosstalk | -78 dB | |
| Power requirements | AC 100 – 240 V, 50 / 60 Hz | |
| Power consumption | 22 W | |
| Dimensions | W | 308 mm (12.1") |
| H | 118 mm (4.6") | |
| D | 422 mm (16.6") | |
| Net weight | 4.2 kg (9.3 lbs.) | |
| Accessories | Included Accessory: Owner’s Manual, Technical Specifications, AC power cord, Cubase AI Download Information, Optional Accessory: Rack-mount kit RK-MG12, Foot Switch FC5 | |
| Others | Operating Temperature: 0 to +40˚C | |
Specifications
| Type | Mixers |
|---|---|
| Condition | New |
| Brand | Yamaha |
| MPN | MG12XU-ESTK |
| Mixer Type | Digital |
| Mixer Format | Rackmount, Live Console |
| Mixer Channels | 12 |
| Mixer Channel Type | Mic, Line |
| Mixer Busses | 2 |
| Mixer Aux Sends | 2 |
| Mixer Connectivity | USB |
| Mixer IO | XLR |
| Mixer FX | Yes |
| Mixer Phantom Power | Yes |
| Mixer Scene Recall | No |
| Mixer Sample Rate | 192 kHz |
| Mixer Bit Depth | 24-bit |
| Shipping Weight | 19.0 g |
