New Yamaha AG08 8-Channel Live Streaming Mixer, White

The AG08 is an 8-channel live streaming mixer featuring two phantom power inputs for condenser mics, an integrated USB audio interface, voice changer and sampler. The AG08 can support an impressive depth of live streaming applications, as well as offline audio content creation that will leave your audience wanting more.
As the flagship model of Yamaha’s second-generation AG series lineup, the AG08 combines all the essential functionality of its predecessors with a versatile selection of practical new features to give you a powerful all-in-one streaming station. By integrating more flexible I/O and USB routing options, expanded foot switch functionality, as well as additional DSP effects and improved internal circuitry for class-leading sound, the AG08 is able to support an impressive depth of live streaming applications, as well as offline audio content creation. From single-user talking, gaming, ASMR, voice acting, or vocal/instrument performances, to multiple personnel applications even on the scale of a full-blown variety show, the real-world, real-time functionality of the AG08 will leave your audience wanting more.

Features

• Two mic/line inputs and two headphone outputs can be used simultaneously
• +48 V phantom power on CH1 and two for condenser mics or Dl boxes
• Four FX preset buttons for CH1, Hi-Z input for guitars on CH2
• Three stereo inputs with assignable faders, switchable input source for LINE/USB
• 4-pole mini input/output (TRRS) on CH7/8

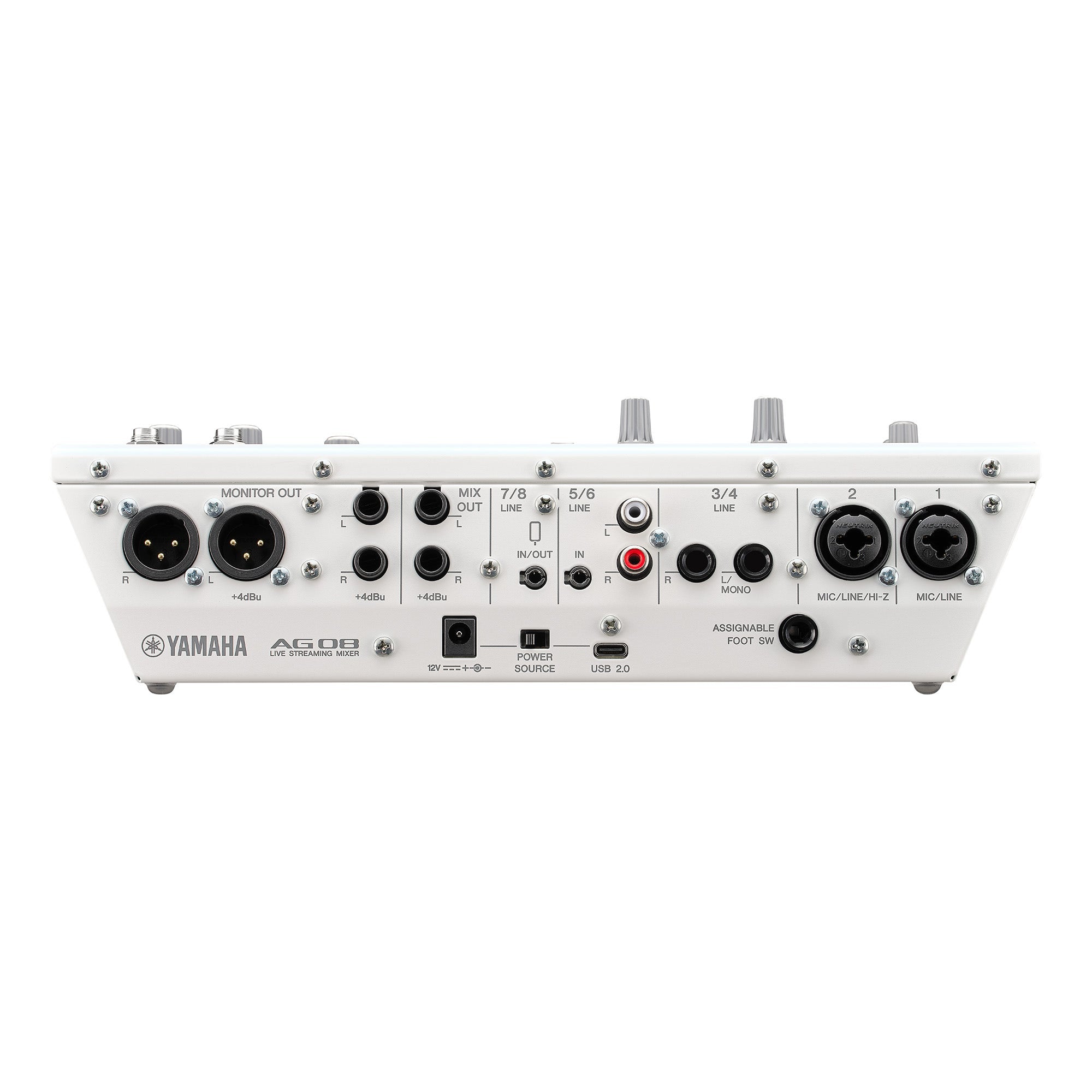

• MONITOR outputs (XLR + TRS) and MIX outputs (TRS)
• Six sound pads trigger audio samples in real time to add color to live streams
• Internal circuitry delivers highest sound-quality in the AG series
• 24-bit, 48 kHz Multi-channel audio recording and playback (Coexistence of ASIO and WDM)
• Flexible inputs and outputs ideal for live streaming
• DSP effects (Voice Changer, Amp Simulator, Comp, EQ, Reverb, Delay, Ducker, Maximizer)
• AG08 Controller (Windows / Mac / iOS) for precise parameter control and detailed audio management
• 60 mm faders and Mute buttons for each input
• Footswitch functionality for more versatile system control
• Windows / Mac support via USB-C connection
• iOS connectivity via Apple Camera Adapter (requires external USB power supply)
• Android supported by 4-pole mini input/output (TRRS)
• Power input (AC/DC adapter 12 V, 1.5 A / USB-C 5 V, 1.5 A)
• Bundled with Cubase Al, WaveLab Cast, Cubasis LE

System Components

• AG08 Live Streaming Mixer
• USB cable (type C to C)
• AC adaptor PA-150B
• Manuals and safety guide
• Cubase AI, Wavelab Cast, and Cubasis LE Download Information



Optional Accessories

• FC5 footswitch
