Temple Audio Design USB Power Output Module

New Temple Audio Design USB Power Output Module

$49.00 USD
Description

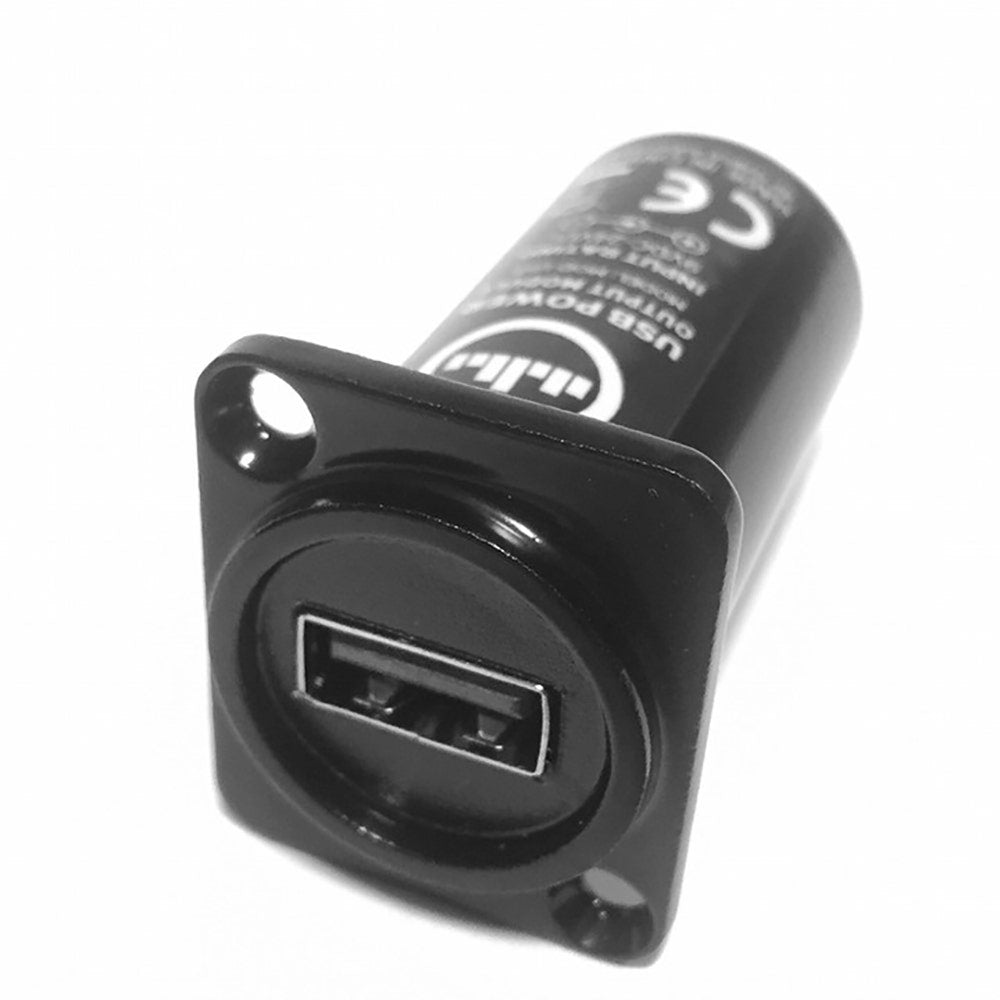

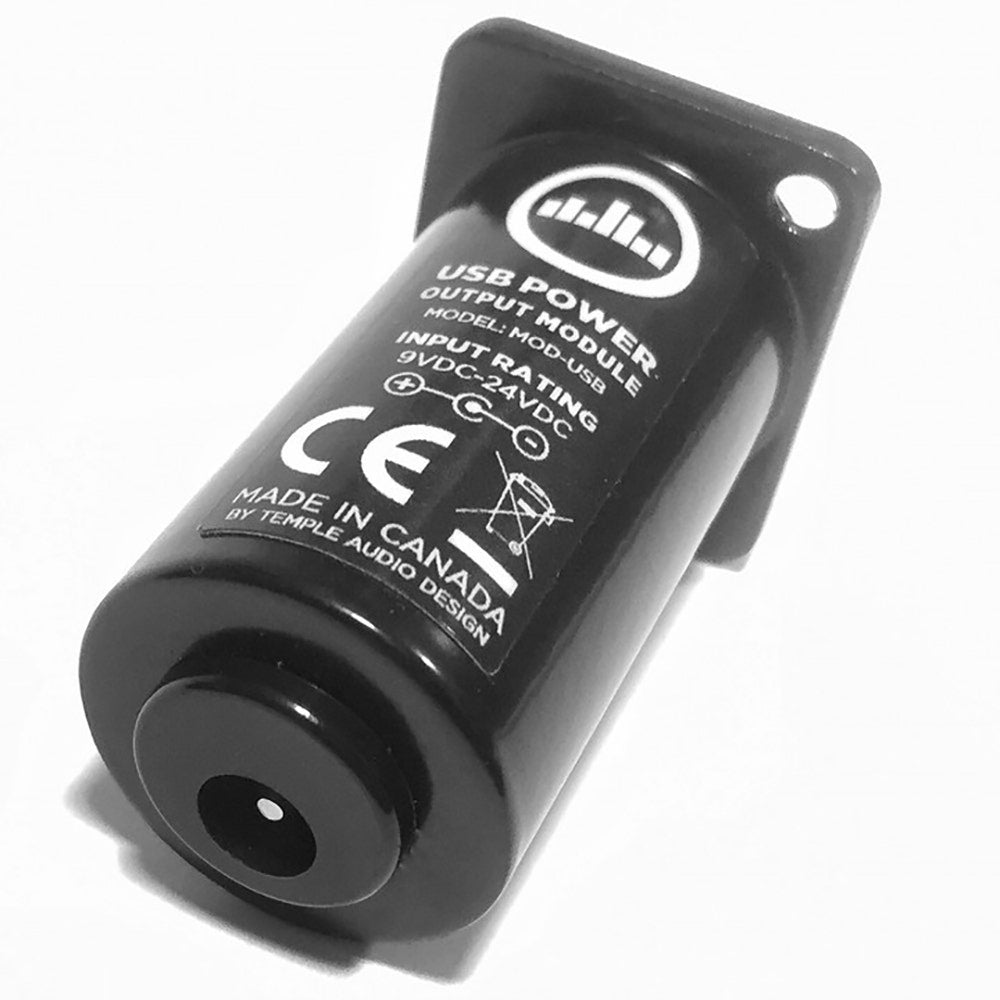

Temple Audio Design USB Power Output Module

USB POWER OUTPUT MODULE

TEMPLE AUDIO DESIGN

Need to charge a device? The USB Power Output Moduleξis a solution for your modern day devices such as iPadsÎÂ, iPhonesÎÂ and other smart devices that are progressively replacing paper chord charts and music sheets. Utilizing a 9VDC Š—– 24VDC power input range, you can power your USB device (up to 2.1A) with your existing pedal power supply. The charging output is relative to amount of 9V power you have available from your power supply so it only uses what it has to.

specs:

Input Power: 9vdc-24vdc. Center Pin Negative
Power Output: USB Regulated 5VDC 2.1Amp
Dimensions: 1.02in x 1.22in x 1.92in

the "how much power do I need?" chart:

Input Voltage
Current for 1A USB Output Current for 2.1A USB Output
9VDC 600mA 1200mA
12VDC 500mA 1000mA
18VDC 300mA 600mA
24VDC 200mA 400mA



Specifications
TypeAudio Interfaces
ConditionNew
BrandTemple Audio Design
MPNMOD-USB
Interface ConnectionUSB
Has DSPNo
Shipping Weight0.13 lb
