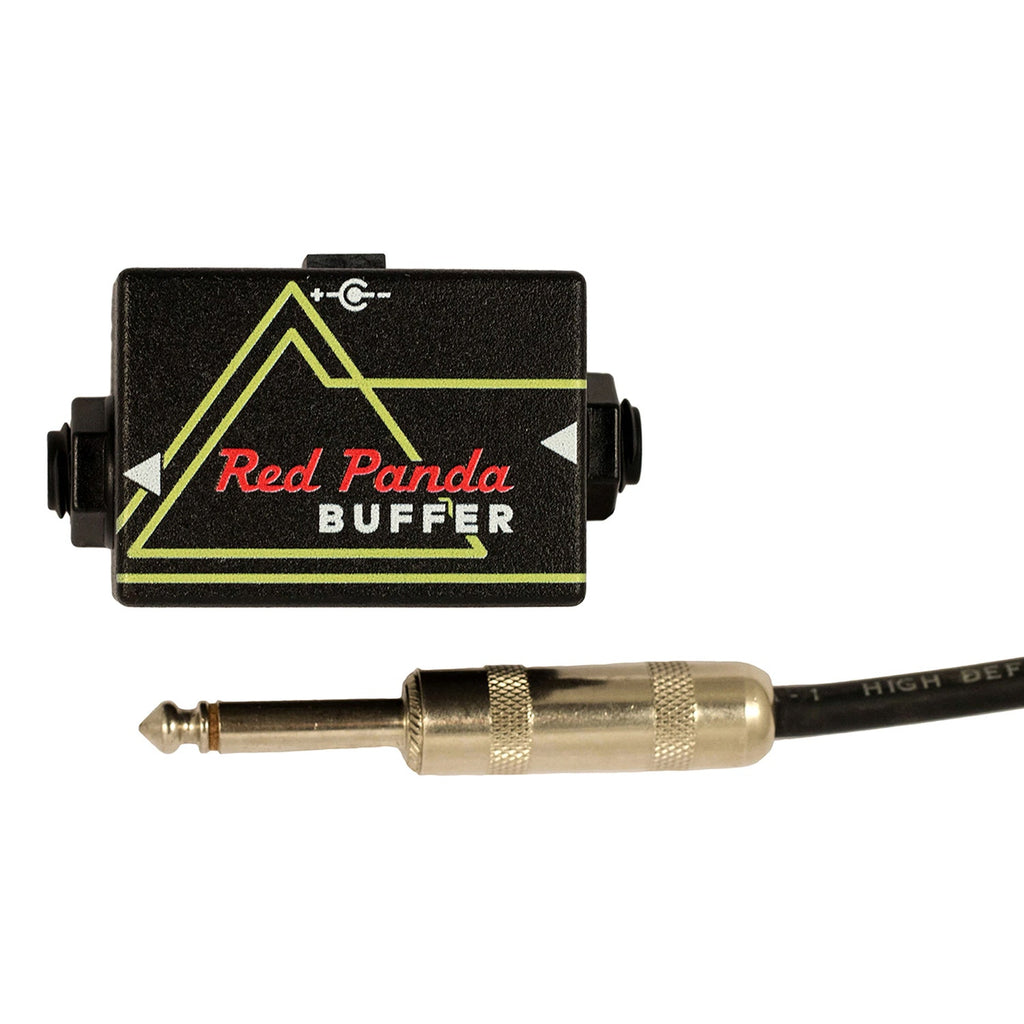

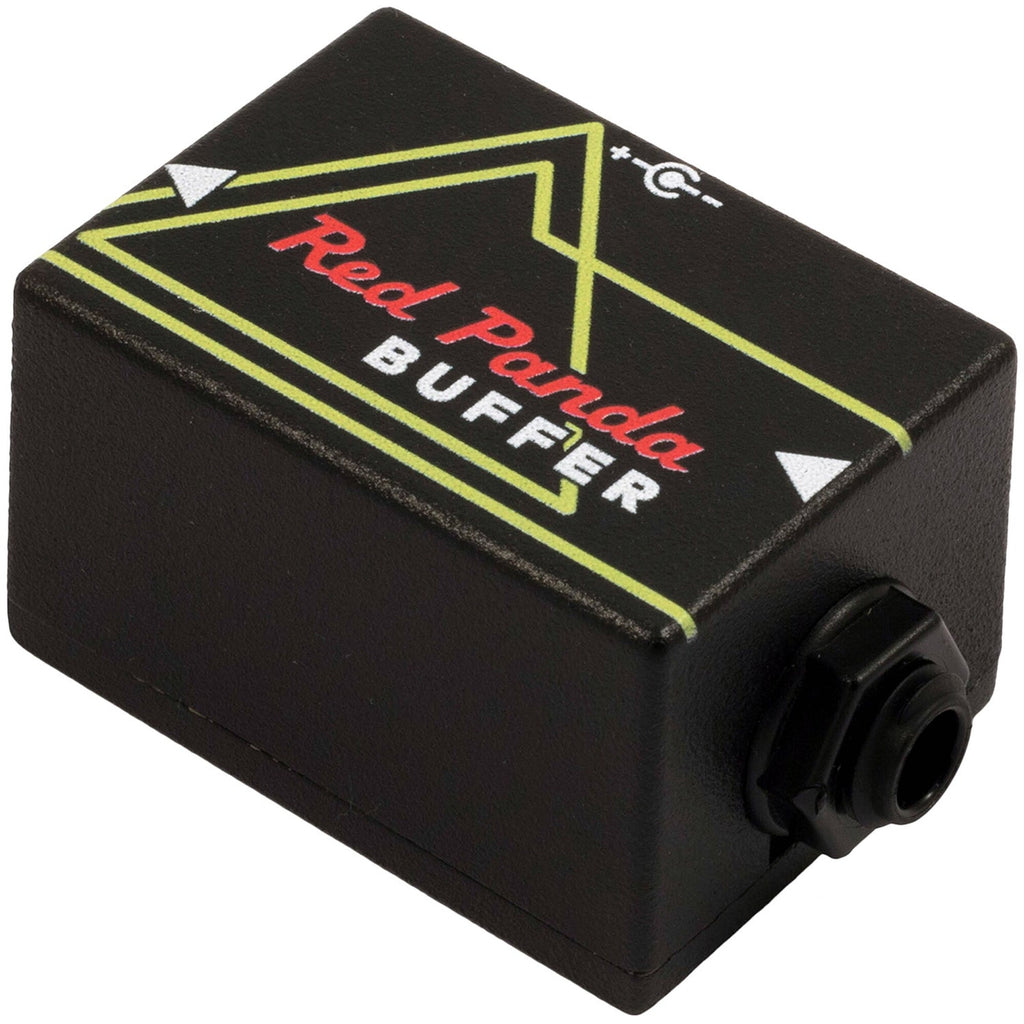

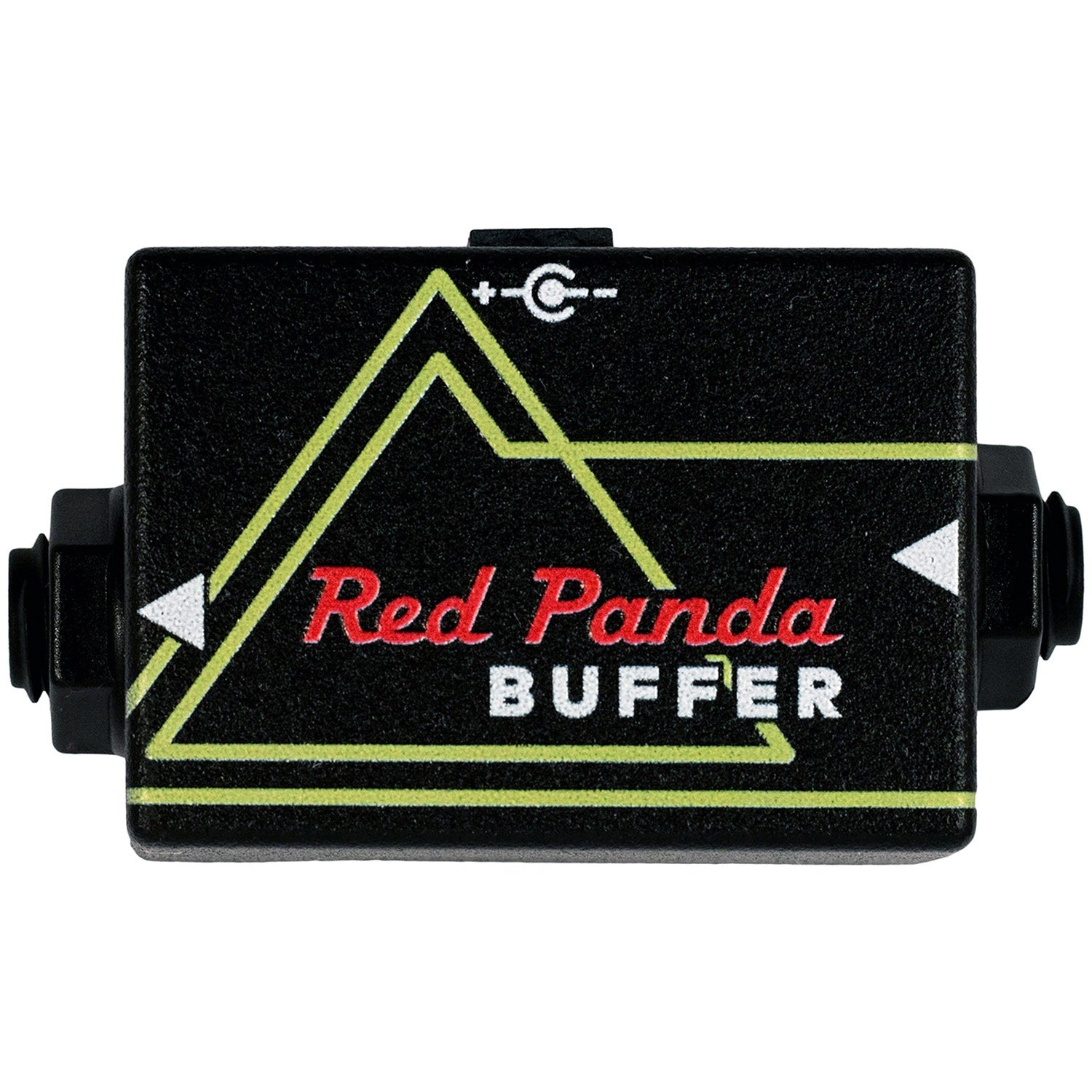

New Red Panda Bit Buffer 9v-18v Guitar Effects Pedalboard Buffer

The Bit Buffer is a tiny (2” x 1.5”) buffer that uses an ultra-low distortion, low-noise Burr-Brown op amp. Place it at the beginning of your pedal chain to prevent high-frequency loss (tone suck), or right before a long cable to a pedalboard or amp.

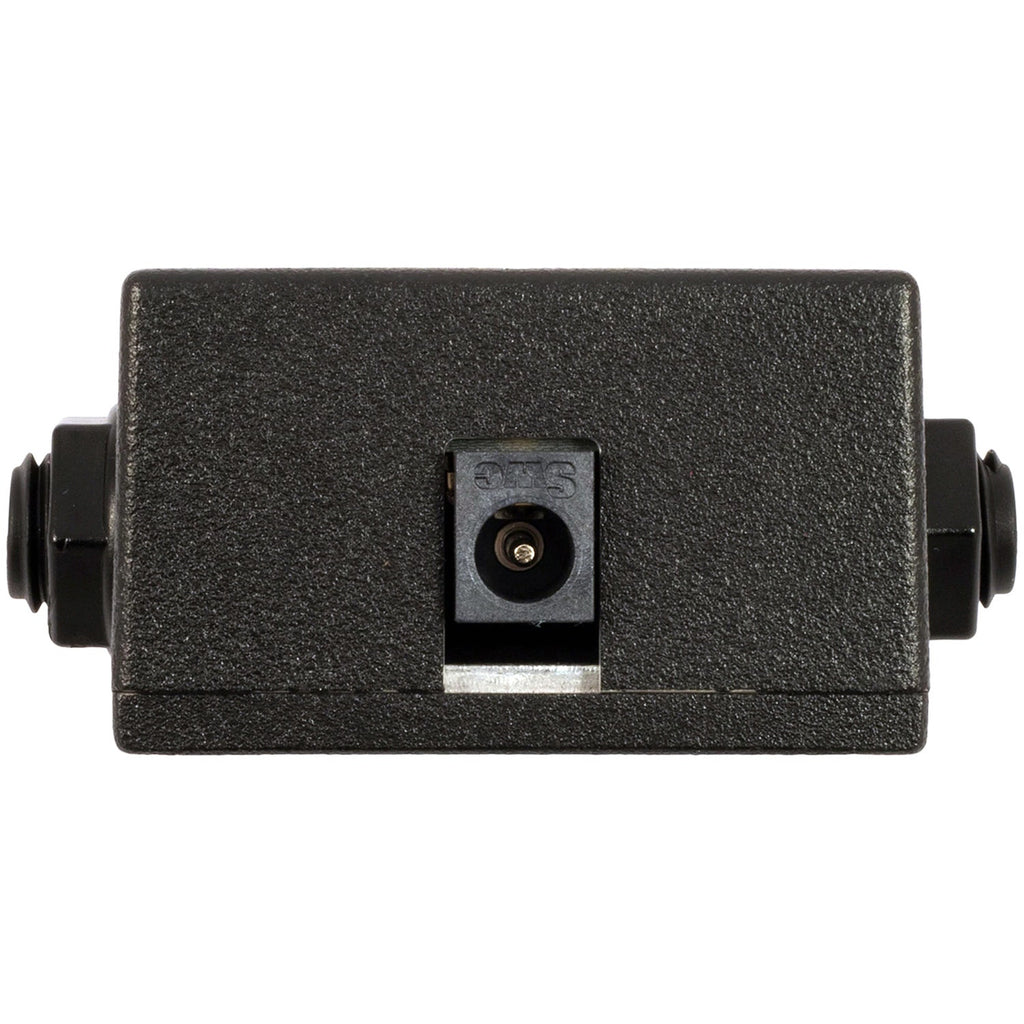

The Bit Buffer is always on when power is connected. An internal LED is visible below the power jack.

• Size: 2" x 1.5" x 1.2"
• Input impedance: 1 MΩ
• Output impedance: < 1 kΩ
• Frequency response (± 3 dB): 20 Hz - 40 kHz
• Signal-to-noise ratio: 90 dB
• Power: 9-18 VDC, center negative
• Current: 20 mA
