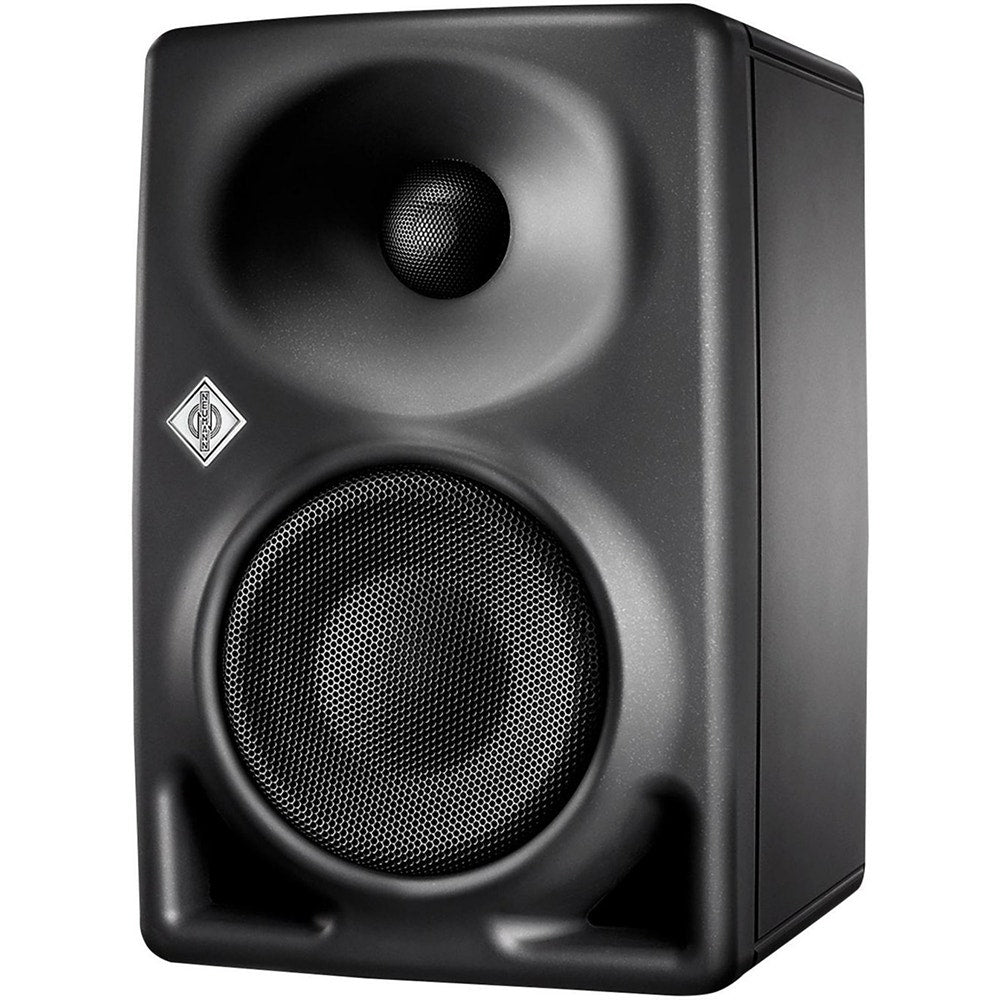

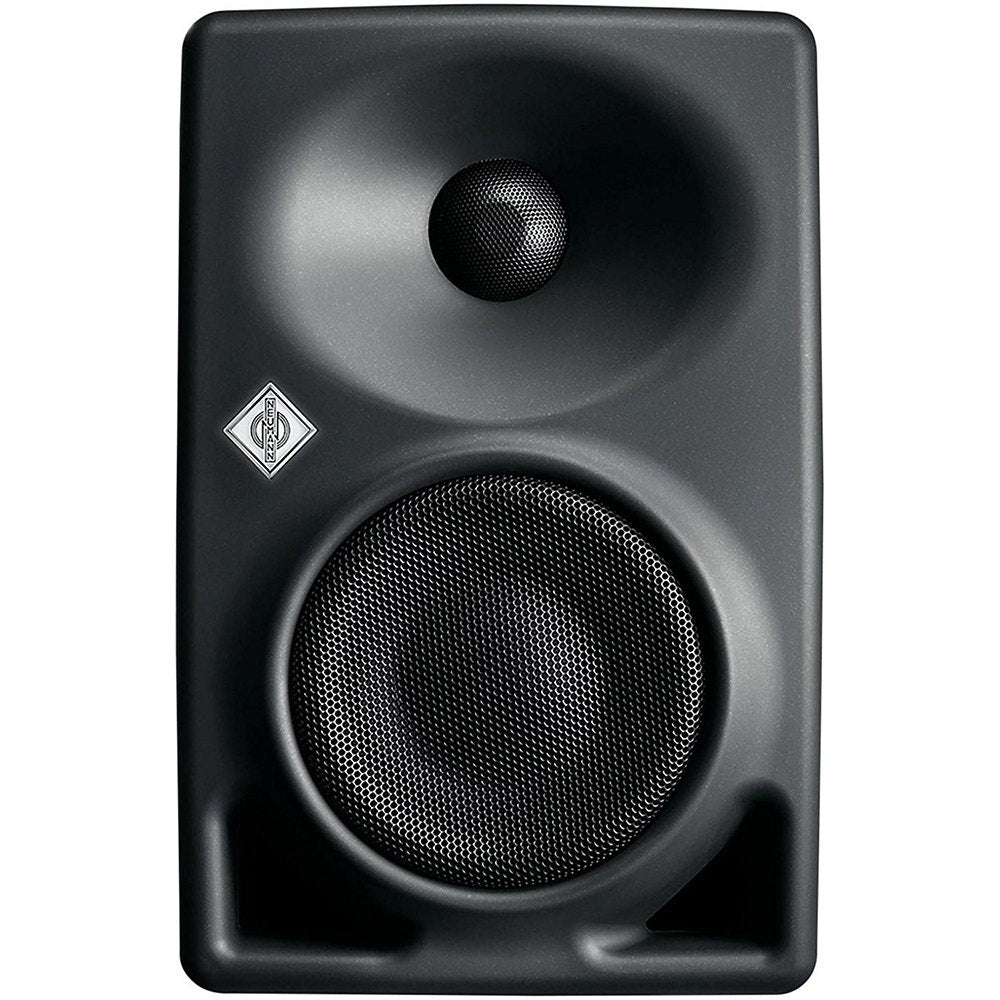

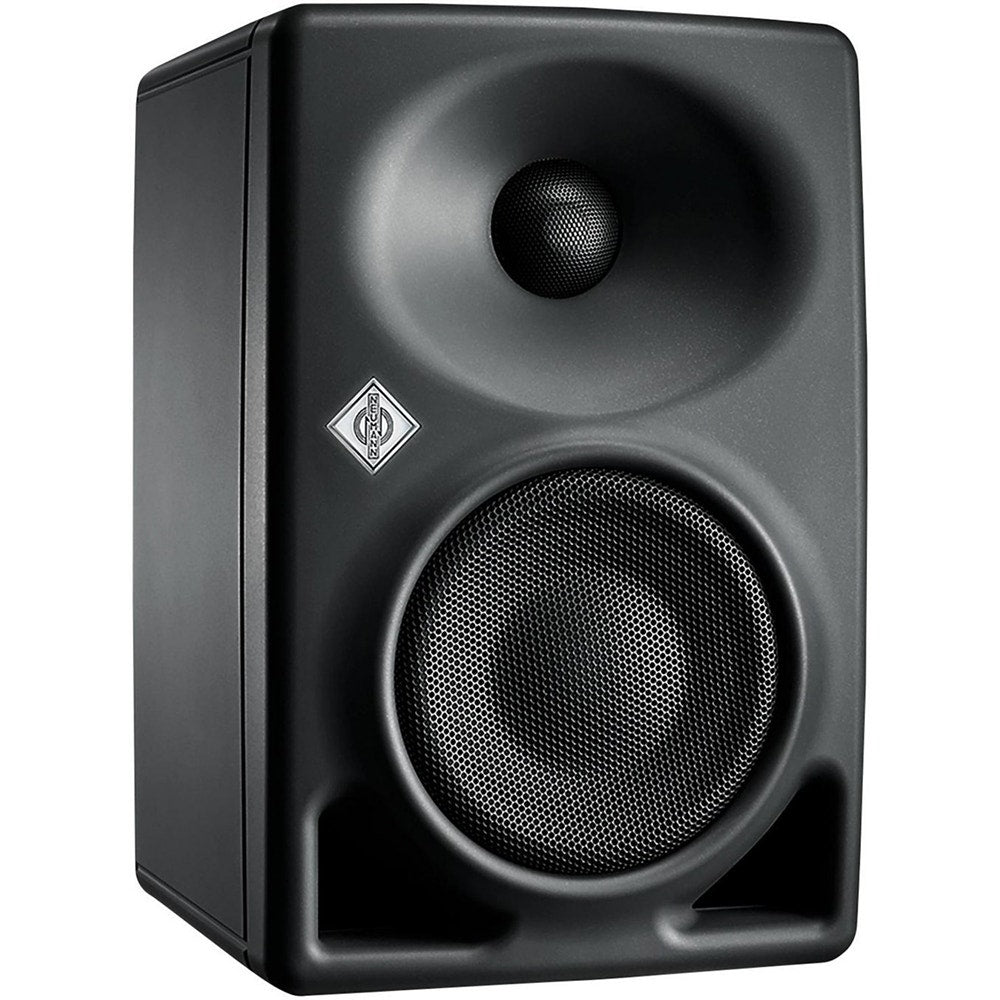

New Neumann KH 80 DSP Active 4" Nearfield Studio Monitor with DSP Control, Single

Neumann KH 80 DSP Active 4" Nearfield Studio Monitor with DSP Control, Single

The art of neutral studio sound – now digitally remastered

We have calculated every soundwave. We have perfected low-distortion materials. We have optimized the drivers with our years of experience and hand-selected every component. The system's perfection comes from its digital heart: In only 2 milliseconds, our DSP engine converts every sound to a reference quality in every environment so no detail gets lost on the way.

The perfect sound of mathematics at work

We know every nuance, every surface and every angle of the KH 80 DSP. It sounds so pure, because we are directing every soundwave so precisely.

The KH 80 DSP’s design is based on computer simulations that calculate with an accuracy that others do not match. Our Mathematical Modeled Dispersion Waveguide (MMD™) provides our studio series with a solid base for precise sound direction that stays absolutely unique. Doing your sums properly has never sounded so good.

Professional standards for everyone

Highest quality components, high-end protection systems and performance reserves are what you would expect from this studio class product. Its quality and design makes the KH 80 DSP a flexible near-field studio monitor, which delivers professional-quality sound wherever you need it. It can be used in studios, editing rooms or outside broadcast trucks. Some of our customers like it so much, they use KH 80 DSPs in their living rooms. And why not? Our latest monitor delivers digital precision for a masterpiece of analog technology: your ears.

Features

• The Number 1 For 0 Compromises
• New DSP-engine optimizes output to achieve reference class sound
• Ready for fully-automatic alignment to the room using the Neumann.Control* software
• Mathematically modeled dispersion to deliver excellent detail in any surroundings

Neumann KH 80 DSP Active 4" Nearfield Studio Monitor with DSP Control, Single

Acoustical

• -6 dB free field frequency response: 53 Hz … 22 kHz, ± 6 dB
• -3 dB free field frequency response: 57 Hz … 21 kHz, ± 3 dB
• Pass band free field frequency response: 59 Hz … 20 kHz, ± 2 dB
• Self-generated noise (with input gain set to 100 dB for 0 dBu): < 20 dB(A) bei 10 cm
• Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz): 102,8 / 108,8 dB SPL

Electronics

• Input: XLR, analog electronically balanced
• Controller design: Digital, active
• Crossover frequency, slopes: 1.8 kHz, 48 dB/oct, 8th order
• Bass amplifier, cont.(peak) output power*: 150 W (130 W)
• Treble amplifier, cont.(peak) output power: 55 W (70 W)
• Mains Power Supply, voltage; frequency: 100-240 V~; 50/60 Hz, with standby



Mechanics

• Drivers: 100 mm (4"), 25 mm (1"), with integrated black metal grilles
• Mounting points: 2 x M6 threaded inserts with 70 mm spacing on back panel
• Product dimensions (height x width x depth), mm (inches): 233 x 154 x 194 mm (9 1/8" x 6" x 8 5/8")
• Product weight: 3.5 kg (7 lbs 11 oz)
