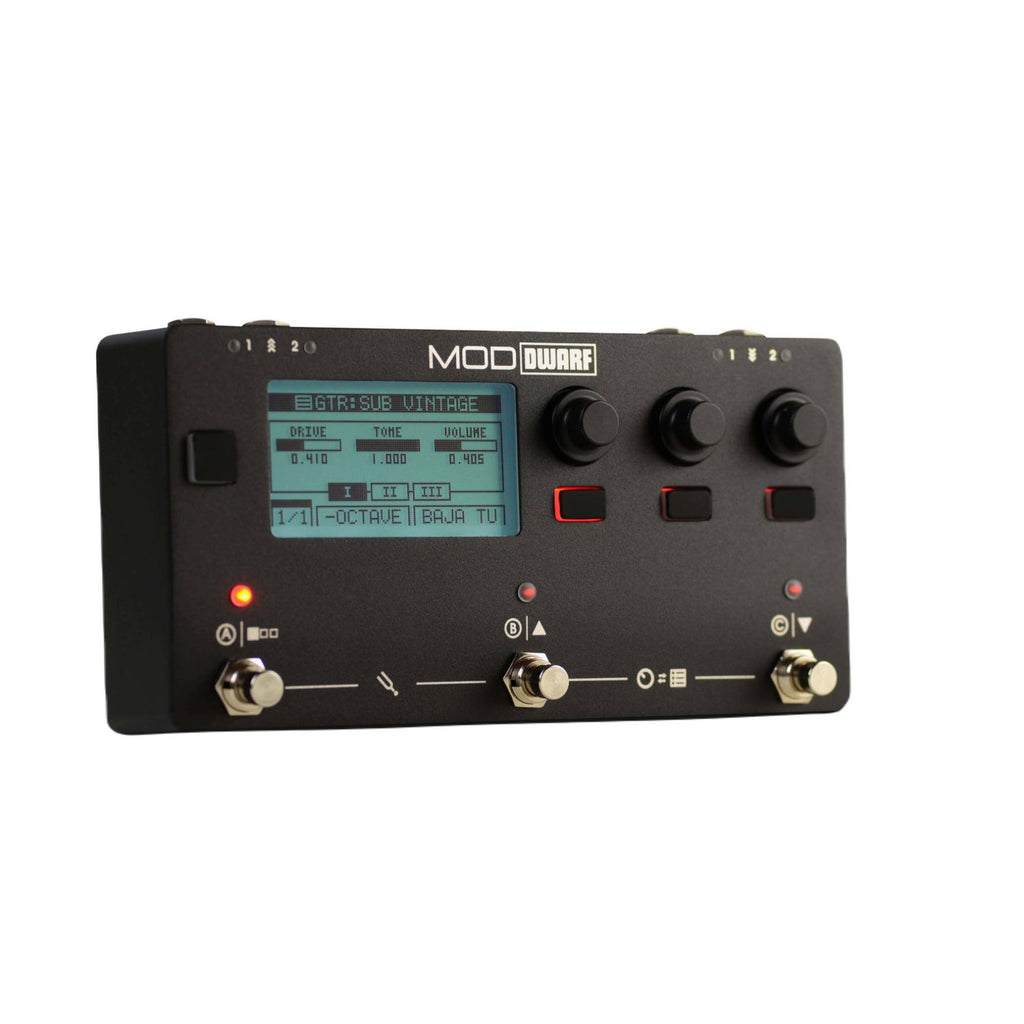

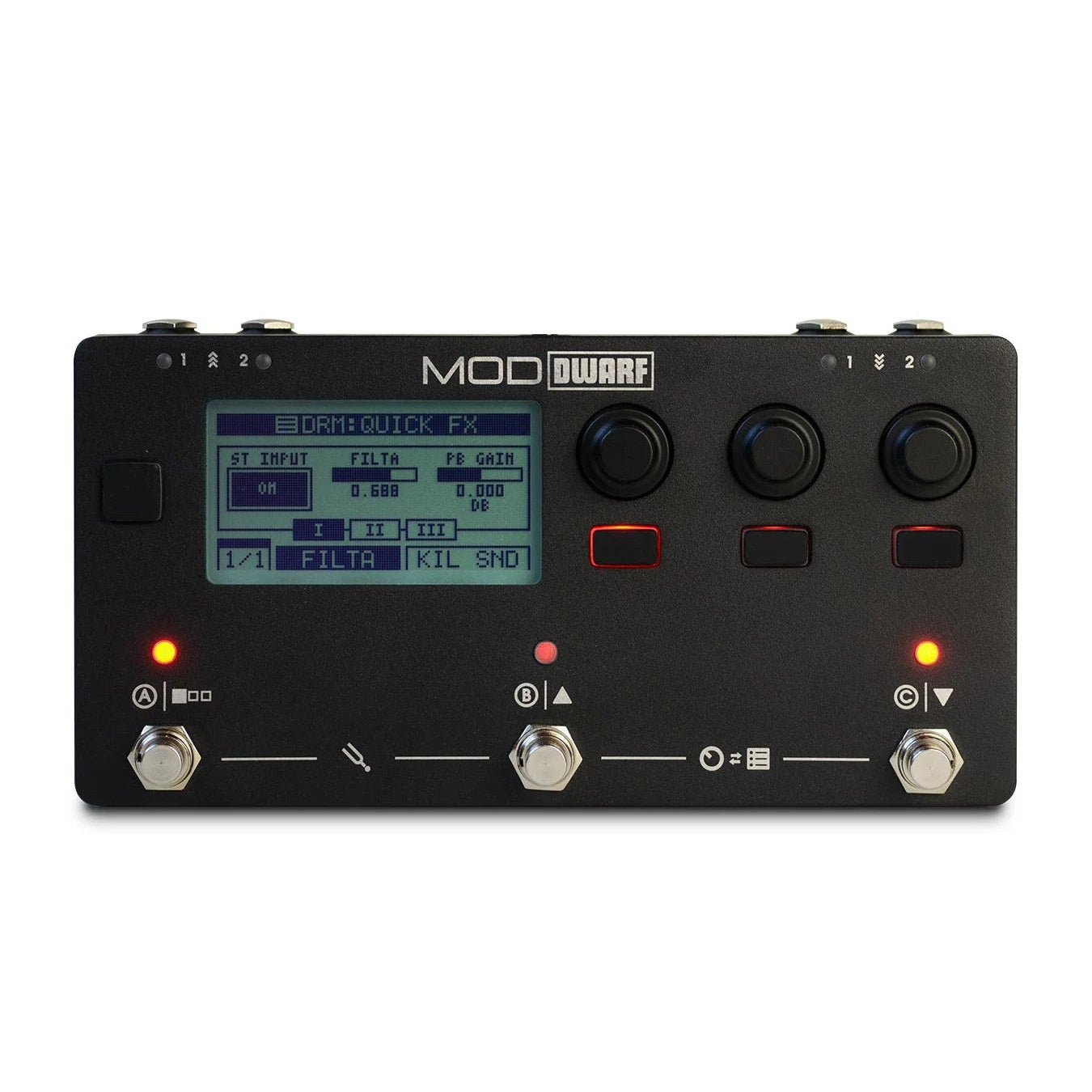

New MOD Dwarf Standalone Modular Audio Processor Guitar / Synth Multi-Effects Pedal

The MOD Dwarf is a standalone modular audio processor that lets you build your own custom pedalboards. Load plugins. Patch effects. Chain synths and loopers. Whether you’re a guitarist, synth player, producer, or sound explorer, Dwarf puts modular power at your feet — ready to perform, tweak, and create in real time. Built for musicians, creators, and explorers — ready for stage, studio, or adventure.

Compact on the outside. Powerful on the inside. MOD Dwarf combines modular flexibility with hardware-grade reliability — ready for the stage, the studio, or your next sonic experiment.

MOD Dwarf acts as a central hub for guitars, synths, microphones, MIDI controllers, and CV devices. Designed to enhance any signal routed through it, Dwarf morphs seamlessly between standalone pedalboard, audio interface, synth controller, and live rig anchor.

Whether it’s replacing a single pedal, powering an entire synth setup, or anchoring a live rig with vocals, guitar, and loops — the MOD Dwarf adapts to your setup with its huge plugin collection, free internal routing and flexible I/O.

Modular Pedalboard Building

Patch any plugin, any way — no limits.

300+ Plugins Available, and Growing

Effects, synths, loopers, samplers, utilities, and more.

Real-Time Control & Automation

Map footswitches, knobs, MIDI controllers, and CV.

Snapshots & Tempo Sync

Save setups, automate changes, lock everything to the beat.

Audio, MIDI, and CV Routing

Blend signals, split chains, control anything — freely.

Stage-ready Standalone Freedom

No laptop needed. Everything runs inside a rugged box.

Four modes of operation for hands free operation

Once your pedalboards are built, the Dwarf offers four different modes of operation that let you perform live and control your sound — completely hands-free.

Pedalboard Navigation

Change your entire setup on the fly.

Snapshot Navigation

Instantly switch between different snapshots of a pedalboard.

Individual Controls

Tweak individual controls with precision and speed.

Tools

Access useful tools such as the tuner or the tempo tool.

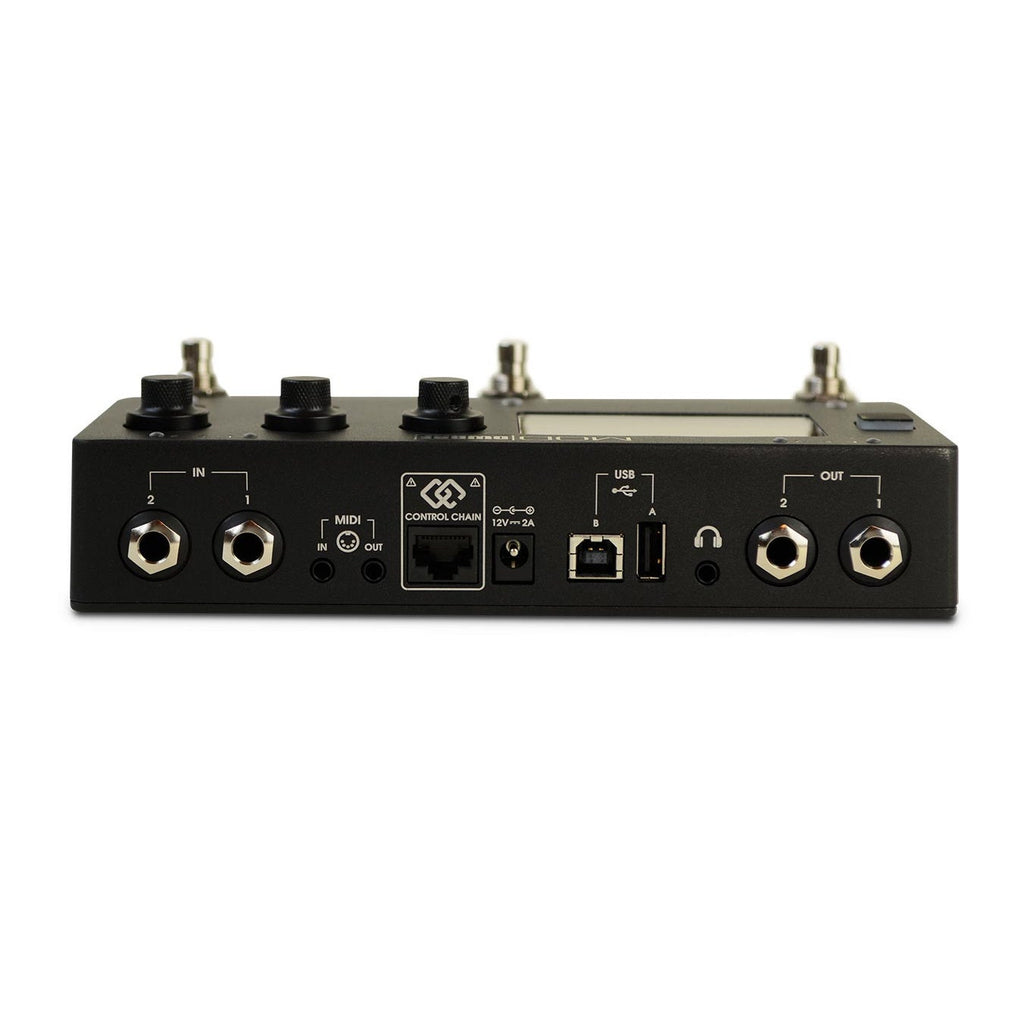

Inputs & Outputs

• Dual 6.35mm TRS independent audio inputs, with gain configurable from -12dB to +35dB, 1M Ohm input impedance, unbalanced
• Dual 6.35mm TRS independent audio outputs, with gain configurable from 0dB to -127dB, balanced or unbalanced
• 3.5mm TRS Headphone output, with gain configurable from -33dB to +12dB
• 3.5mm TRS MIDI type-A input and output
• USB Type-B Device port for connecting to a computer
• USB Type-A Host port for MIDI controllers, Bluetooth and Flashdrives
• Control Chain (RJ-45) port for MOD peripherals



Processor

• Quad Core ARM A35 @ 1.3GHz
• 1GB RAM
• 8GB eMMC Storage



Controls and Monitors

• 3 Rotate-n-click Endless Encoders with Metallic Knurled Knobs
• 3 Soft-touch Momentary Foot-switches with an RGB LED each.
• 4 Silicone Push Buttons
• 2.9" LCD display



Power

• 12VDC 2A
• 5.5 x 2.1 x 10mm barrel connector



Device

• Dimensions: 202mm x 105mm x 54mm (L x W x H)
• Weight: 800 grams



Protective Case

• Dimensions: 240mm x 250mm x 72mm (L x W x H)
• Weight: 280 grams.
