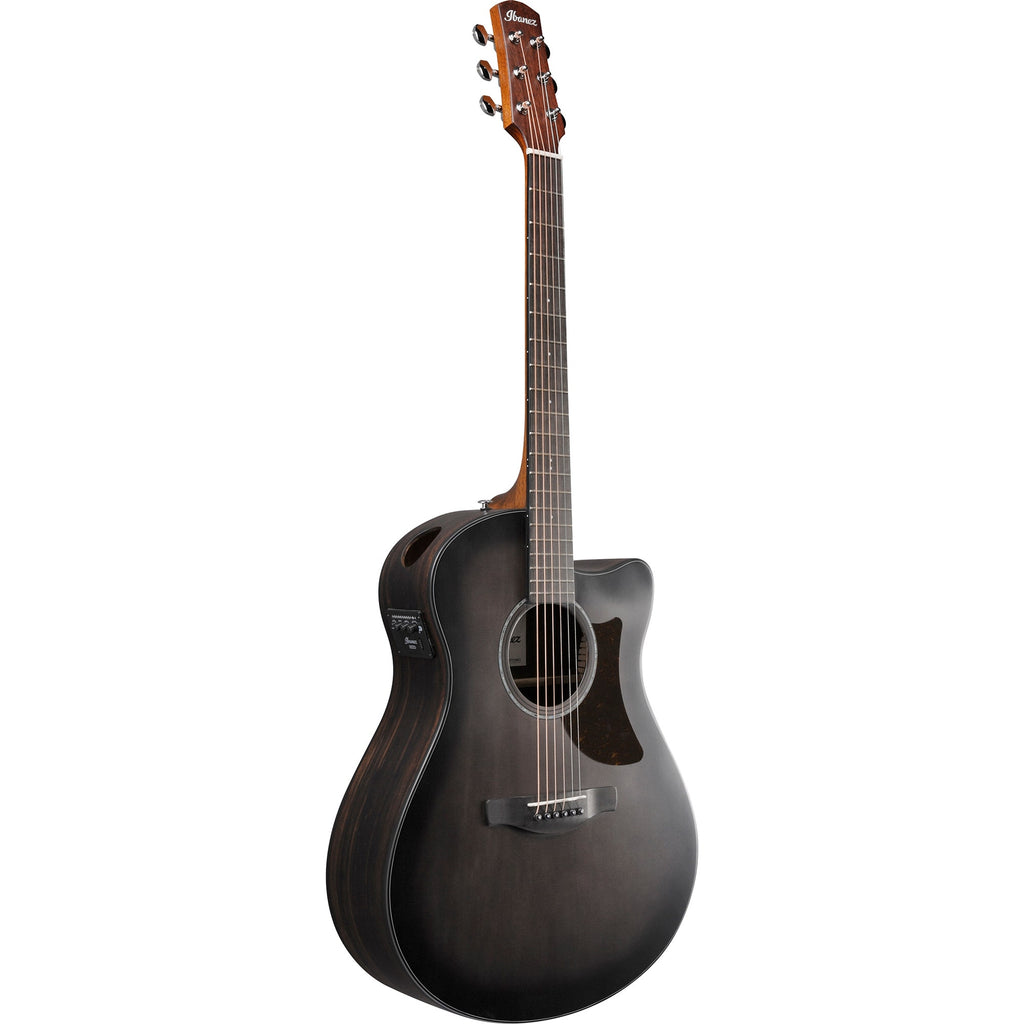

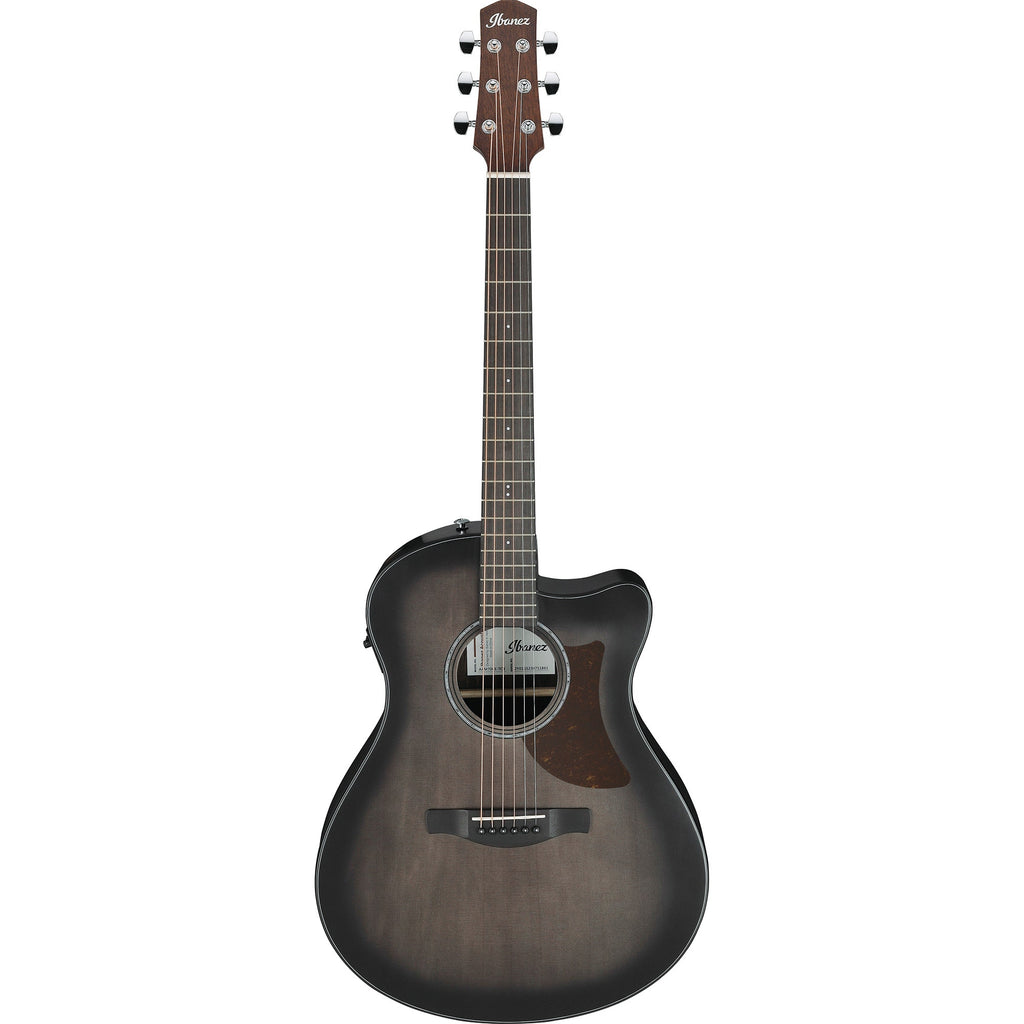

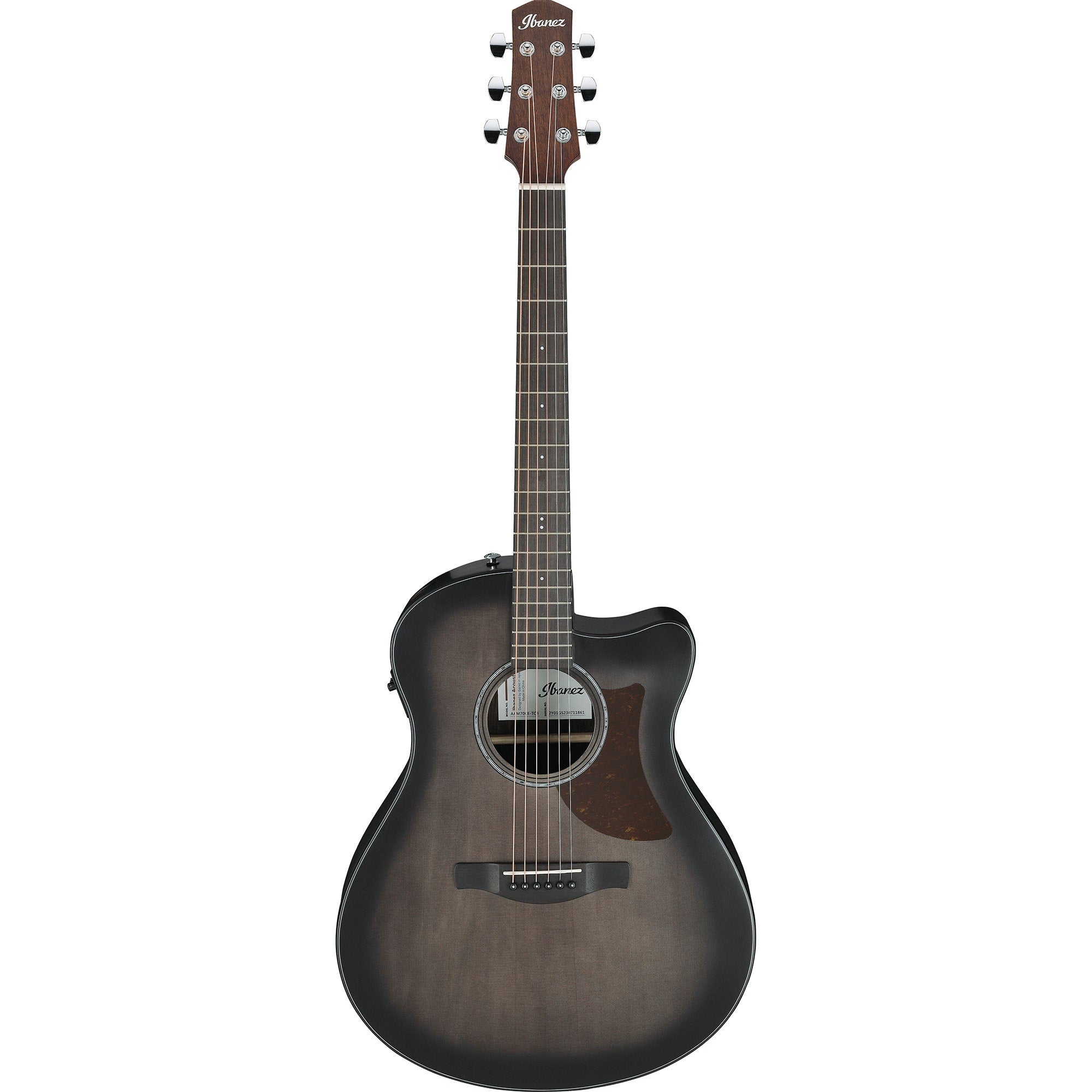

New Ibanez AAM70CE Advanced Auditorium Cutaway Acoustic-Electric Guitar, Transparent Charcoal Burst

Low Oval Grip Okoume neck

Purpleheart fretboard

The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this guitar.

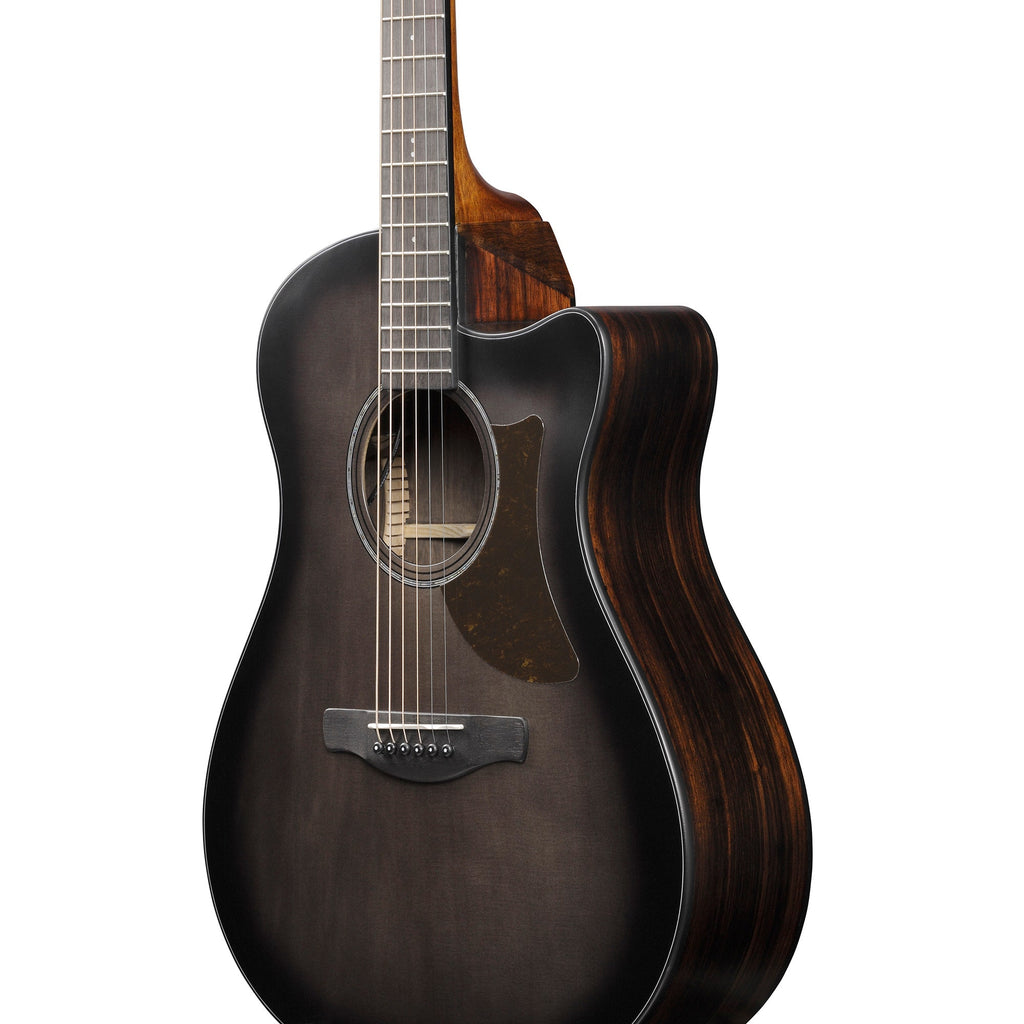

Solid Sitka Spruce top

Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.

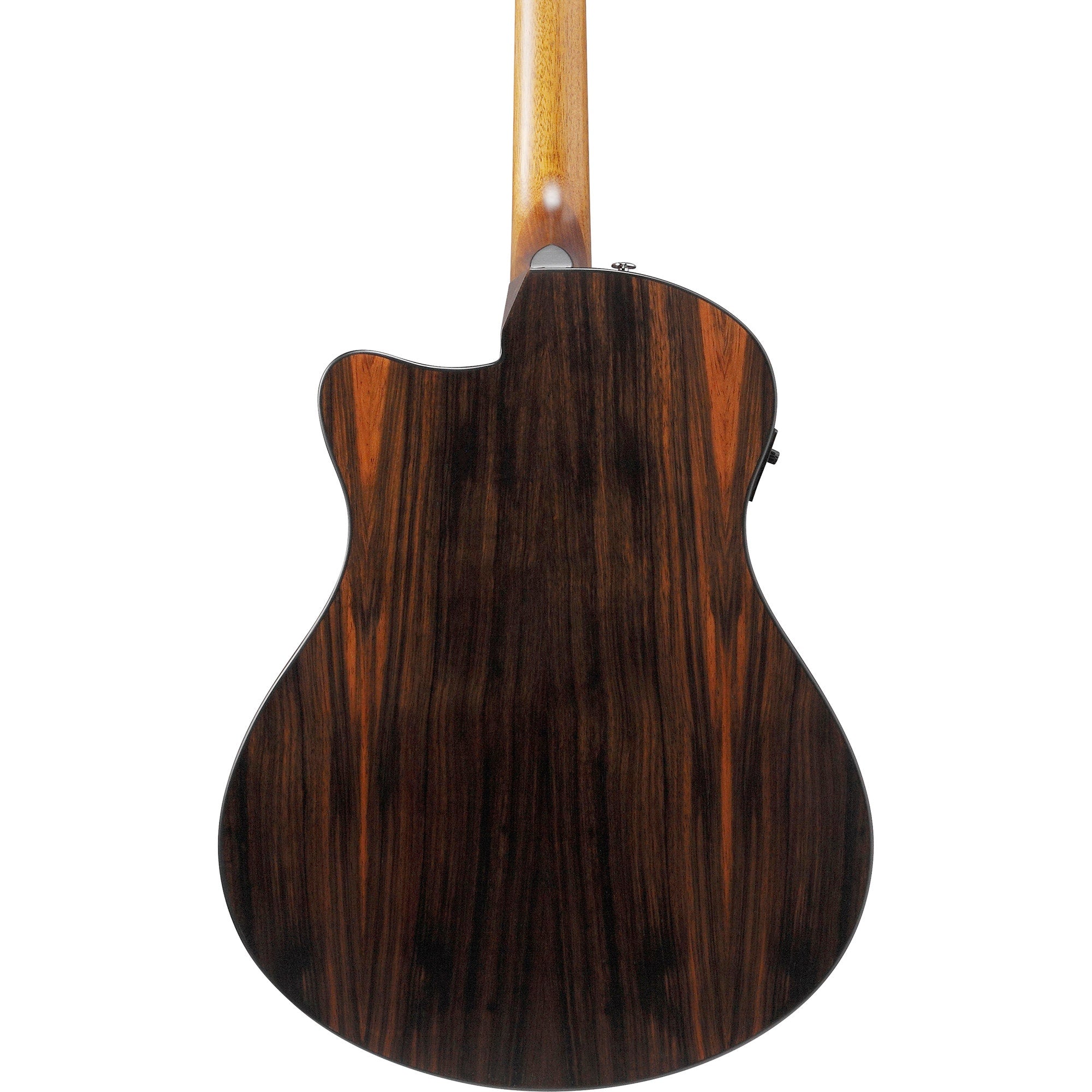

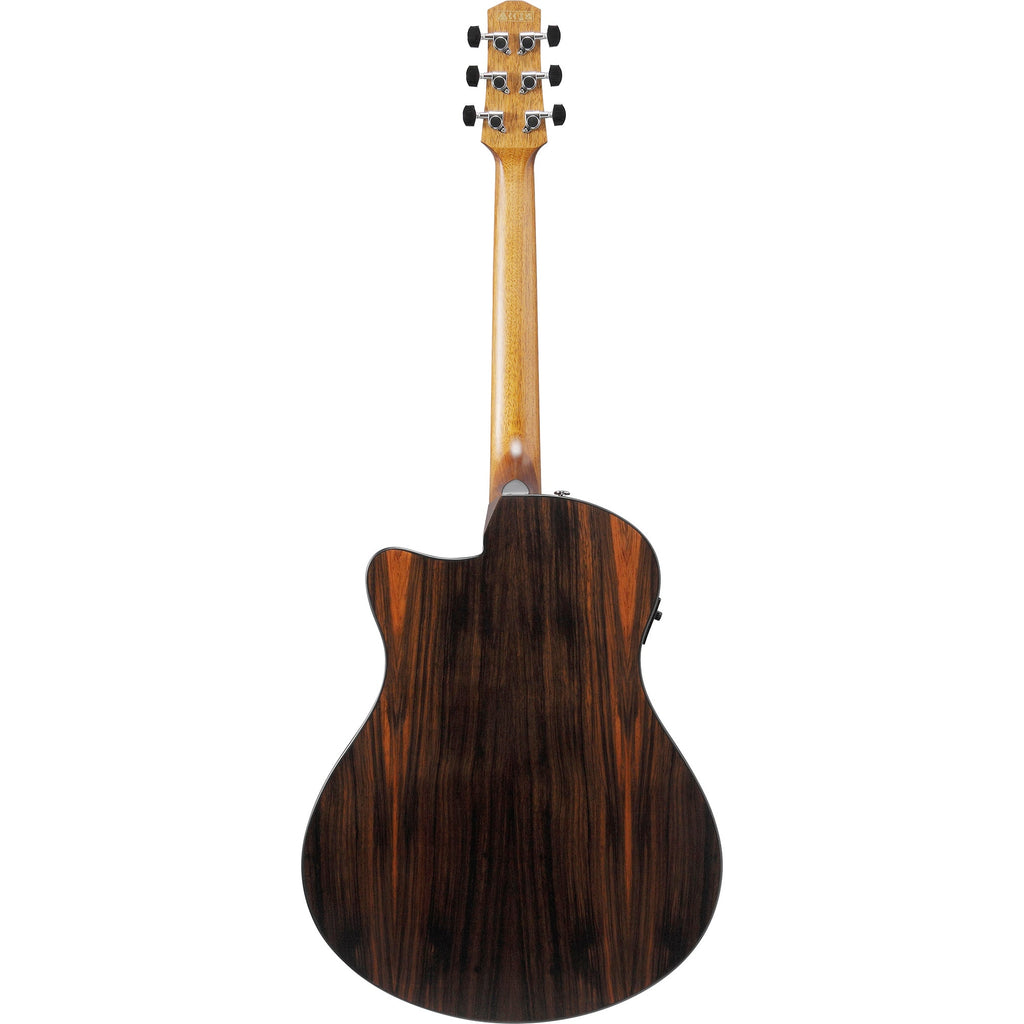

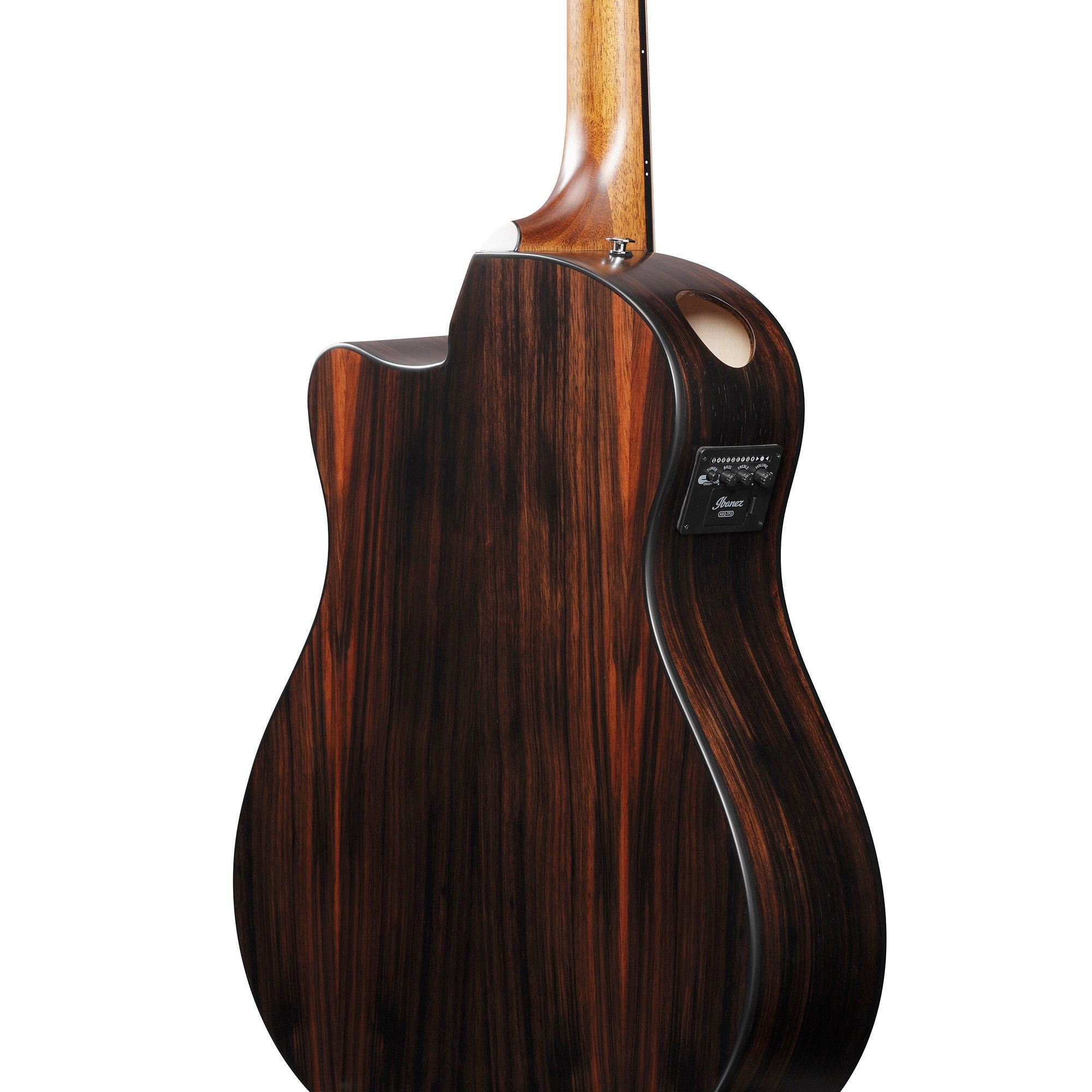

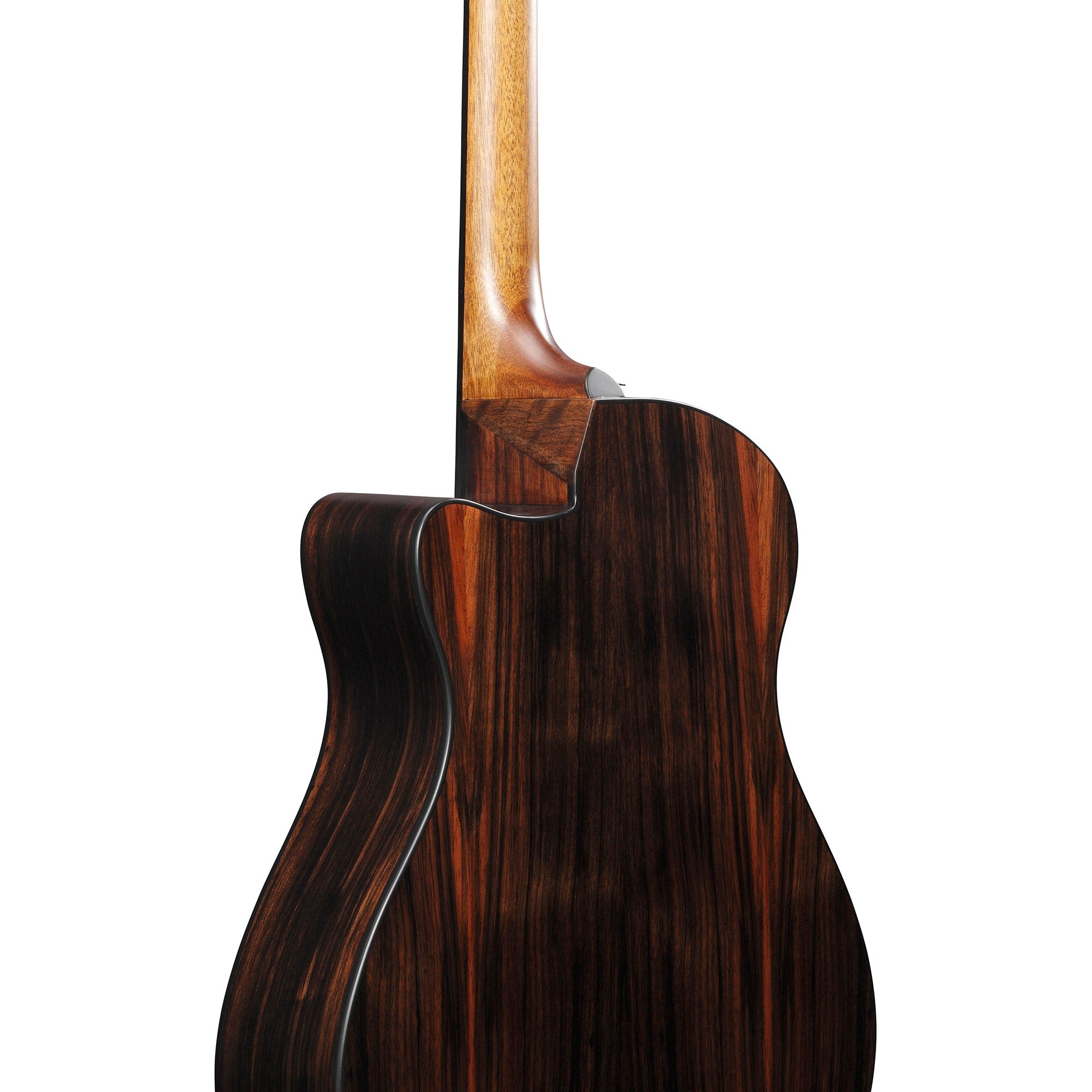

Macassar Ebony back and sides

Macassar Ebony back and sides imbue this guitar with an exotic appearance.  Macassar Ebony features full-bodied, deep lows and sparkling treble tones.

Ibanez T-bar Undersaddle pickup

The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.

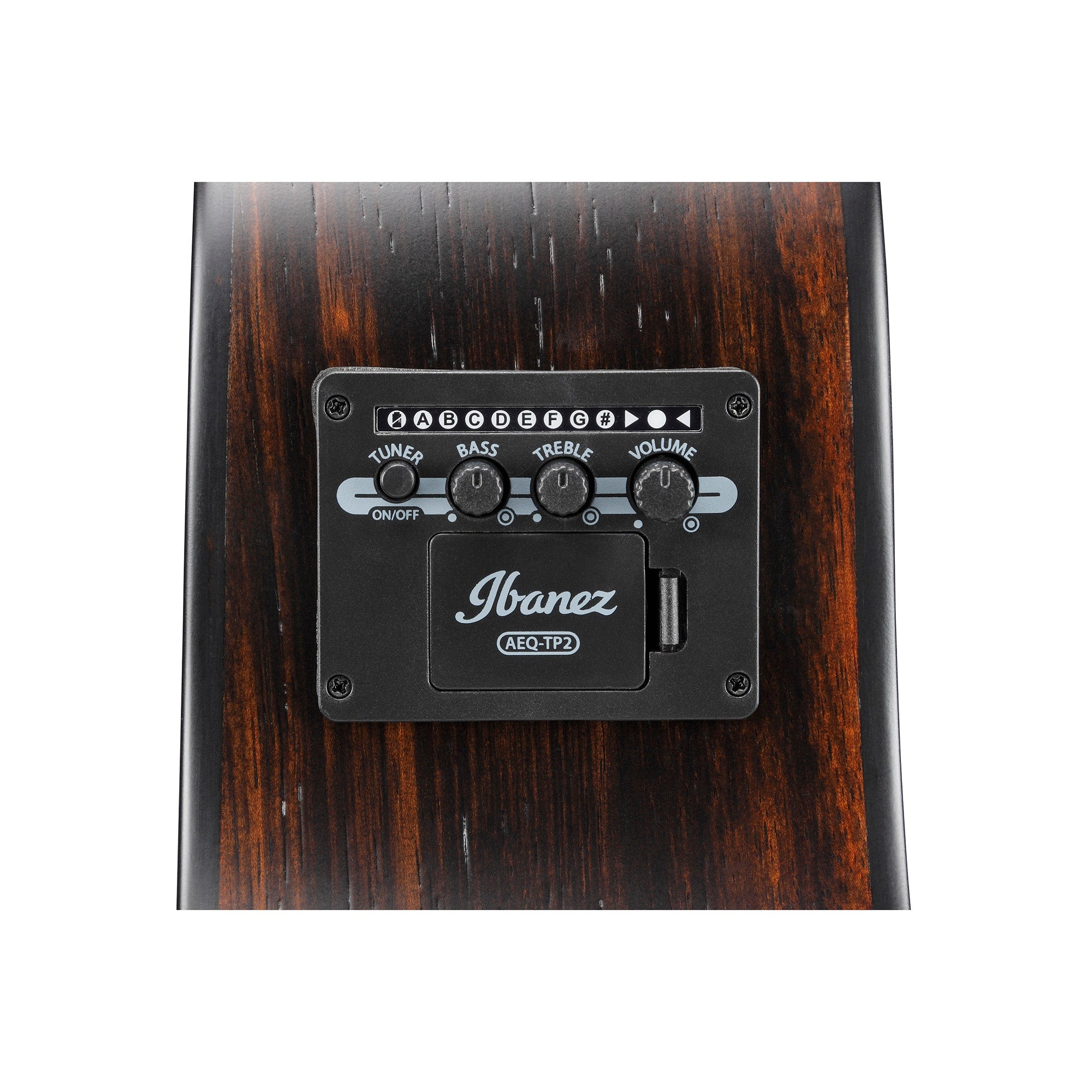

Ibanez AEQ-TP2 preamp w/Onboard tuner

The Ibanez AEQ-TP2 preamp provides the extra punch of on-board EQ along with a convenient and easy-to-read digital tuner and 2-band EQ, located on the instrument’s upper bout.

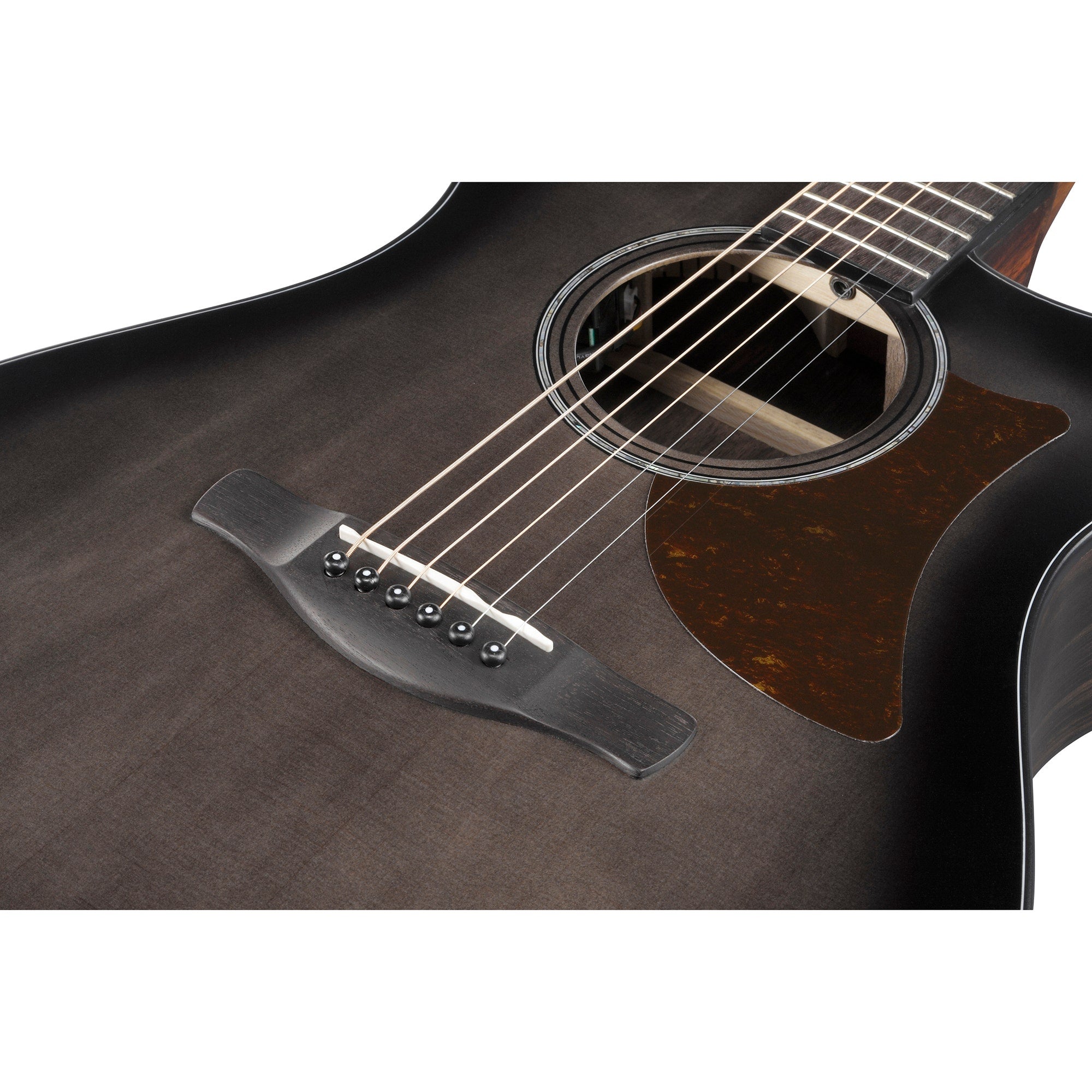

Purpleheart bridge

The Purpleheart bridge transfers string vibration directly to the body, delivering a natural and warm tone.

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.

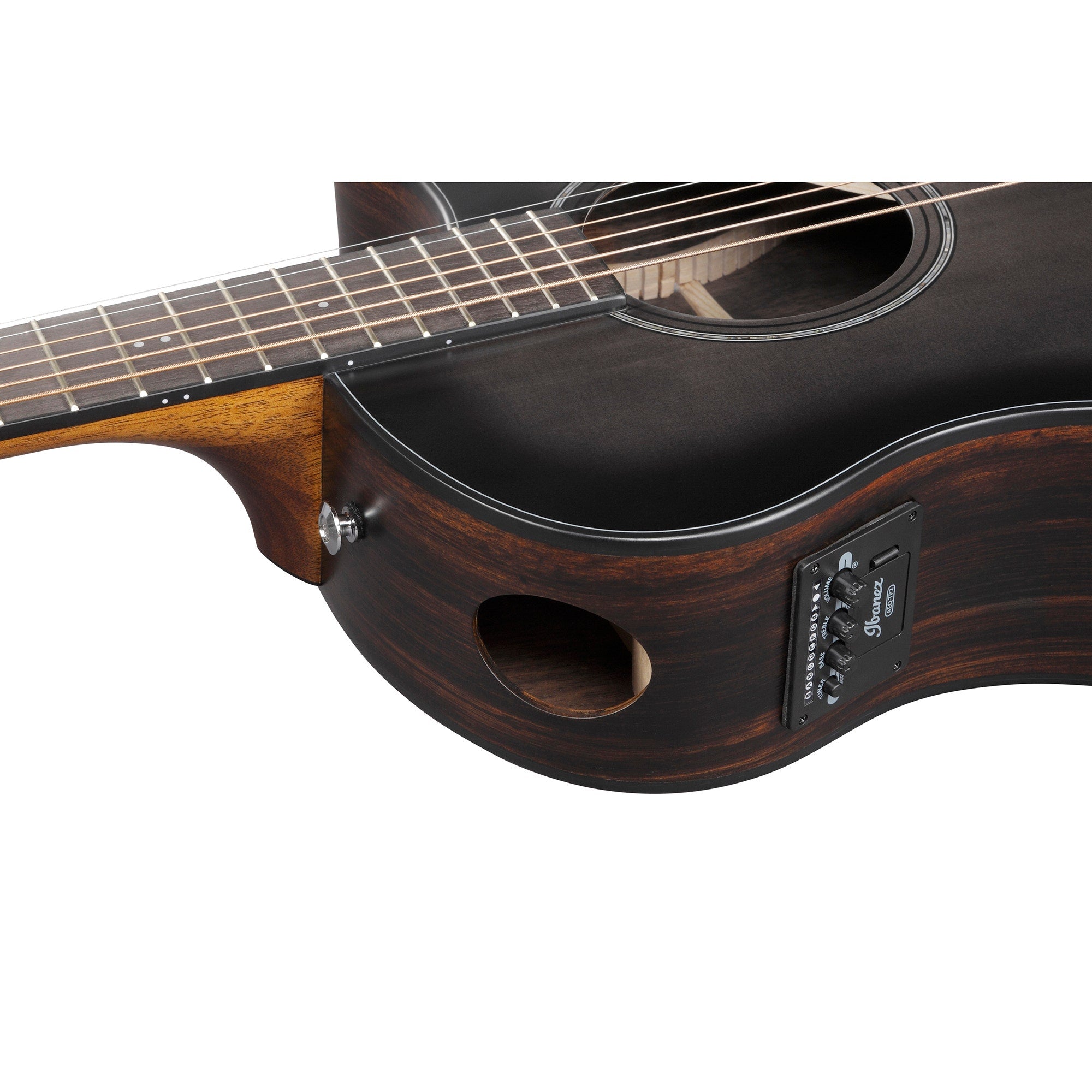

A.I.R.port

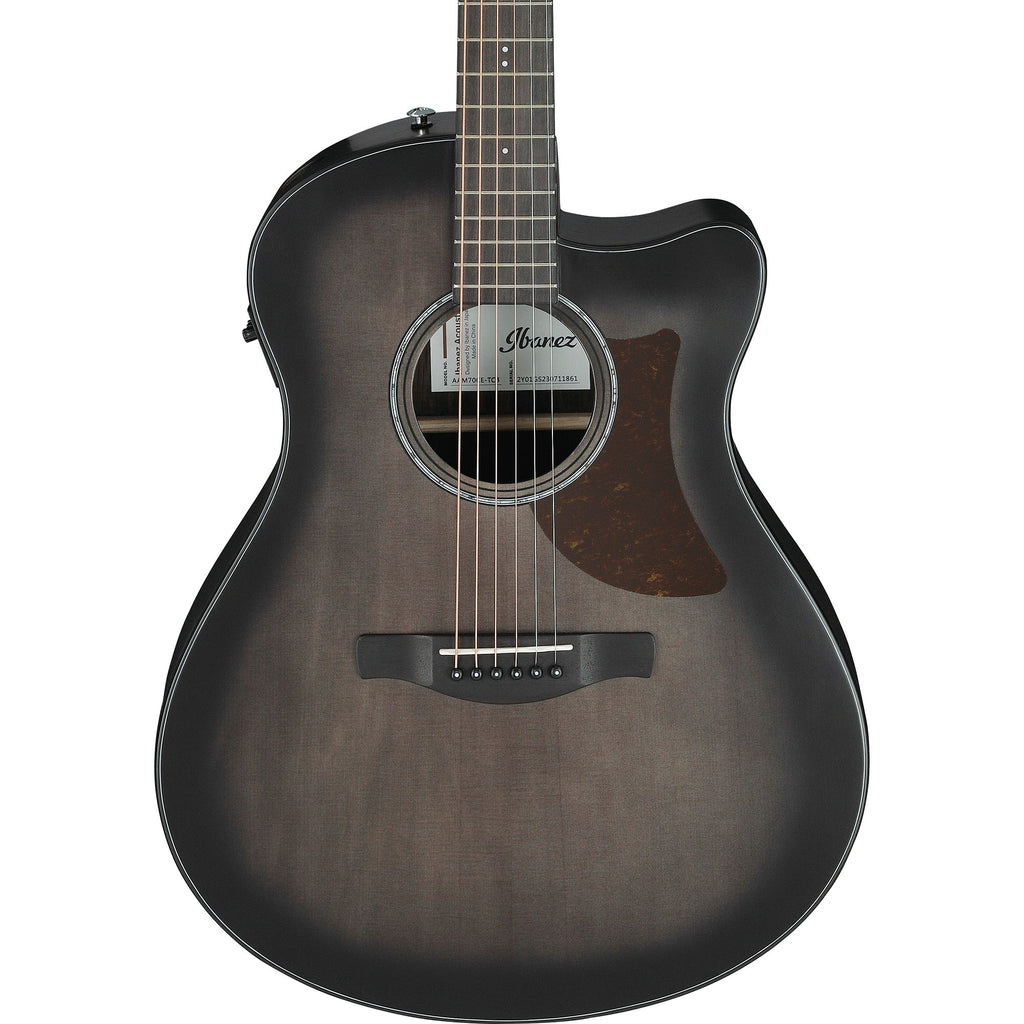

Advanced Auditorium Body

X-M Bracing

After spending years of trial-and-error, Ibanez realized the out-of-the-box X-M Bracing to generate the ultimate sound standing out on the stage. The carefully designed scalloped X-bracing, the allocation of tone braces, and finger braces transmit the string vibration efficiently through the bridge to the body. The X-M Bracing creates the clear bottom and crispy treble sound with trimmed warm mid-range, yet provides a wide dynamic range and high response.

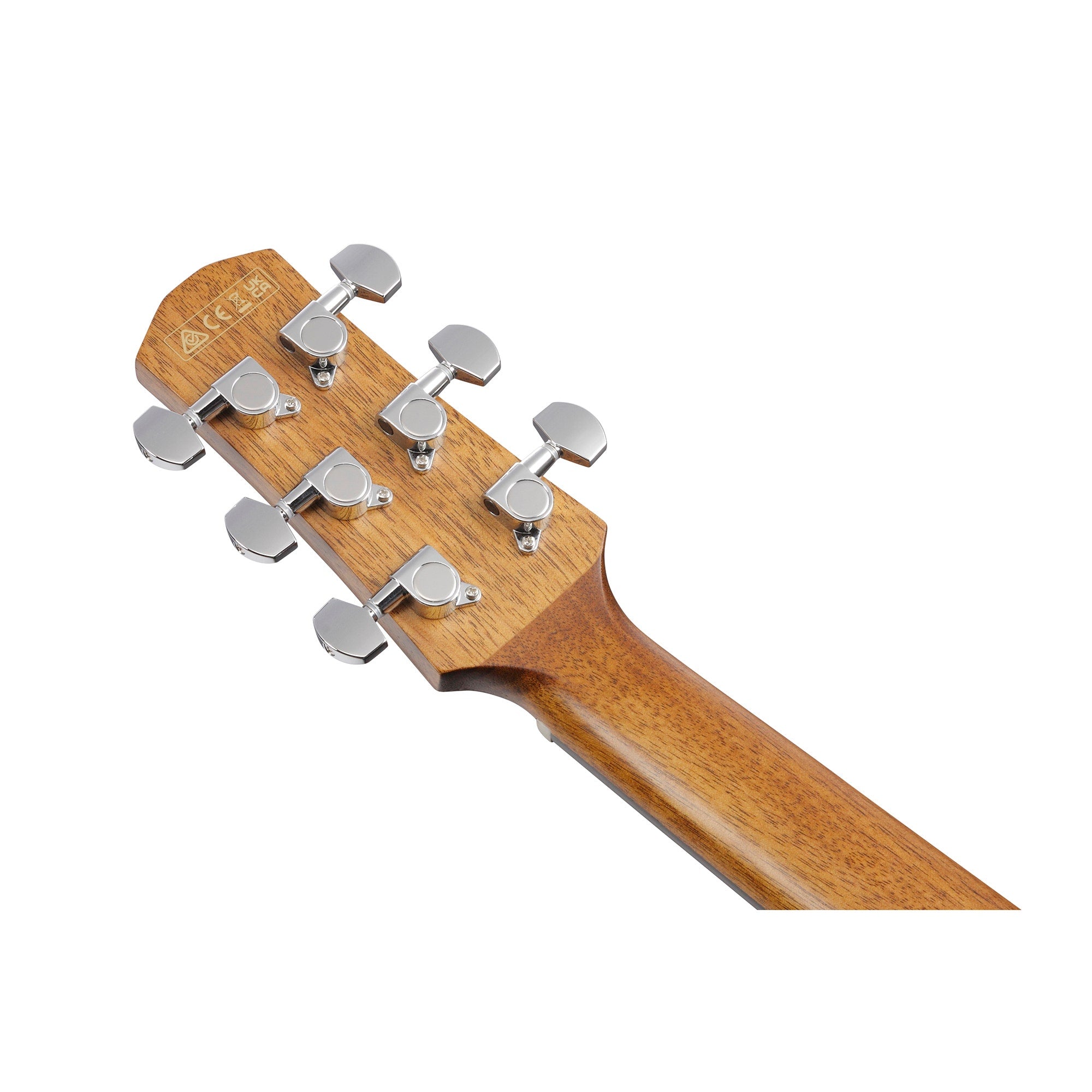

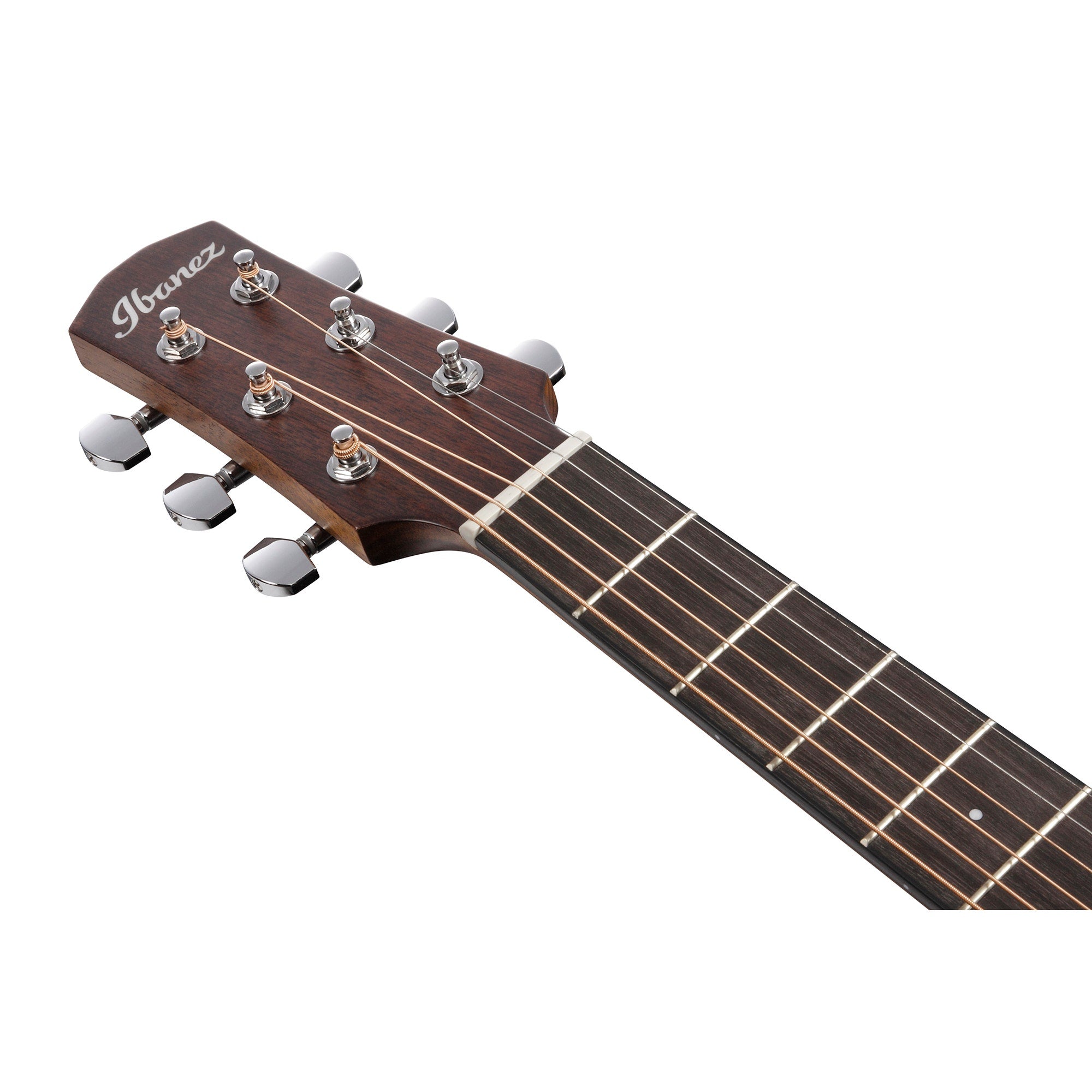

Functional Tapered Headstock

The newly designed headstock shape is the result of thorough research and investigation. Its tapered shape provides lighter weight, as well as a straight string alignment which enhances tuning stability and reduces any neck twisting effect

Advanced Access Cutaway

Its deep straight cutaway (from 18th fret) and shaved side enable amazing high fret access."

GENERAL

• body shape: Advanced Auditorium with Advanced Access Cutway body
• bracing: X-M Bracing
• top: Solid Sitka Spruce top
• back & sides: Macassar Ebony back & Macassar Ebony sides
• neck: Low Oval GripOkoume neck
• fretboard: Purpleheart fretboard
• bridge: Purpleheart bridge
• body binding: Rounded body edge binding
• inlay: White dot inlay
• soundhole rosette: Abalone rosette with Black & White multi
• tuning machine: Chrome Die-cast tuners (18:1 gear ratio)
• number of frets: 20
• bridge pins: Ibanez Advantage™
• strings: D'Addario® EXP16
• string gauge: .012/.016/.024/.032/.042/.053
• string space: 11mm
• factory tuning: 1E,2B,3G,4D,5A,6E
• pickup: Ibanez T-bar Undersaddle
• preamp: Ibanez AEQ-TP2 preamp w/Onboard tuner

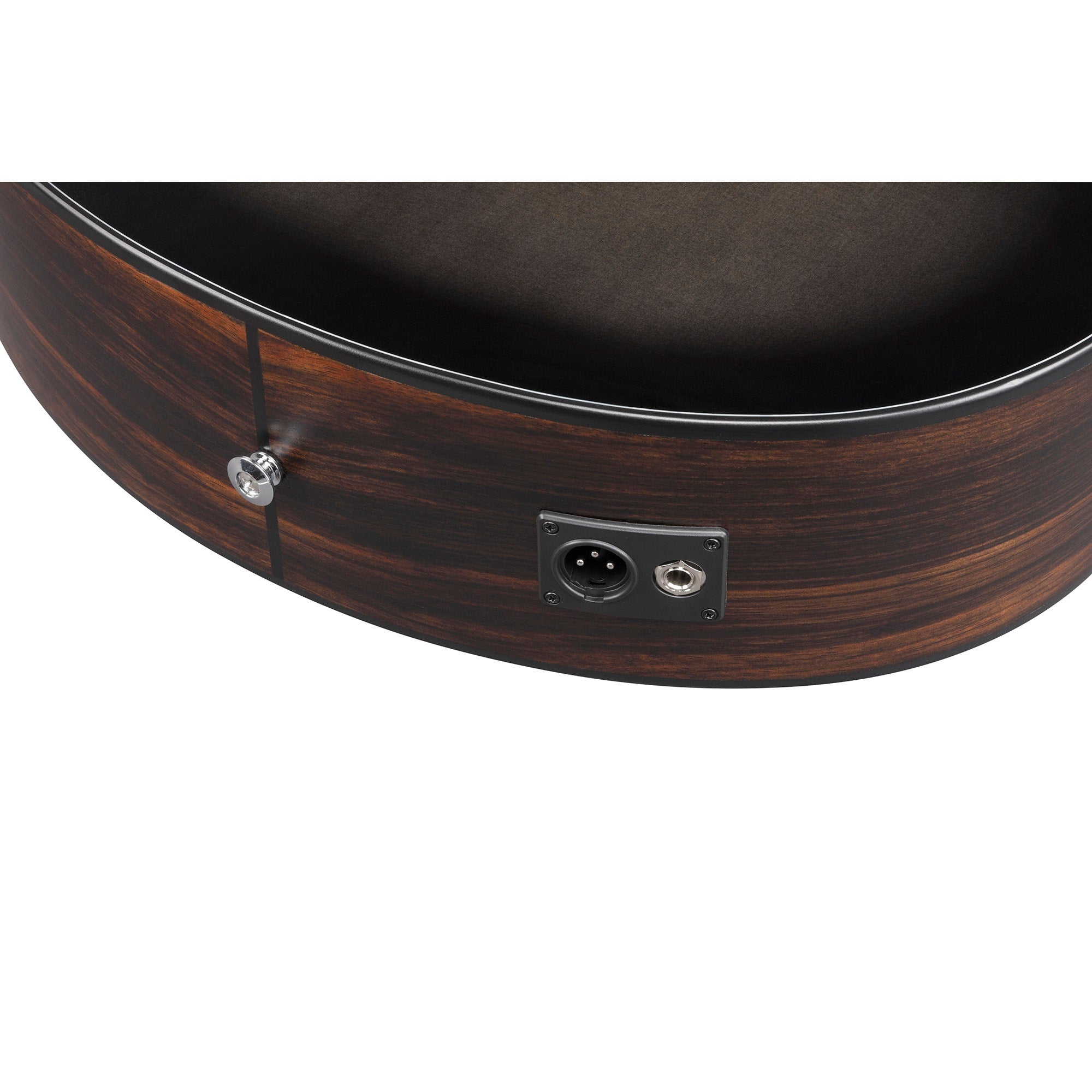

• output jack: Balanced XLR & 1/4" outputs
• battery: 9V x1



NECK DIMENSIONS

• Scale : 634mm/25"
• a : Width 43mm at NUT
• b : Width 55mm at 14F
• c : Thickness 21mm at 1F
• d : Thickness 22mm at 7F
• Radius : 400mmR

The above photos may not be of the exact guitar you'll receive. Figured tops, serial numbers, and instrument weights may differ. Please feel free to reach out for these and other in-hand details.
