Used Electro Harmonix Switchblade + Plus Channel Selector Foot Switch A/B Pedal(Open Box)

Customer return, good condition, but the packaging won't pass as new.

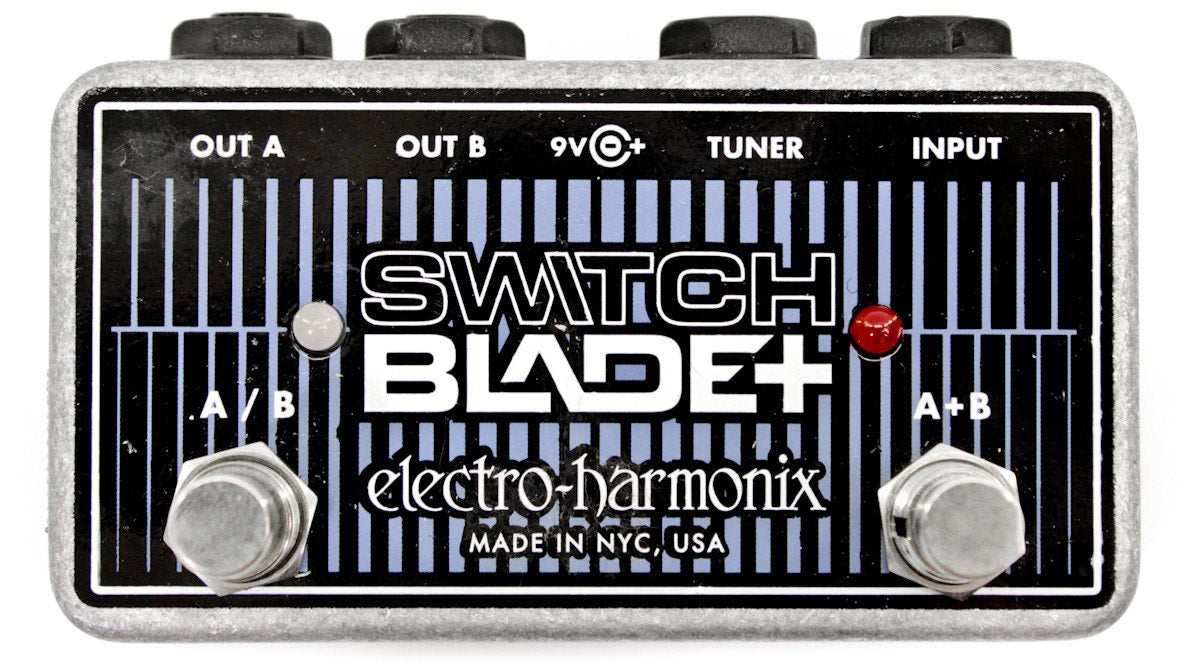

Electro Harmonix Switchblade + Plus Channel Selector Foot Switch A/B Pedal(Open Box)

The Switchblade+ offers a convenient solution to a players switching needs. Route your signal to either output A or B, or send it to both at once. Connect a tuner or effects pedal to its dedicated Tuner output. With a fully passive audio path and active LED indication, the new Switchblade+ is your utilitarian sidekick.

Controls

A/B Footswitch (LED) Press this switch to route the input signal to either OUT A (Red LED) or OUT B (Green LED).

A+B Footswitch (LED) Press this switch to route the input signal to both OUT A and OUT B. When A+B is engaged (Red LED), the A/B Footswitch has no effect on the signal path.

I/O

INPUT Connect the output of your instrument or another effects pedal to this jack.

TUNER Connect this jack to the input of a tuner device or another effects pedal. This jack is hardwired to the INPUT jack and provides a direct output regardless of the

state of the unit.

OUT A Connect this jack to the input of an amplifier or the input of another effects pedal. Depending on the state of the A/B and A+B controls, this jack will output either the direct input signal or no signal. When the A/B LED is lit red or the A+B LED is lit up, OUT A is selected.

OUT B Connect this jack to the input of an amplifier or the input of another effects pedal. Depending on the state of the A/B and A+B controls, this jack will output either the direct input signal or no signal. When the A/B LED is lit green or the A+B LED is lit up, OUT B is selected.

Power -

The SWITCHBLADE+ can be powered by a 9V battery or a 9VDC battery eliminator capable of delivering at least 16mA. The optional 9V power supply from Electro-Harmonix is 9.6DC-200BI (same as used by Boss® & Ibanez®) 9.6 Volts DC 200mA. The power supply must have a barrel connector with center negative.

The SWITCHBLADE+ can also operate without power, since the audio path is fully passive. With no power, however, the LED indication will not function.

When A+B is engaged, the input impedance at the INPUT jack is equal to 50k in parallel with the combined input impedances of the devices connected to the TUNER, OUT A, and OUT B jacks. When A+B is not engaged, the input impedance at the INPUT jack is equal to 100k in parallel with the combined input impedances of the devices connect to the TUNER jack and OUT A or OUT B.Route your signal to output A or output B or both simultaneously

Easily switch between different pedal boards

The tuner jack is hardwired to the input jack and provides a direct output for a tuner or other effects regardless of the state of the unit

The audio path is completely passive

The Switchblade Plus can be powered by a 9 volt battery or 9VDC eliminator
