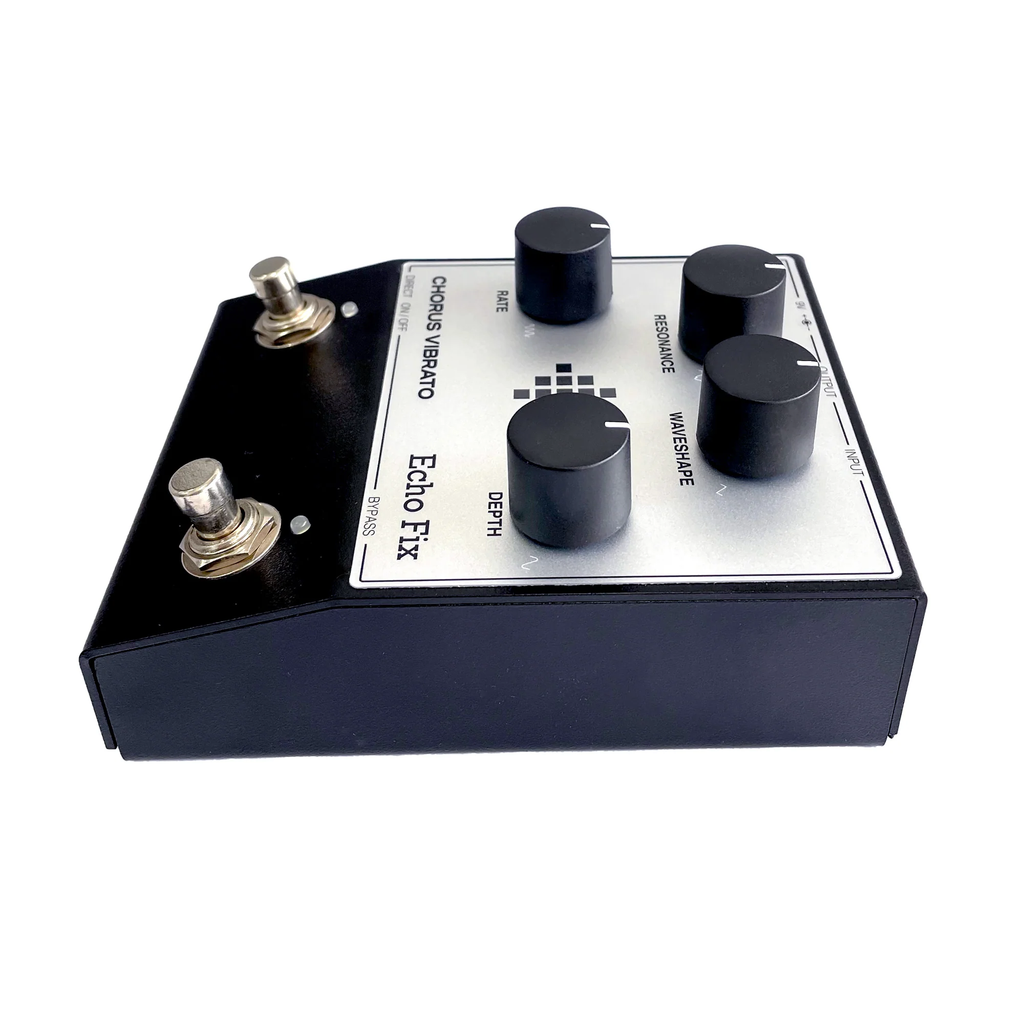

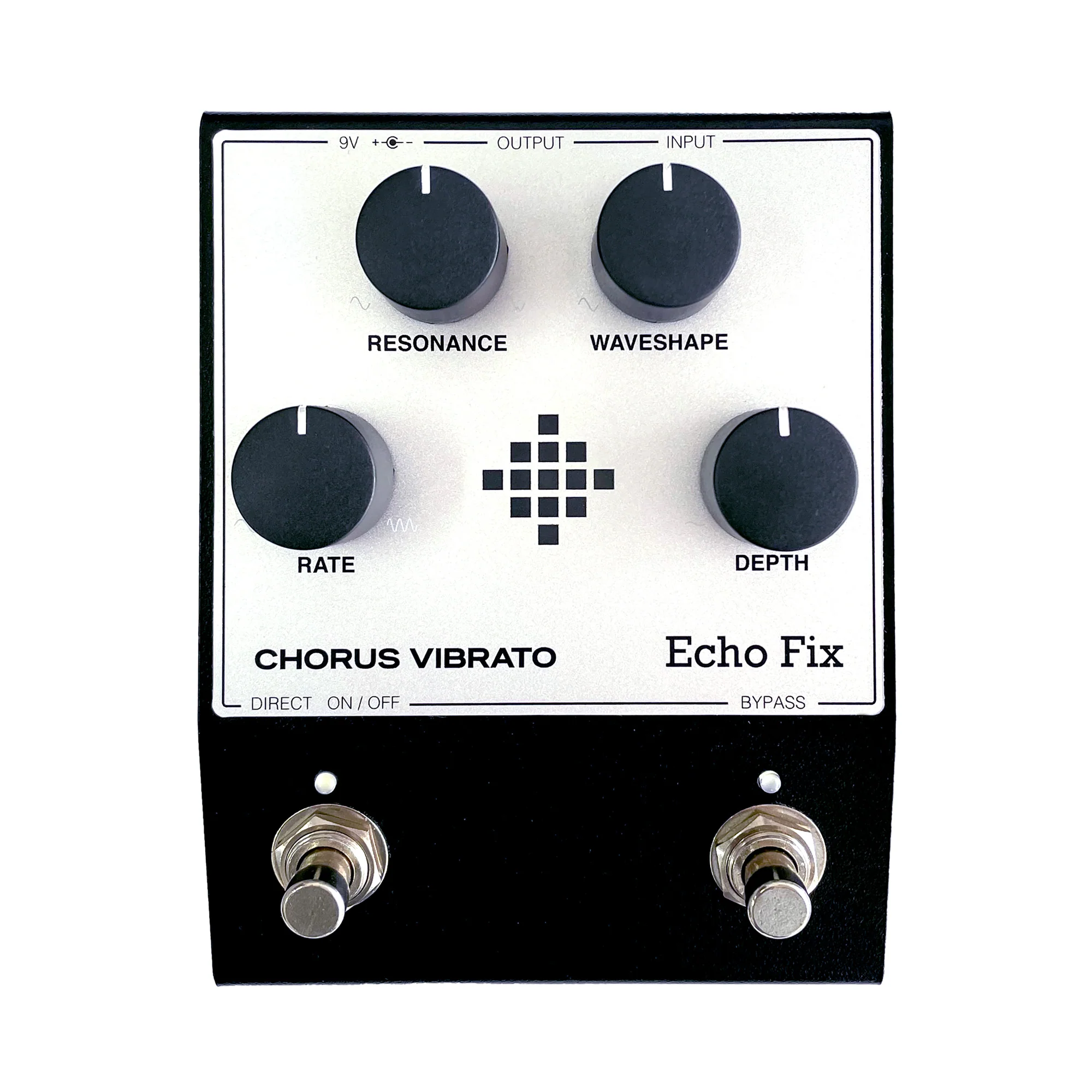

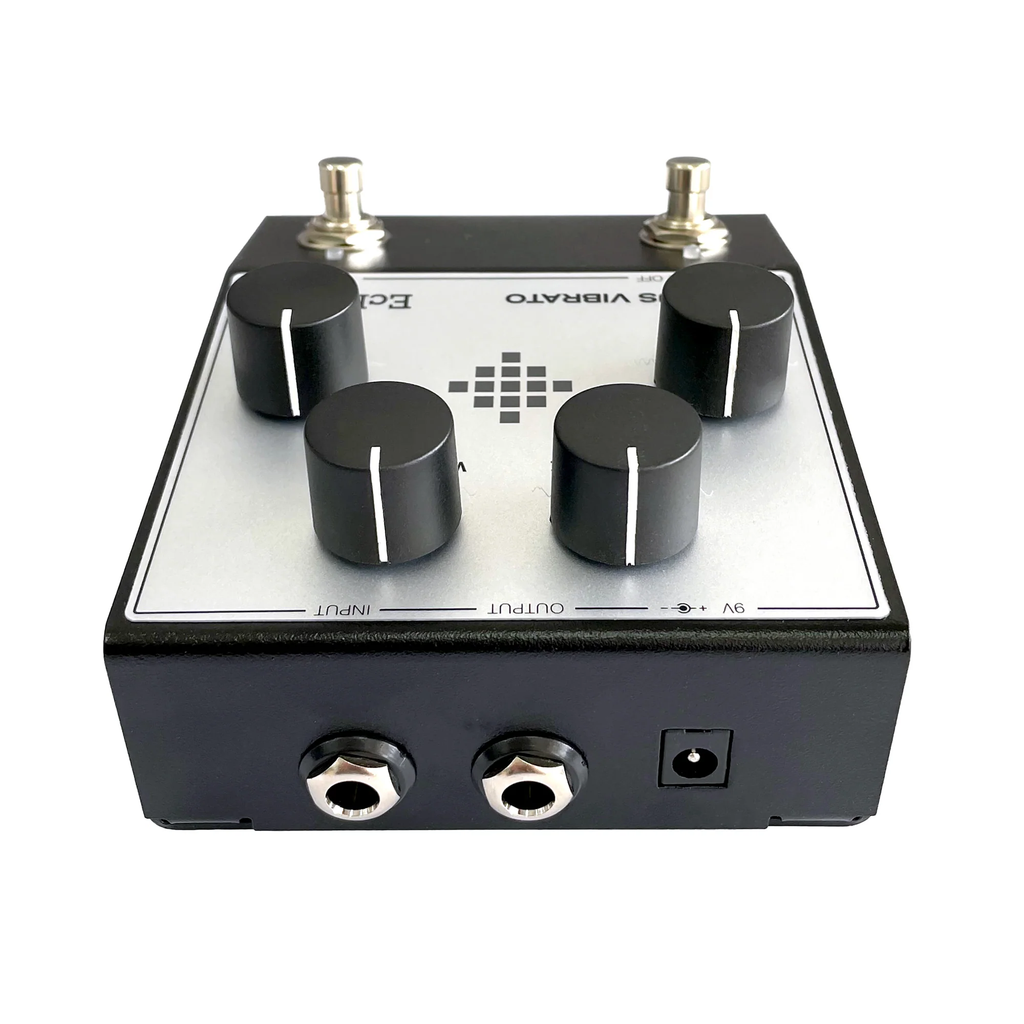

New Echo Fix EF-P3 Analog BBD Chorus / Vibrato Guitar Effects Pedal

The Echo Fix EF-P3 Chorus Vibrato pedal is an analog BBD Chorus pedal with a rich and extended feature set.

Designed to be the ultimate chorus pedal, each control has been extended in range for sonic flexibility. From subtle pitch glides to fast Leslie-style wobbles, the wide range of controls makes this pedal extremely versatile and creative.

Features

• Rate Control
• Depth Control
• Resonance Control
• Wave Shape Control
• LED Rate Indicator
• LED Overload Indicator
• Direct Mute Footswitch for Vibrato mode
• Soft momentary switching for noiseless Bypass and Direct Mute switching
• Increased internal power supply voltage rails for increased dynamic range

• Power - 9VDC Centre Negative
• Current - 200mA minimum
• Input Impedance - 1MΩ
• Output Impedance - 1KΩ
• Dimensions - 100mm x 130mm x 60mm (3.93" x 5.11" x 2.36")
