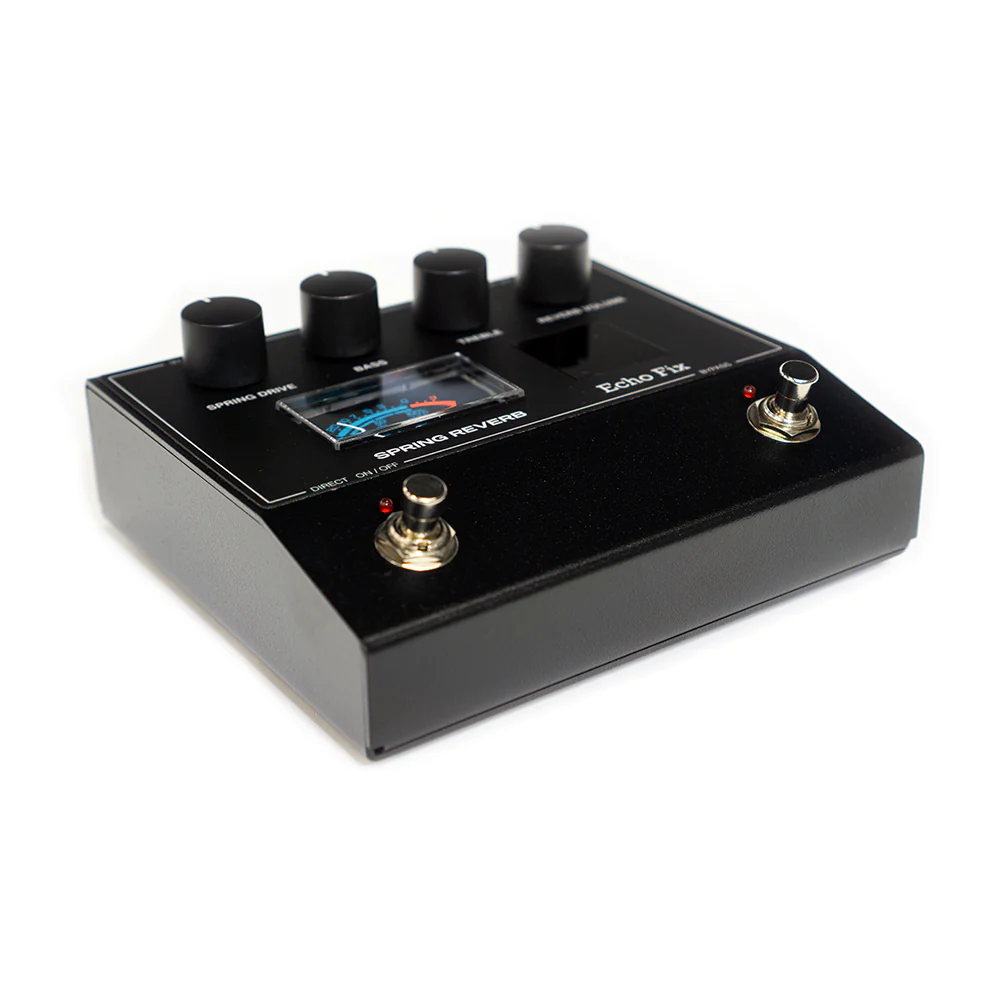

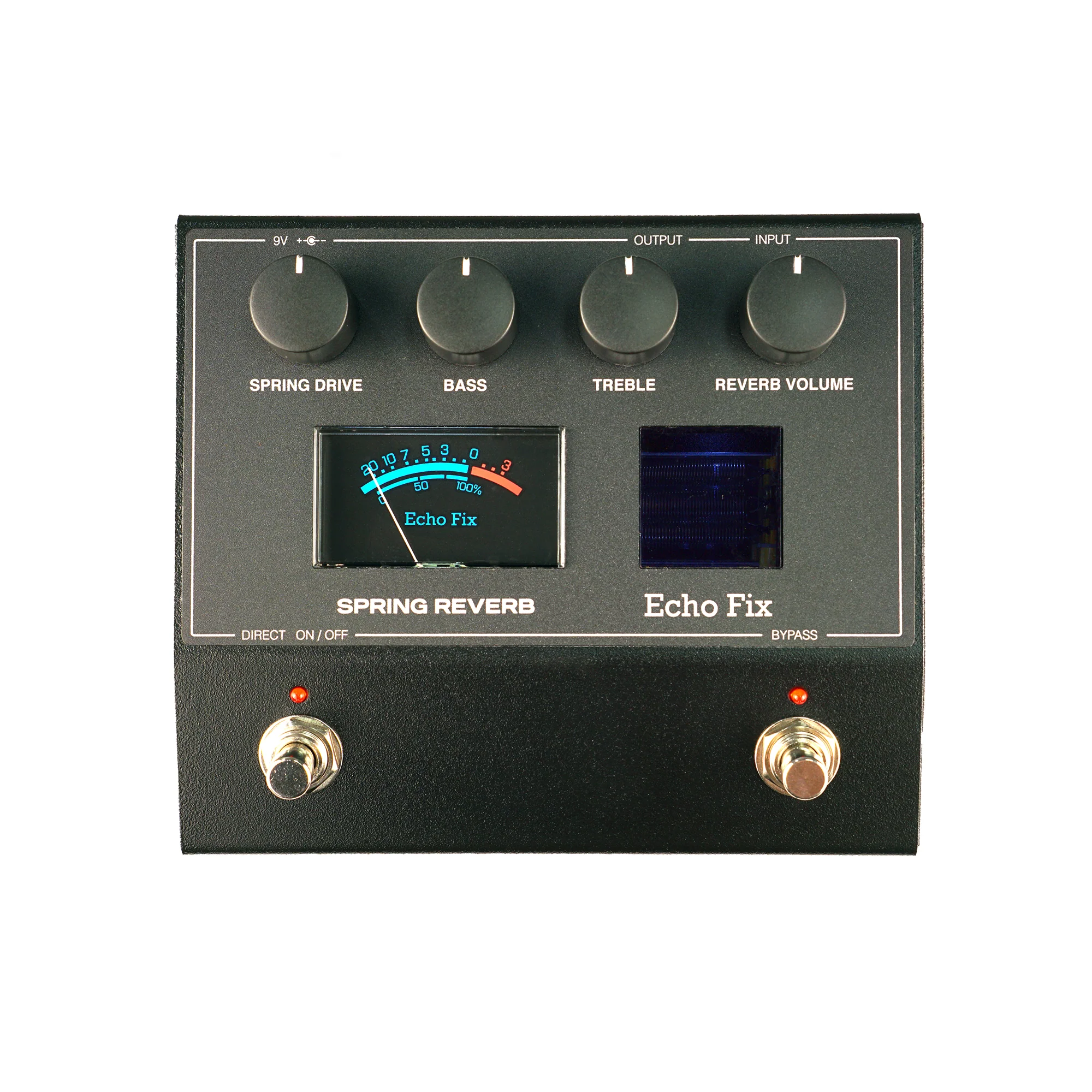

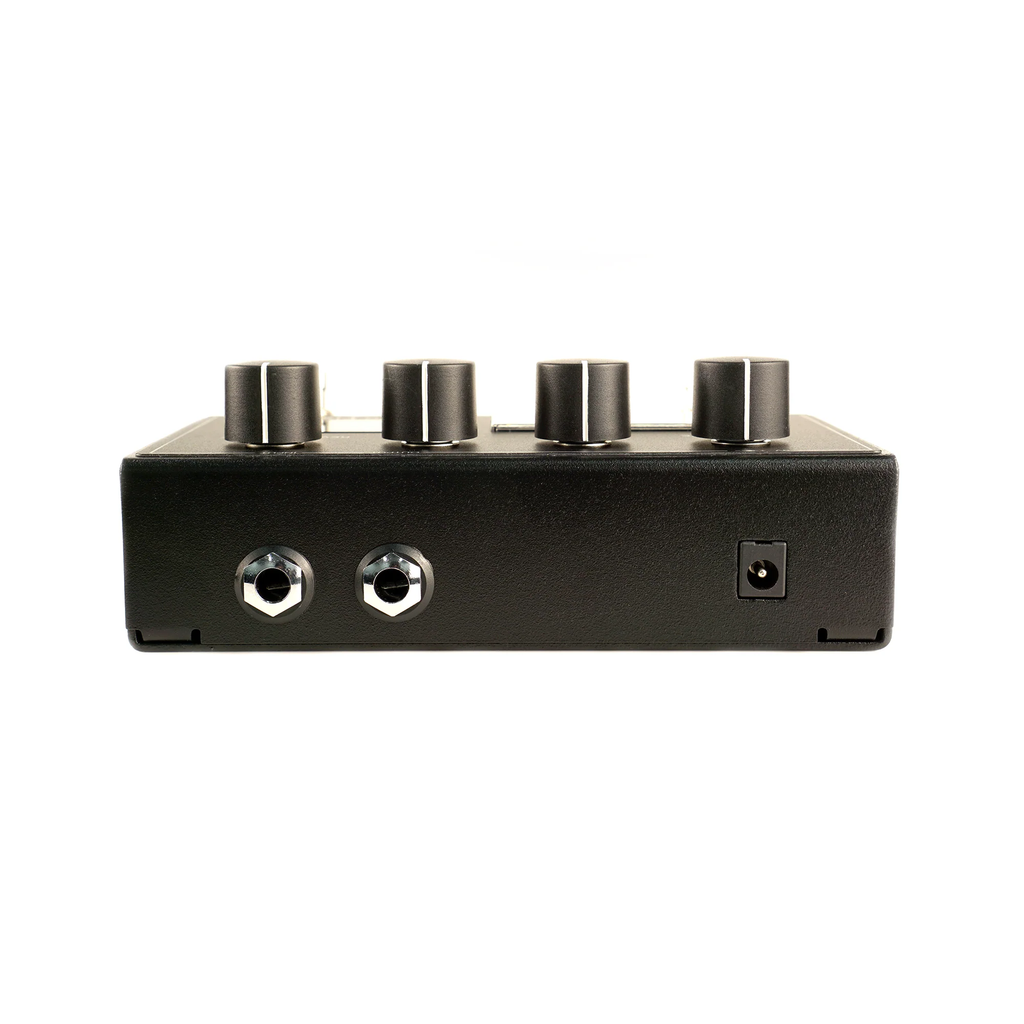

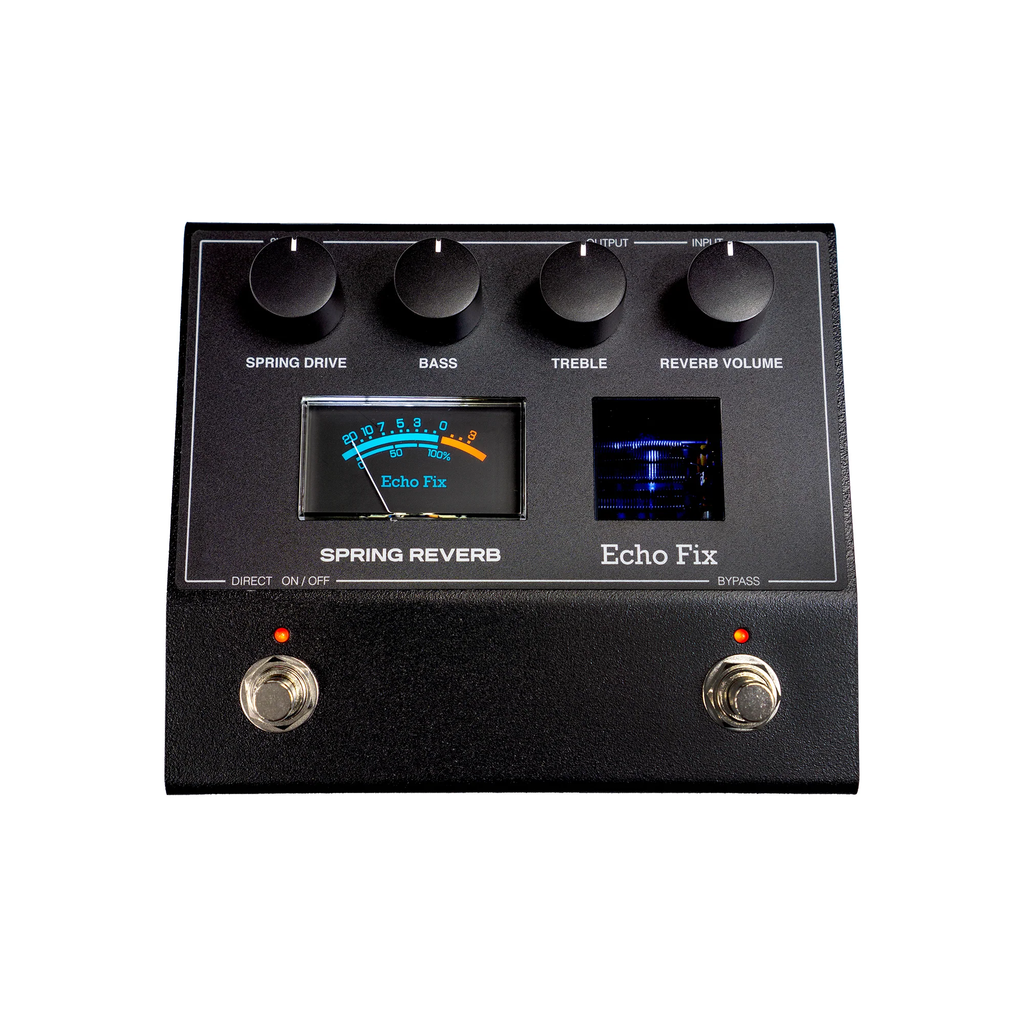

New Echo Fix EF-P2 Analog Spring Reverb Guitar Effect Pedal

The Echo Fix EF-P2 is a real Spring Reverb pedal that packs a huge sound into a small enclosure. The EF-P2 features a three-spring reverb tank, adjustable Spring Drive, Bass / Treble EQ controls, and Reverb Volume control. With a footswitch for reverb bypass and also a direct signal mute footswitch, the EF-P2 can also be used as an outboard effect in recording studios. The EF-P2 can accept audio signal from synths and other audio devices, not just guitar.

Features

• Real spring reverb pan
• 100% Analog Signal Path
• Spring drive control
• Bass control
• Treble control
• Reverb Level Control
• Soft momentary switching for noiseless Bypass and Direct Mute switching
• Increased internal power supply voltage rails for increased dynamic range
• Illuminated reverb tank viewing window

• Power - 9VDC Centre Negative
• Current - 200mA minimum
• Input Impedance - 1MΩ
• Output Impedance - 1KΩ
• Dimensions - 160mm x 130mm x 60mm (6.29" x 5.11" x 2.36")
