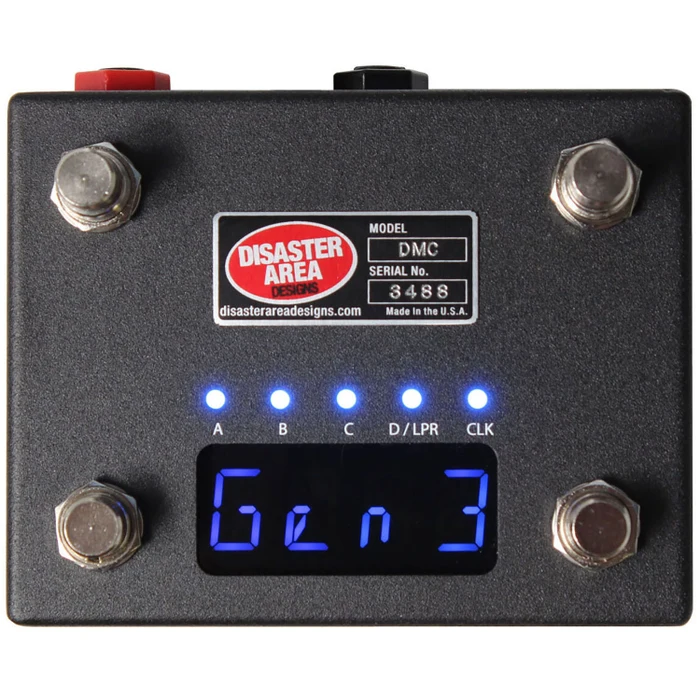

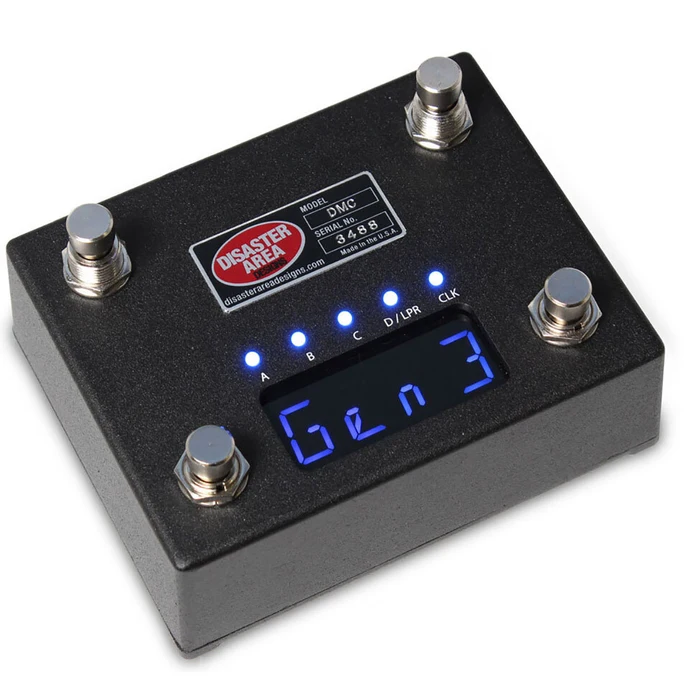

New Disaster Area DMC-4 Gen3 Compact MIDI Controller Pedal with Hot Switch

Control up to four MIDI devices with the DMC-4 Gen3. Select presets, send expression pedal data, control your device’s looper modes, and more. User-definable Hot Switch allows instant functionality in any mode.

The DMC-4 Gen3 uses our advanced Gen3 technology in a compact footprint - just 4.7” x 3.7” x 1.4” (120mm x 94mm x 35mm)

Featuring up to nine control modes, the DMC-4 Gen3 is designed to interface with up to four MIDI devices.

Device Control:  Program select and bypass for up to four devices.

Looper Control: Controls the looper on the Strymon Timeline, Eventide H9 / Timefactor, or Line 6 M9/M13.

Utility: User-set actions on left and right buttons (2 commands per button)

Preset: Stores programs from Device Control pages and allows the user to change multiple devices at once.

Set List: Allows the user to re-arrange Preset scenes on the fly

Clock: Access the DMC-4’s built-in MIDI clock and tap tempo interface

Hot Switch: Upper-left switch is user-definable to access tap tempo, favorite preset, hold / freeze, and more.

Features

• Bright blue LED display indicates program number, status, and more
• One 5-pin MIDI port supports MIDI out using a standard MIDI cable, or MIDI input and output using our MIDI Y-Cable.
• One MultiJack connector can function as Expression Pedal input, Tap Tempo Output, Function Switch Output, Footswitch Input, or MIDI Output.
• One Expression connnector can function as Expression Pedal input, Function Switch input, or MIDI output.
• Internal DIP switches to customize MultiJack functions.
• Up to 99 user-accessible presets (if preset page is active.)
• Controls up to four MIDI devices
• Looper control page
• Programmable MIDI clock and tap source to synchronize tempo on multiple pedals
• User-definable Utility page sends any MIDI CC command, MIDI notes, bank up and down, more.
• Optional side roller sends expression data to your connected MIDI devices
• USB MIDI or USB Host connection for advanced control possibilities
• Runs on standard 9V power, 60mA minimum.

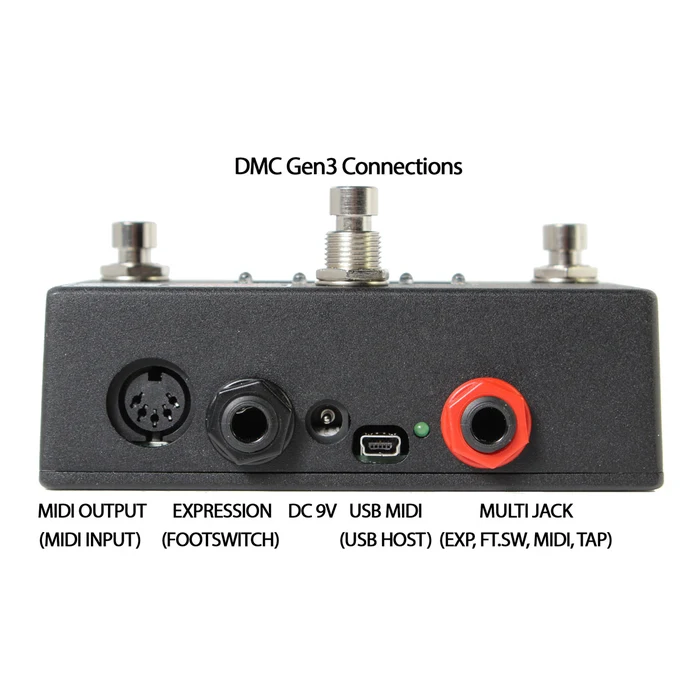

The DMC-4 Gen3 also features our astounding MultiJack connector, which can perform several different functions to simplify your setup!

• Connect one or two 1/4″ MIDI devices from companies such as Alexander Pedals, Chase Bliss Audio, Empress, and Meris
• Connect an expression pedal to send MIDI messages to one or more of your devices.
• Connect an external footswitch for tap tempo control.
• Send tap tempo to an external device such as a DD-7, Panther Cub, Flint, and more.

• Size: 4.7” x 3.7” x 1.4” (120mm x 94mm x 35mm)
• 5-pin MIDI Port (requires MIDI Y-Cable for MIDI input)
• MultiJack
• Expression Pedal input
• USB port (requires gHOST adapter for USB HOST)
• Controls up to four MIDI devices
• Power: 9V DC, 100mA or less
• LED display
• Five status LEDs
• Soft-touch footswitches
• Preset, device, looper, clock, setlist, and UTIL modes
• Hot Switch programmable for tap tempo, favorite preset, hold / freeze, more
