New DigiTech HammerOn 7-Mode Pitch Jump, Pitch Shifter & Harmony Guitar Effect Pedal

The DigiTech HammerOn is a versatile effects pedal with an amazing amount of flexibility and options to create and channel your musical ideas. Take the time to get to know the many options and see if it sparks new creative ideas.

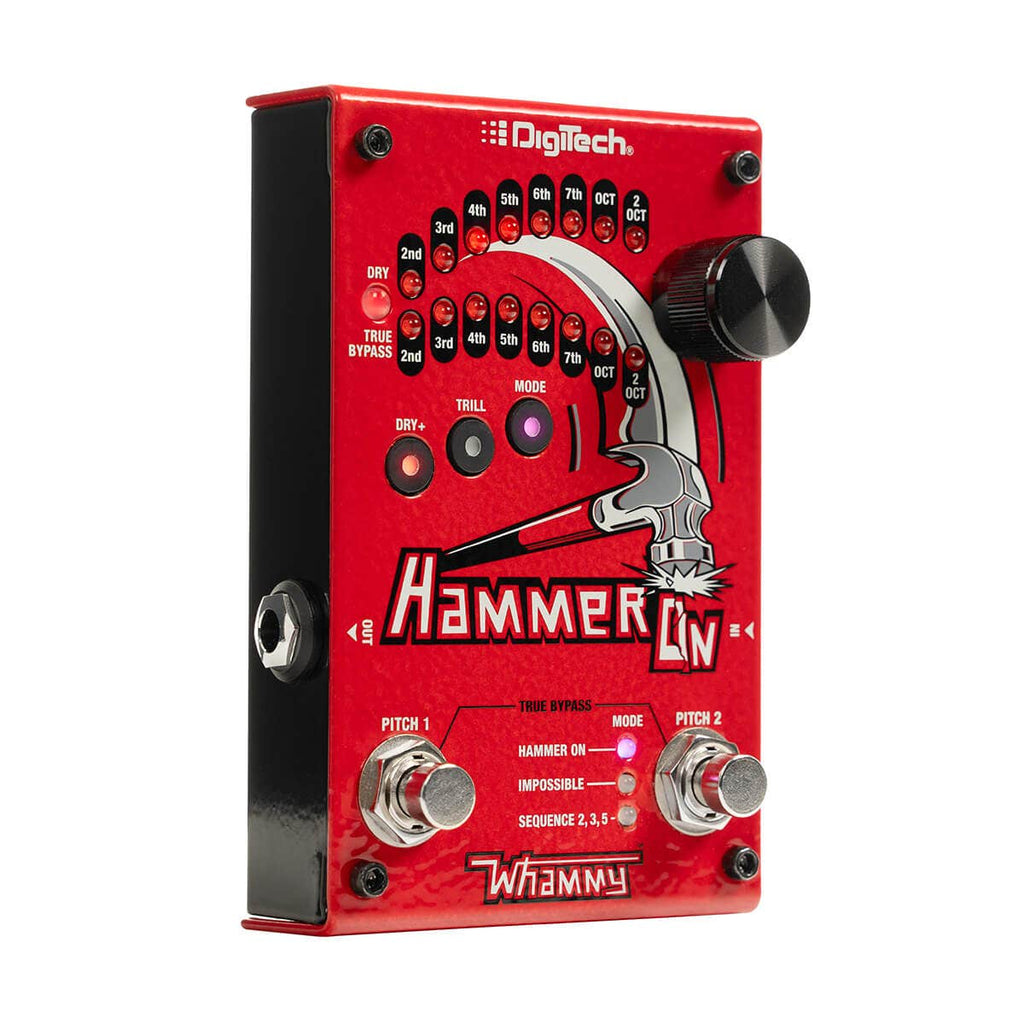

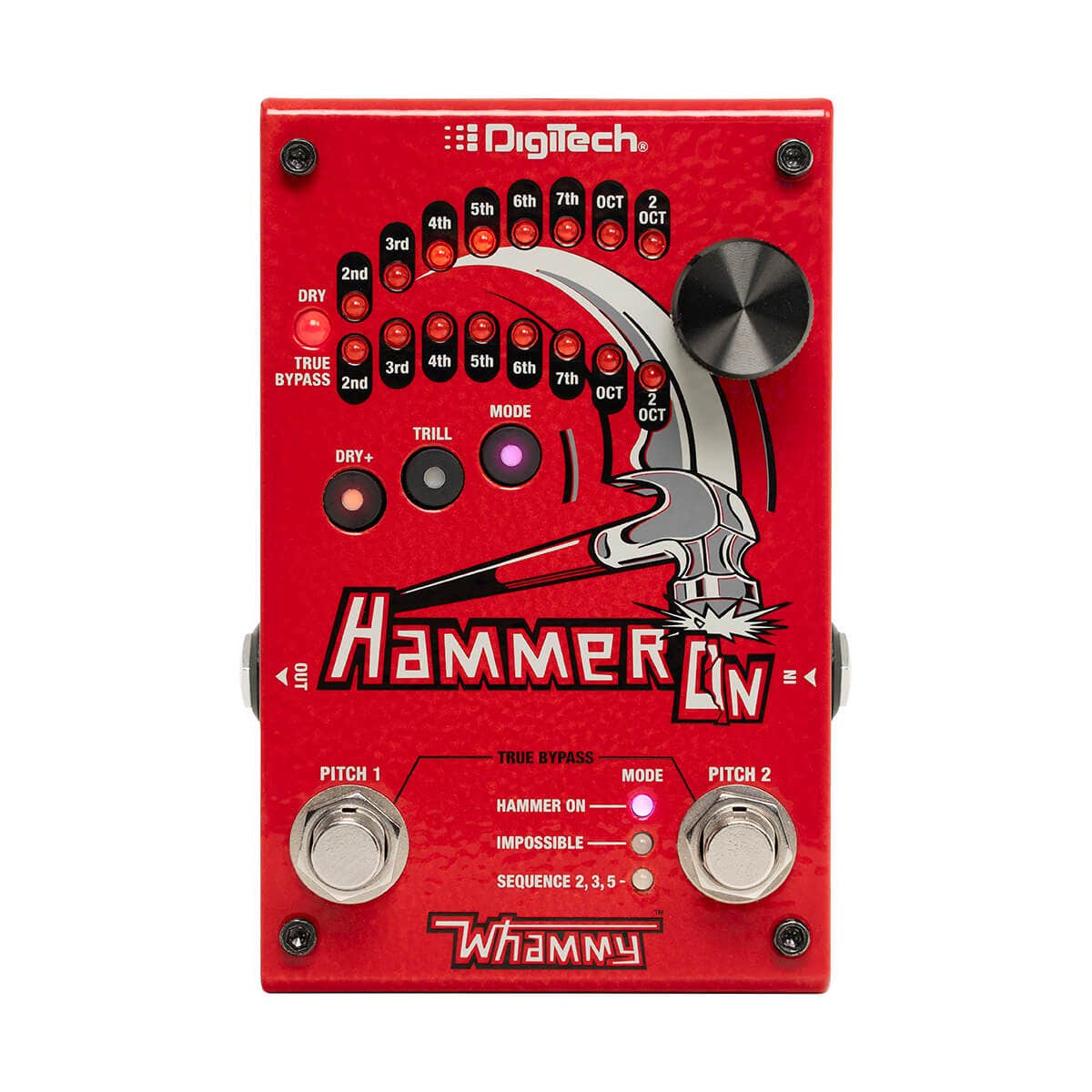

The PITCH 1 footswitch is dedicated to always be a hammer-on selectable momentary pitch shift above or below what you are playing. PITCH 2 footswitch has 3 different modes of operation selectable using the MODE button. There is a button called DRY+ that can turn on the dry signal and a button called TRILL that can mimic rapid presses of the footswitches.

• With all these options it’s like having 7 pedals in one:
• HAMMER-ON: An instantaneous momentary pitch shifter pedal
• HAMMER-ON with TRILL: A rapid fire hammer-on action pedal
• HARMONY-ON: An instantaneous harmony creation pedal
• The IMPOSSIBLE Pedal: A dual alternating momentary pitch shift pedal
• DROP/CAPO SEQUENCE:  A multi-setting pitch transposition pedal
• SEQUENCE with TRILL:  An automatic guitar riff sequencer
• SEQUENCE with DRY and TRILL:  An automatic techno guitar sequencer

Hands-free
Hammer-Ons

Hammer-on notes in conjunction with your hands to create never-before-heard licks and riffs — the only limit is your imagination.

Independent programmable footswitches

Instantly jump to a new pitch, engage the sequential pitch sequencer, and much more.

7 pedals in 1

Seven modes range from pitch jumps and harmony effects to pitch sequences and drop/capo tunings — HammerOn is like seven pedals in one.

Play the Impossible

Impossible Mode allows you to hammer-on pitch shifts that alternate between two selectable pitch amounts.

Electronics

• Sample Rate: 44.1 kHz in classic mode, 22 kHz in chords mode
• Frequency Response: 20 Hz-16 kHz (classic mode), 20 Hz-11 kHz (chords mode)
• Signal to Noise Ratio: > -106dB (A weighted); ref = max level, 22 kHz bandwidth
• THD: 0.004% @ 1kHz; ref= 1 dBu w/ unity gain
• A/D/A Conversion: 24-bit



Input / Output

• Input Type: 1/4” Unblanaced TS
• Max Input Level: +5 dBu
• Input Inpedance: 1MΩ
• Output Type: 1/4” Unblanaced TS
• Max Output Level: +10 dBu
• Output Impendance: 1kΩ (Effect enabled or effect bypassed), True Bypass


Physical

• Dimensions: 5.12”(13.00cm) x 3.57”(9.06cm) x 1.84”(4.67cm) (L x W x H)
• Weight: 1.12 lbs. (508g)



Power

• Power Consumption: 2.3 Watts (258 mA @ 9VDC) typical
• Power Requirements: External Adapter (included), 9 VDC 1300 mA
