New BOSS RT-20 Rotary Speaker Sim Ensemble Sound Processor Guitar Effects Pedal

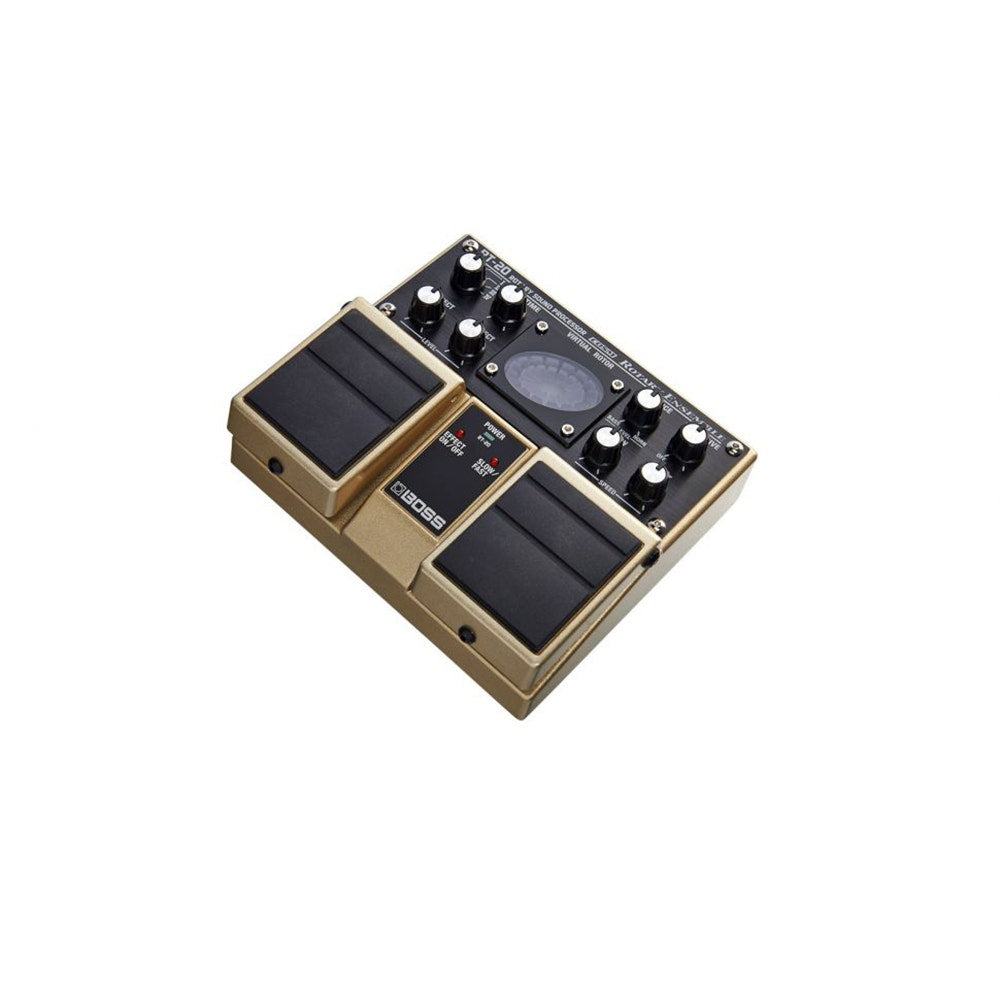

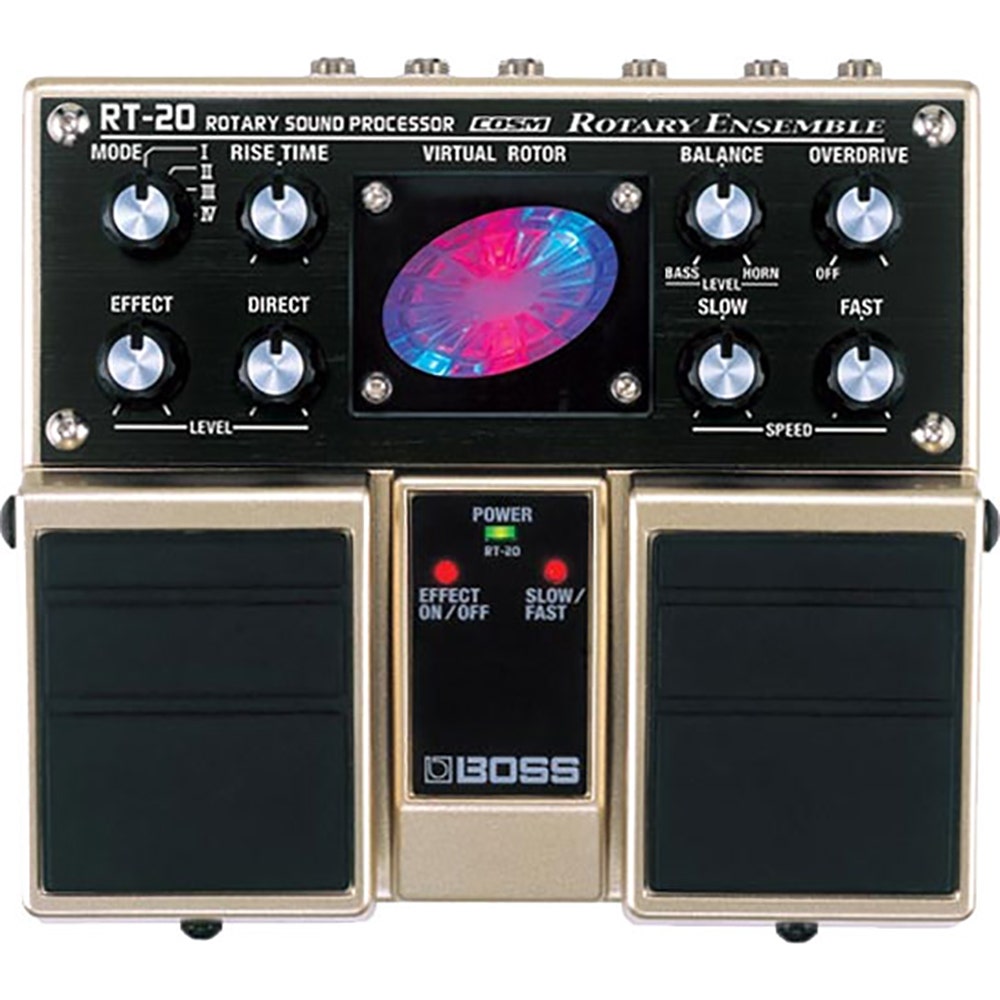

BOSS RT-20 Rotary Ensemble Sound Processor Guitar Effects Pedal

From the Beatles to Jeff Beck, Santana to Stevie Ray, many guitar greats have incorporated the rotary speaker into their rigs. With this in mind BOSS proudly presents the RT-20 Rotary Sound Processor. Employing COSM-modeling technology, the RT-20 authentically reproduces classic rotary-speaker sounds. It offers adjustable Rise Time, Horn and Bass speed, Overdrive, and more. And not just for classic twirl, the RT-20 can be used to create unique overdrive and pulsating effects as well. This pedal sounds amazing, and offers a stunning graphical view of the virtual rotors on its built-in display.

Features

Nominal Input Level   -20 dBu

Input Impedance   1 M ohms

Output Impedance   1 k ohms

Recommended Load Impedance   10 k ohms

Display   VIRTUAL ROTOR

Controls   EFFECT ON/OFF pedal, SLOW/FAST pedal, MODE knob, RISE TIME knob,                   EFFECT LEVEL knob, DIRECT LEVEL knob, BALANCE knob, OVERDRIVE knob, SLOW SPEED knob, FAST SPEED knob, DRIVE TYPE switch

Indicators   POWER(serves also as battery check indicator), EFFECT ON/OFF, SLOW/FAST

Connectors   INPUT A (MONO) jack (1/4 inch phone type), INPUT B jack (1/4 inch phone type), SPEED (EXP PEDAL) jack (1/4 inch phone type), PHONES jack (stereo 1/4 inch phone type), OUTPUT A (MONO) jack (1/4 inch phone, type), OUTPUT B jack (1/4 inch phone type), AC Adaptor jack

Power   DC 9 V=Dry battery (R6/LR6 (AA) type) x 6, AC Adaptor (PSA-series)

Accessories   Owner’s Manual, Dry battery x 6

Options   AC Adaptor (PSA-series),Expression Pedal (EV-5)

Size and Weight ( including batteries )

Width   173 mm
             6-13/16 inches

Depth   158 mm
             6-1/4 inches

Height   57 mm
              2-1/4 inches

Weight   1.1 kg
               2 lbs. 7 oz.
