New Boss RE20 Space Echo COSM Twin Pedal

Boss RE20 Space Echo COSM Twin Pedal

The Rebirth of a Roland Classic

One of the most beloved echo effects ever made, the Roland RE-201 Space Echo, has been reborn as the BOSS RE-20 Twin Pedal! Roland and BOSS have recreated every sonic detail and nuance of the original. Experience the legendary tape-echo sound of the RE-201, and get “lost in space” with this retro-modern marvel.

Features

• Amazing simulation of the famous Roland RE-201, with the spacious, analog tone of the original Space Echo
• Faithful modeling of the RE-201’s tape flutter and magnetic head sound saturation
• Tap input pedal allows delay time to be set by foot
• Longer delay time than the original RE-201
• Control parameters such as REPEAT RATE, INTENSITY, and more via Expression pedal
• MODE SELECTOR knob with 12 placements just likes the original Space Echo

Nominal Input Level

-20 dBu (INPUT VOLUME knob: center), max +4 dBu

Input Impedance

1 M ohms

Nominal Output Level

-20 dBu

Output Impedance

1 k ohms

Recommended Load Impedance

10 k ohms or greater

Display

Virtual Tape Display

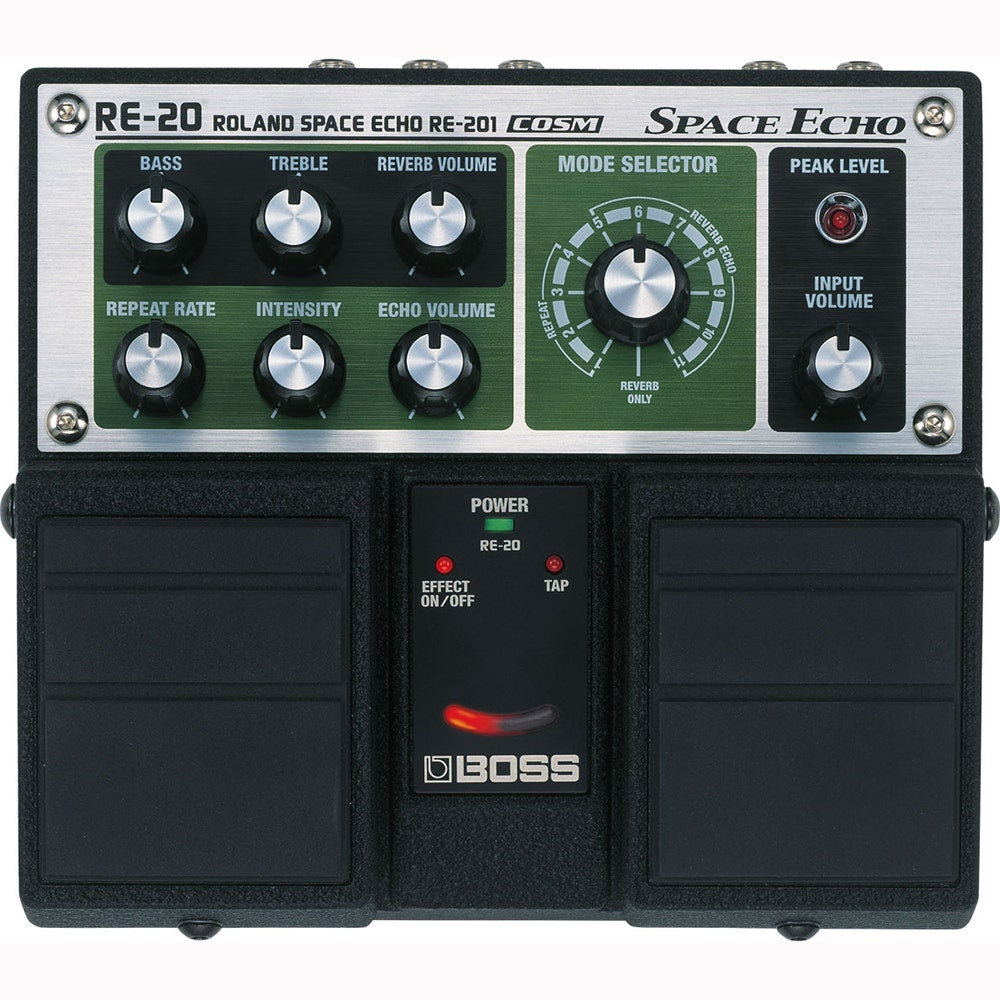

Controls

EFFECT ON/OFF pedal
TAP pedal
BASS knob
TREBLE knob
REVERB VOLUME knob
REPEAT RATE knob
INTENSITY knob
ECHO VOLUME knob
MODE SELECTOR knob
INPUT VOLUME knob
DIRECT switch

Indicators

POWER indicator (serves also as battery check indicator)
PEAK LEVEL indicator
EFFECT ON/OFF indicator
TAP indicator

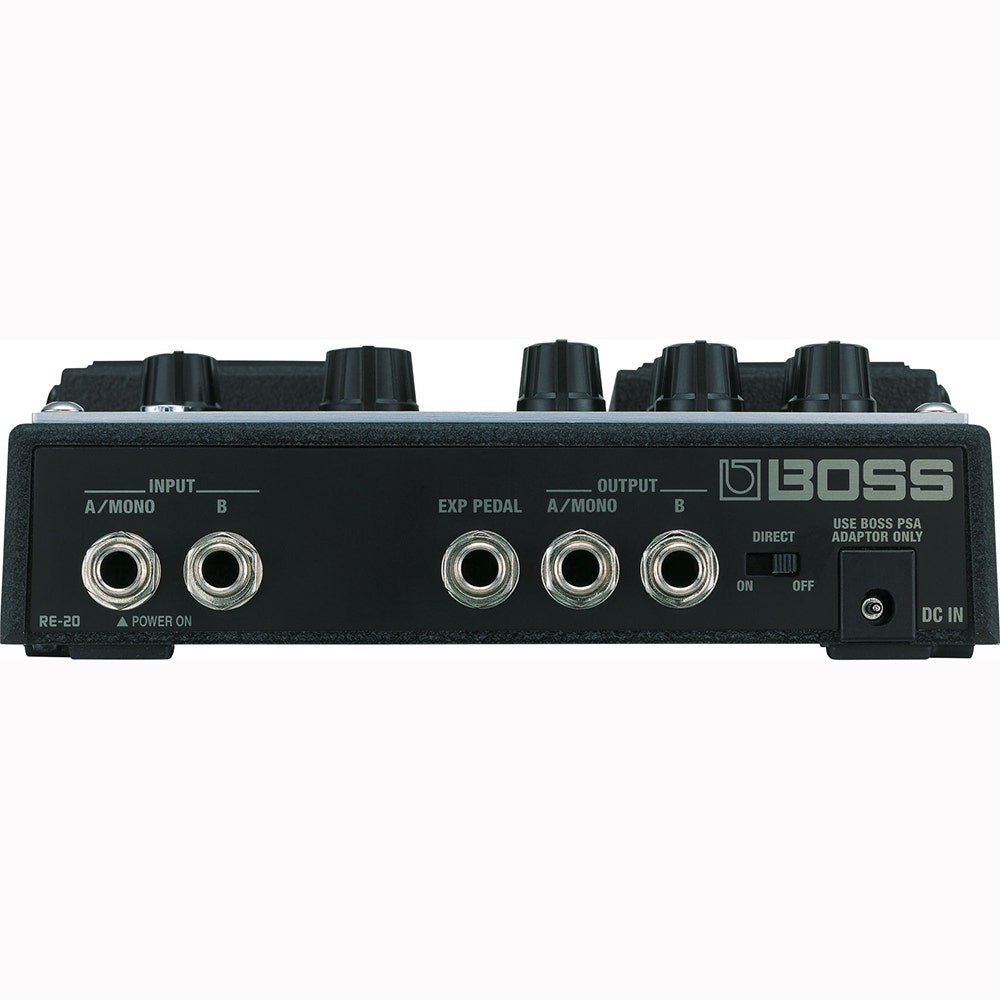

Connectors

INPUT jacks A/MONO, B (1/4-inch phone type)
OUTPUT jacks A/MONO, B (1/4-inch phone type)
EXP PEDAL jack (1/4-inch TRS phone type)
DC IN jack (DC 9 V)

Power Supply

DC 9 V: Dry battery LR6/R6 (AA) type x 6, AC Adaptor (PSA series)

Current Draw

75 mA (9 V max.)
* Expected battery life under continuous use: Carbon: 9 hours, Alkaline: 32 hours
These figures will vary depending on the actual conditions of use.

Accessories

Owner’s Manual
Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
Dry battery R6 (AA) type (carbon) x 6

Options (sold separately)

AC Adaptor (PSA series)
Expression pedal (Roland EV-5)

Size and Weight ( incl. battery )

Width

173 mm
6-13/16 inches

Depth

158 mm
6-1/4 inches

Height

57 mm
2-1/4 inches

Weight

1.2 kg
2 lbs. 11 oz.
