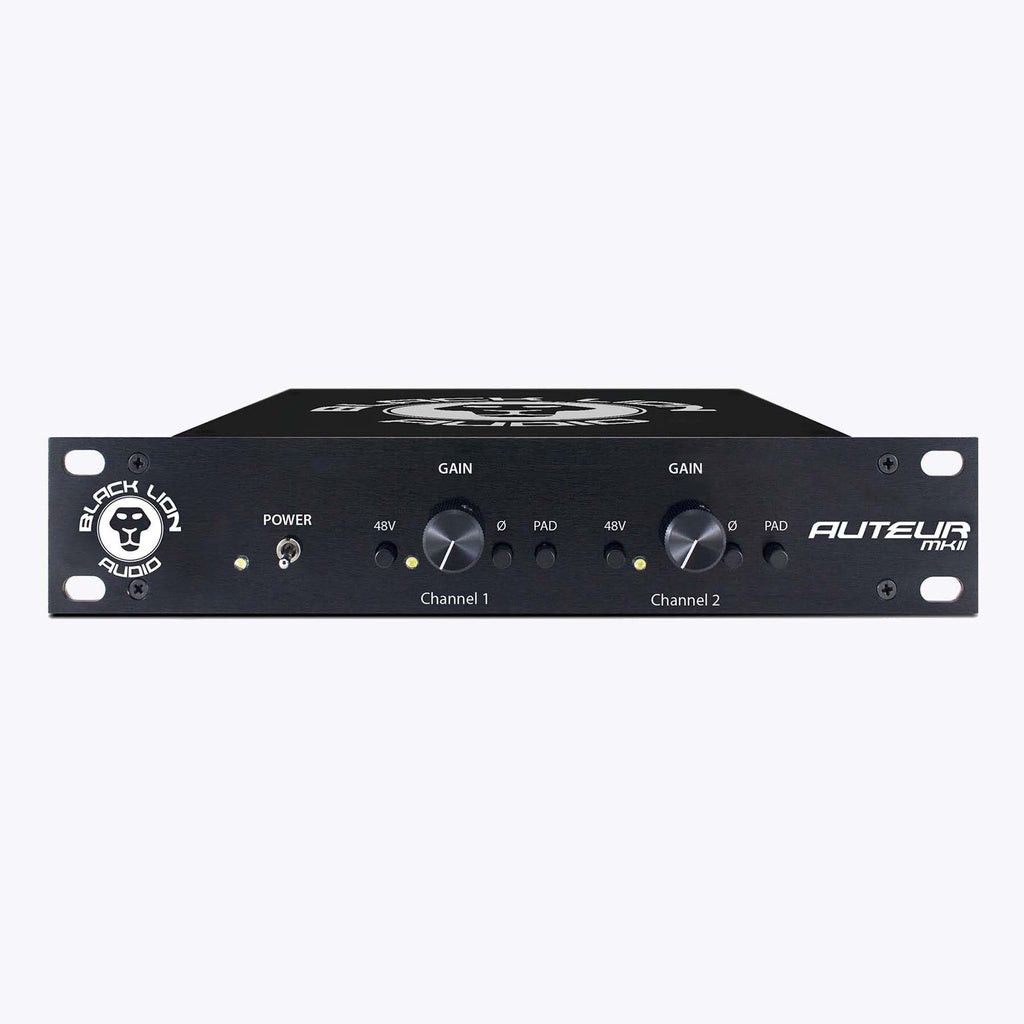

New Black Lion Audio Auteur MKII Microphone Preamplifier, Half Rack Size

The Auteur MKII is a two channel preamp that features high-speed input stages that capture lots of detail and nuance, and transformer-coupled output stages that impart a nice touch of vintage vibe. It also features phantom power, phase, and a 10dB pad. It’s housed in a 1U, ½ rack chassis, and can be linked together with a second ½ rack unit by using the included connector plate.

The Auteur MKII has a revamped gain stage that results in higher gain, lower noise, lower distortion, and a more extended frequency response than the original design. Use it on drums for rotund results. Throw it on vocals for a silky polish. Hear guitars soar like never before. No matter what you use it on, the Auteur MKII will do the job like a pro!

Features

• Dual Channel
• Ultra High-Speed Input Stages
• Edcor Output Transformers
• 65dB Gain
• Extended Frequency Response
• Low Distortion & Noise
• Phantom Power
• Phase Switch
• 10dBu Pad

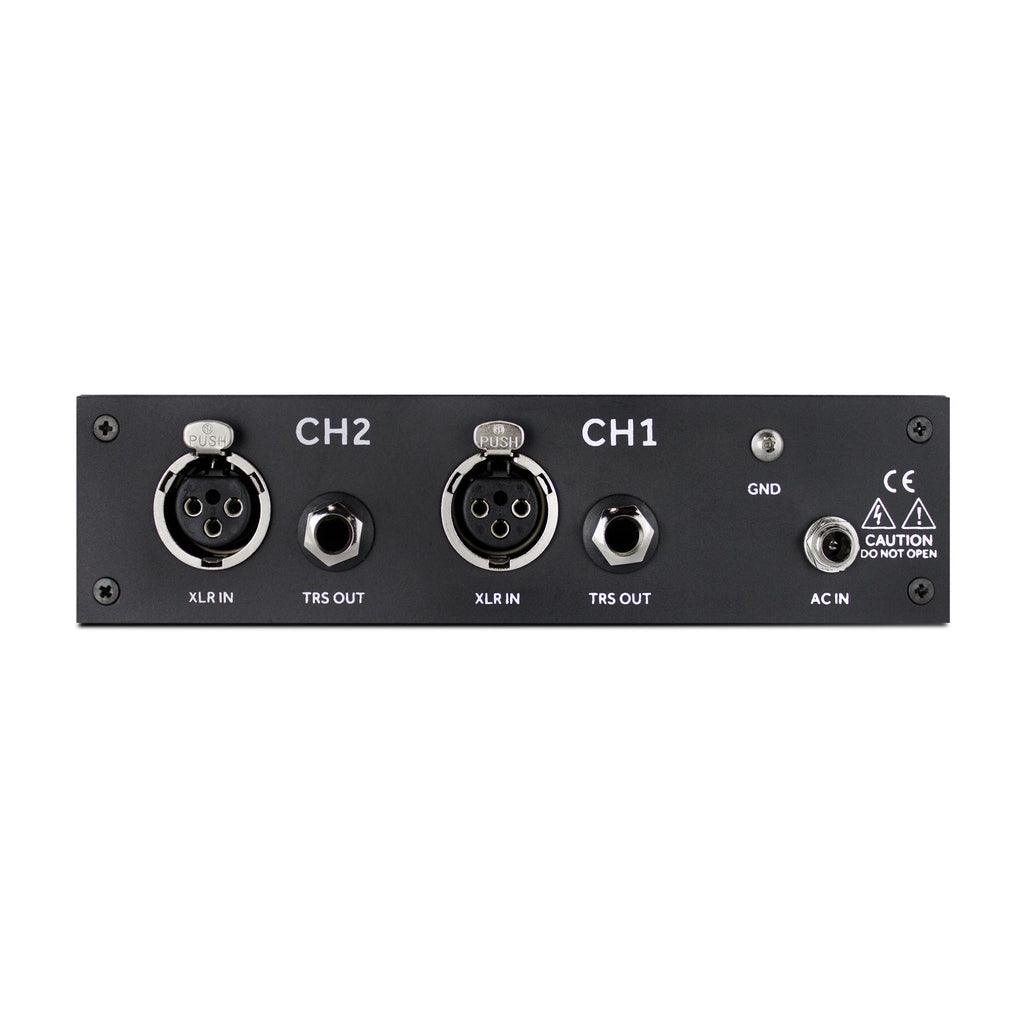

• XLR Microphone Input
• TRS Line Output (balanced)

• Mic Section
• Max Microphone Input Level: +1dBu
• Input Impedance: 6000Ω
• Pad: 10dBu
• Gain (no pad): +14dB to +65dB
• Equivalent Input Noise (noise floor): -108dBu
• THD+N (@ +4dBu output):
• .0033% @ +10dBu Gain
• .0054% @ +24dBu Gain
• .0112% @ +32dBu Gain
• .027% @ +40dBu Gain
• .078% @ +50dBu Gain
• .21% @ +62dBu Gain
• Bandwidth (1kHz, 150Ω source, unweighted): 10Hz to 30kHz
• Output Section
• Max Output Level: +26dBu
• Output Impedance: 600Ω
• Power Supply: 24VAC, 500mA External Supply
• Product Dimensions: 9.5” x 6.5” x 1.75”
• Product Weight: 3.2 lbs
