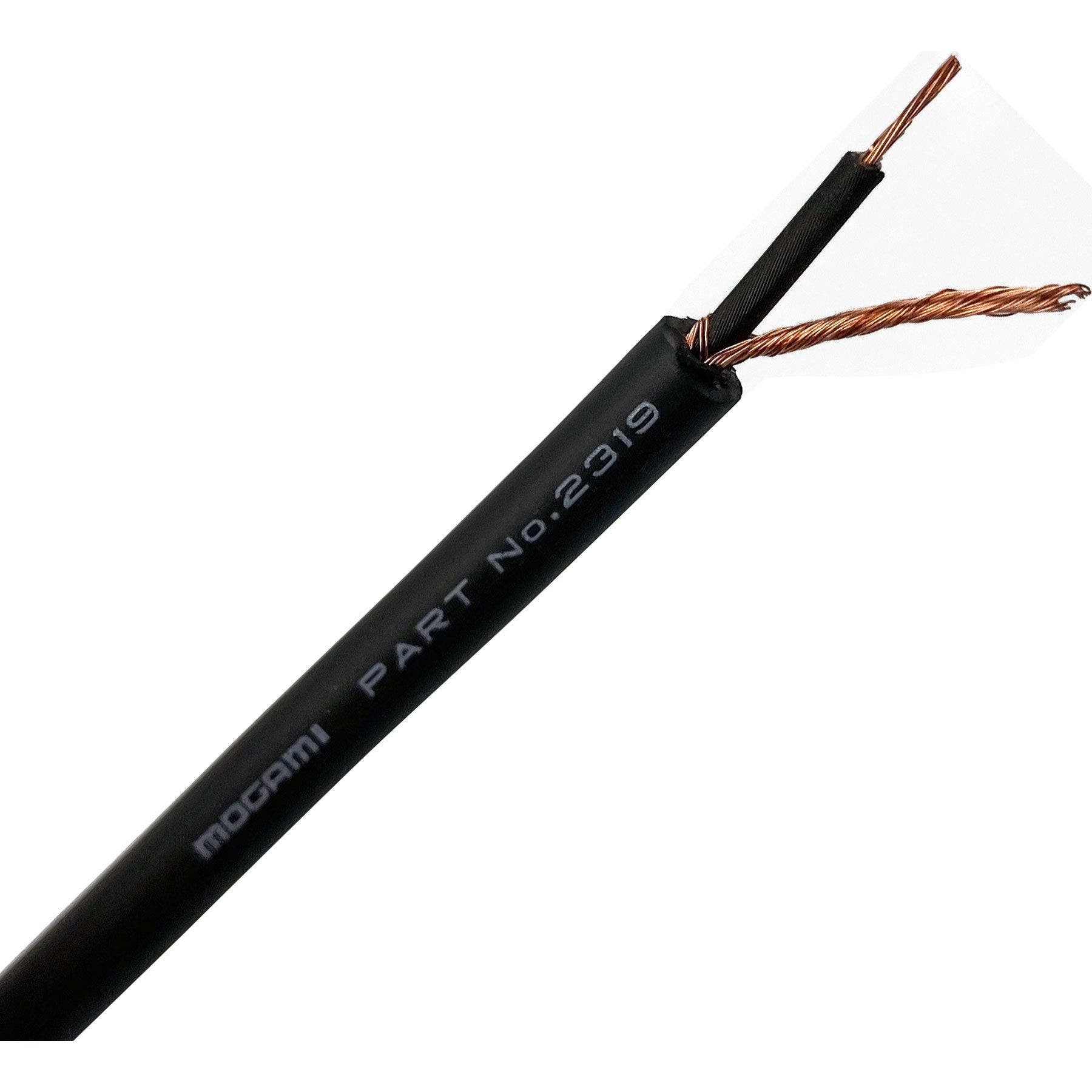

New 20 Feet of Mogami W2319 Miniature #23AWG Diameter Cable for Guitar Effects Pedalboards

Most musical instrument sound pick-ups, for example those in electric guitars, are comprised of high impedance circuits driven mainly by voltage, with very little electrical current flow. That is why handling noise (microphonics) can be a problem for guitar cables. Microphonic noise is caused by the minute voltage generated when a cable is flexed, stepped on, etc. Guitar cables must be designed to prevent this, so a conductive PVC layer is placed under the shield conductor to drain away this voltage. Note: This conductive layer must be stripped back when wiring, or a partial short will result.

General

• Conductor
• Details: 12/0.18TA
• Size(mm²): 0.305mm² (#23AWG)
• Insulation
• Ov. Dia.(mm): 1.6Ø (0.063")
• Material: PE
• Color: Clear
• Sub-Shield
• Ov. Dia.(mm): 1.8Ø (0.071")
• Material: Conductive PVC (Carbon PVC)
• Color: Black
• Main-Shield
• Served-Shield: Approx. 38/0.16TA
• Jacket
• Ov. Dia.(mm): 5.0Ø (0.197")
• Material: PVC
• Color: Black
• Roll Sizes: 100m (328Ft) (656Ft)
• Weight per 100m (328Ft) roll: 3.5Kg



ELECTRICAL & MECHANICAL CHARACTERISTICS

• DC Resistance at 20°C
• Inner Conductor: 0.064Ω/m(0.020W/Ft)
• Shield Conductor: 0.026Ω/m(0.0079Ω/Ft)
• Capacitance at 1kHz, 20°C: 155pF/m (47.3pF/Ft)
• Inductance: 0.3µH/m (0.092µH/Ft)
• Electrostatic Noize*: 0.13mV Max.
• Electromagnetic Noise At 10kHz*: 0.07mV Max.
• Microphonics*: 0.3mV Max
• Voltage Breakdown: Must withstand at DC 500V/15sec.
• Insulation Resistance: 100000 MΩ × m Min. at DC 500V , 20°C
• Flex Life: 11,000 cyles
• Tensile Strength (26°C, 65%RH): 303 N
• Emigration: Non-emigrant to ABS resin
• Applicable Temperature: -20°C‾ +60°C(-4°F‾ +140°F)
