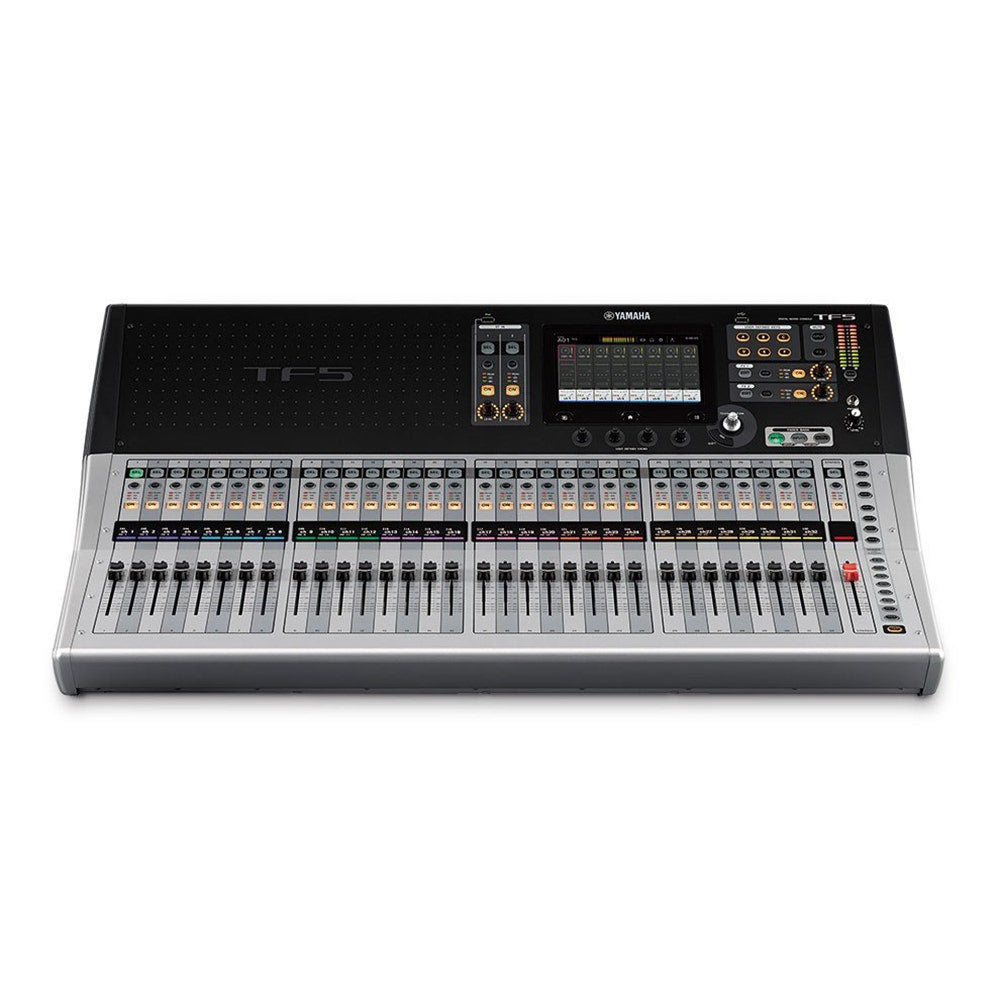

New Yamaha TF5 48-Channel Digital Mixer w/ TouchFlow Operation (C-STOCK)

High input capacity and fader count makes this powerful console ideal for larger applications.

• 33 motor faders (32 channels + 1 master)
• 48 input mixing channels (40 mono + 2 stereo + 2 return)
• 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses
• 8 DCA groups with Roll-out
• 32 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
• 16 analog XLR outputs
• 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
• 1 expansion slot for NY64-D audio interface card

• Outline
• Fader Configuration: 32 + 1 (Master)
• Mixing Capacity
• Input Channels: 48 (40 mono + 2 stereo + 2 return)
• Aux Buses: 20 (8 mono + 6 stereo)`
• Stereo Buses: 1
• Sub Buses: 1
• Input channel functions: 8 DCA Groups
• I/O
• Inputs: 32 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
• Outputs: 16 (XLR)
• Expansion slots: 1
• On-board processors
• DSP: 8 Effects + 10 GEQ
• USB: 34x34 USB Audio Interface, 2-track recording via USB Storage Device
• General specifications
• Sampling frequency rate
• Internal: 48 kHz
• Signal delay: Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
• Fader: 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
• Total harmonic distortion: Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
• Frequency response: +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
• Dynamic range: 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
• Hum & noise level
• Equivalent input noise: –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
• Residual output noise: –85 dBu, ST master off (Measured with an A-Weight filter)
• Crosstalk: –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
• Power requirements: 100–240 V 50/60 Hz
• Power consumption: 120 W
• Dimensions
• W: 866 mm (34.1in)
• H: 225 mm (8.9in)
• D: 599 mm (23.6in)
• Net weight: 20.0 kg (44.1lb)
• Accessories: Quick Guide, Power Cord, CUBASE AI download information
• Options: Expansion Card, Foot Switch (FC5)
• Others: Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C
