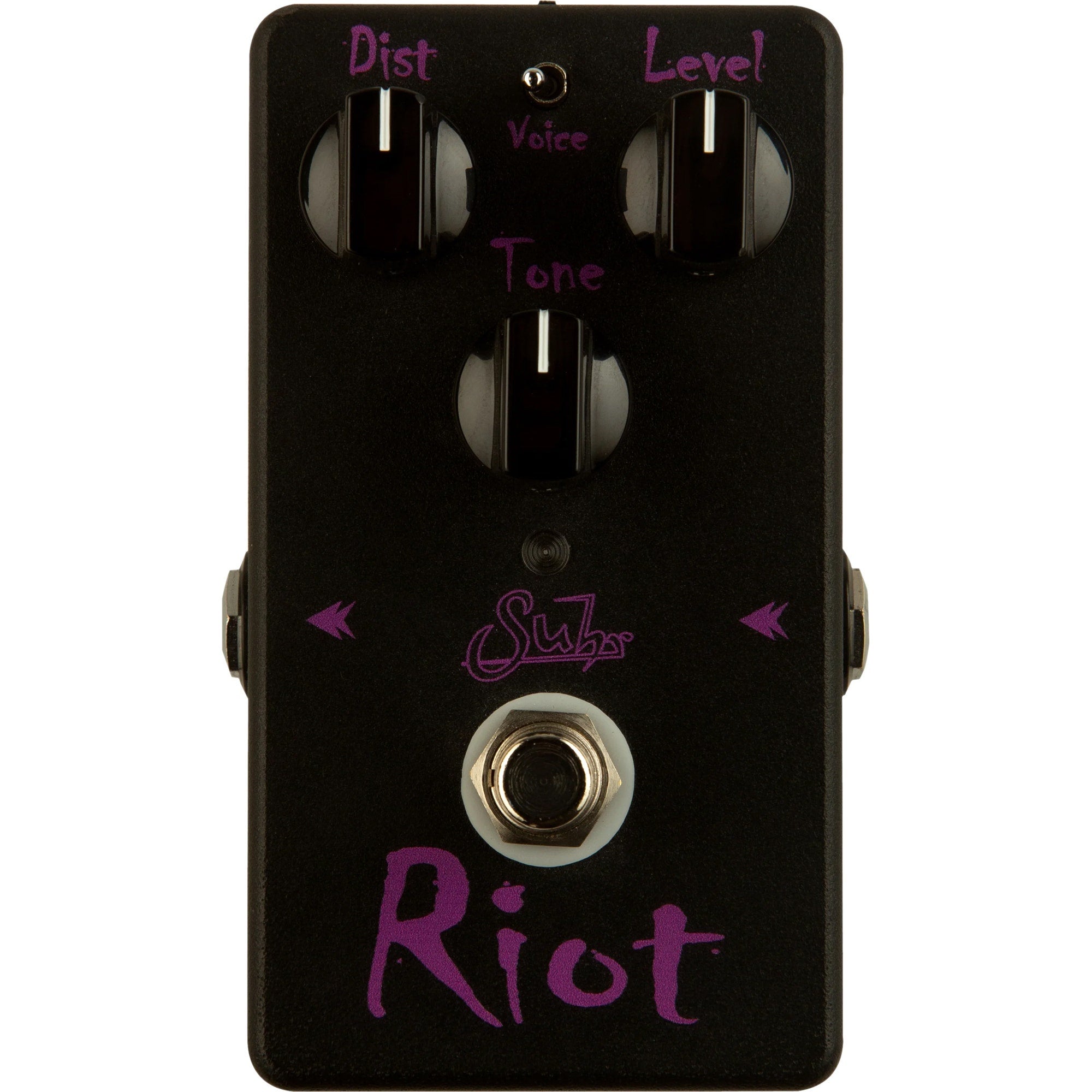

New Suhr Riot Distortion Guitar Effect Pedal, Black Edition

Riot is a versatile high-gain distortion pedal with the sonic characteristics and touch sensitivity of a high-quality 100-watt tube amplifier.

OUR ORIGINAL DISTORTION

Riot will transform a clean amp into an authoritative rock tone that inspires all of your favorite riffs.

CONTROLS

• DIST: Adjusts the amount of gain added to your tone taking you from classic crunch to high-gain heaven.
• LEVEL: Adjusts the output of the pedal. Riot provides enough level to push the front end of any tube amp into natural overdrive.
• TONE: Shapes the overall tonal response of the pedal from smooth and warm to cutting lead tones.

VOICING SWITCH

• Left: Produces a natural organic tone that responds dynamically to your guitar's volume control.
• Middle: Puts you into high gain territory with a solid midrange with a tight bottom end.
• Right: Produces a vintage high gain response with excellent definition.

UNIQUE FEATURES

• True Bypass: Riot is true-bypass via a relay. This function allows for the remote switching and the battery monitor feature. The relay produces less popping when switching the pedal on and off.
• FX Link: The FX Link connector allows the pedal’s switching function to be controlled from an external switch pedalboard loop switcher or any other custom interface. FX Link also provides the ability to power up in the On/Off state.
• Low Battery Monitor: Riot incorporates a unique battery monitor that alerts the user to low battery conditions. In addition, the battery monitor will automatically switch the pedal to True Bypass if the battery voltage is too low for the circuitry to correctly operate.

• INPUT IMPEDANCE: 1M ohm
• OUTPUT IMPEDANCE: 600 ohm
• POWER CONNECTOR: 9Vdc center negative 2.1mm x 5.5mm
• OPERATING VOLTAGE: 4V to 18V (nominal 9V)
• MAXIMUM VOLTAGE: 20Vdc
• REVERSE BATTERY PROTECTION: Yes
• OVER VOLTAGE PROTECTION: Yes
• CURRENT CONSUMPTION: 8mA
• ESTIMATED BATTERY LIFE: 75 – 100 hours of continuous use
• DIMENSIONS: 2.5”(W) x 4.5”(D) x 1.25”(H)
• WEIGHT: 0.6lb
• FX LINK CONNECTOR: 1/8" Mono
• FX LINK MAX VOLTAGE: 3.3Vdc
