New Powerwerks PW4EX 4-Channel Extension Mixer
Description

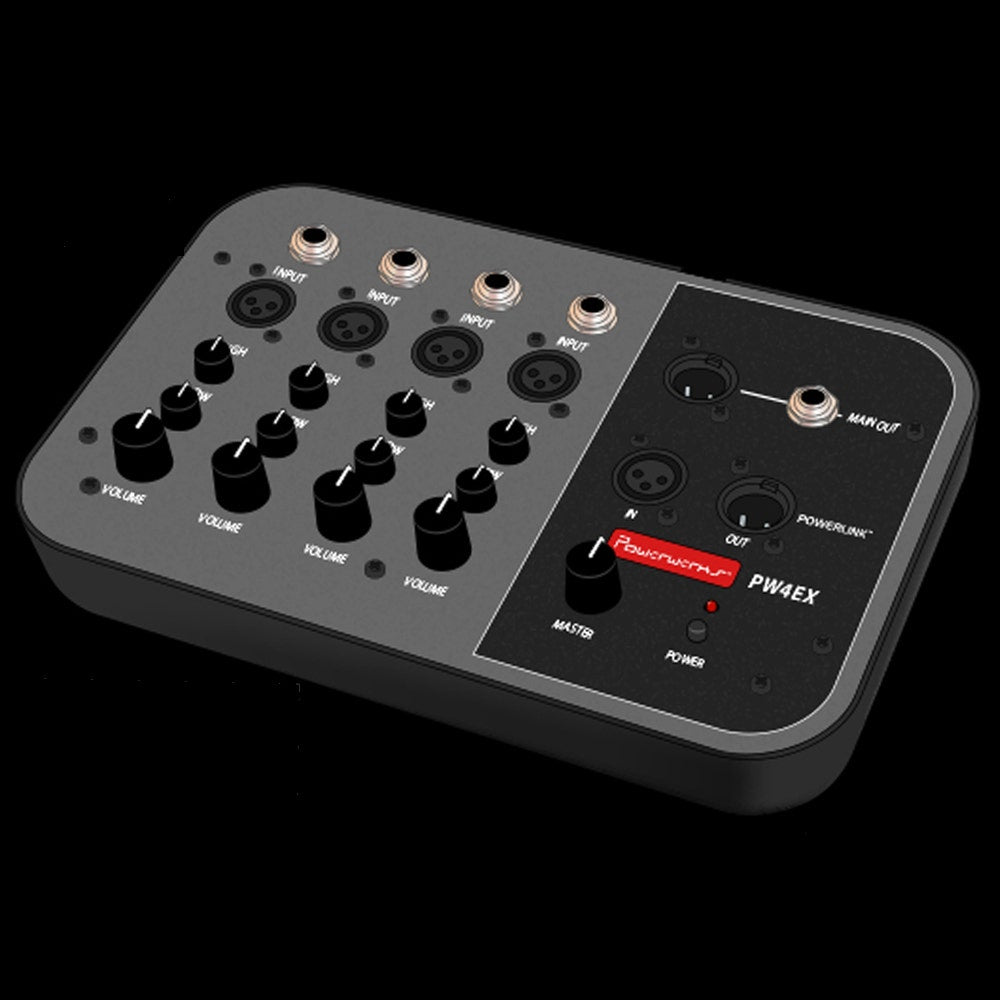

Powerwerks PW4EX 4-Channel Extension Mixer
Powerwerks PW4EX is a 4 Channel MIC/LINE mixer with a MONO output. The PW4EX Model draws on decades of electronic design and manufacturing experience at Powerwerks. This model was built from the ground up to offer useful features, high signal-to-noise ratio, and reliable performance
Powerwerks PW4EX is a 4 Channel MIC/LINE mixer with a MONO output that gives you more channels with Volume, Bass and Treble EQ controls to make any system expand. Use POWERLINK for blending in even more instruments, microphones and program music from other POWERLINK equipped models.
The PW4EX works as a standalone mixer too. Use the MAIN XLR or ¼” OUT to send a “sub mix” to any powered speaker or input of another mixer. (4 drum mics for example). The PW4EX gives you the extra channels you need for a perfect mix.
Features
- 4 Indiviual Inputs to MONO Out
- Phantom Power on Each XLR Input
- Compact Size- Only 2 lbs!
- Rugged, Gig-Ready Design
- POWERLINK IN/OUT for Expanding Your Powerwerks Tower System
Specifications
|
Accepted Inputs
|
4 Mic XLR Balanced, Line Level 1/4" Unbalanced, Nominal line level of -10 dBv
|
|
Frequency Response
|
48 Hz to 23 kHz, Channel Volume knob set at 3/4 scale
|
|
Signal to Noise Ratio
|
74 dB, All controls set at maximum, output at maximum unclipped level, bandwidth 22kHz
|
|
System Gain @ 1kHz
|
21 dB, Line input to master output
|
|
38 dB, Mic input to master output
|
|
|
Channel EQ (high, low)
|
Low boost/cut: +/- 9.8 dB at 63Hz
|
|
High boost/cut: +/- 7.0 dB at 8.0 kHz
|
|
|
POWERLINK
|
IN: Accepts a pre-master volume signal from another PW4EX or PW50 to150 systems or PW4X6 to PW4X8BT systems
|
|
OUT: Exports a pre-master volume signal to another PW4EX or PW50 to 150 systems or PW4X6 to PW4X8BT systems
|
|
|
Phantom Power
|
17V, Available an all Mic inputs. Current limited to 5 mA
|
|
Power Requirements
|
18 VDC, Wall adapter is included
|
Specifications
| Type | Mixers |
|---|---|
| Condition | New |
| Brand | Powerwerks |
| MPN | 4EX |
| Mixer Type | Analog |
| Mixer Format | Portable |
| Mixer Channels | 4 |
| Mixer Channel Type | Mic, Line |
| Mixer Connectivity | None |
| Mixer IO | XLR, TRS |
| Mixer FX | No |
| Mixer Phantom Power | Yes |
| Mixer Scene Recall | No |
| Mixer Dynamic Range dB | 74 |
| Shipping Weight | 3.0 lb |
